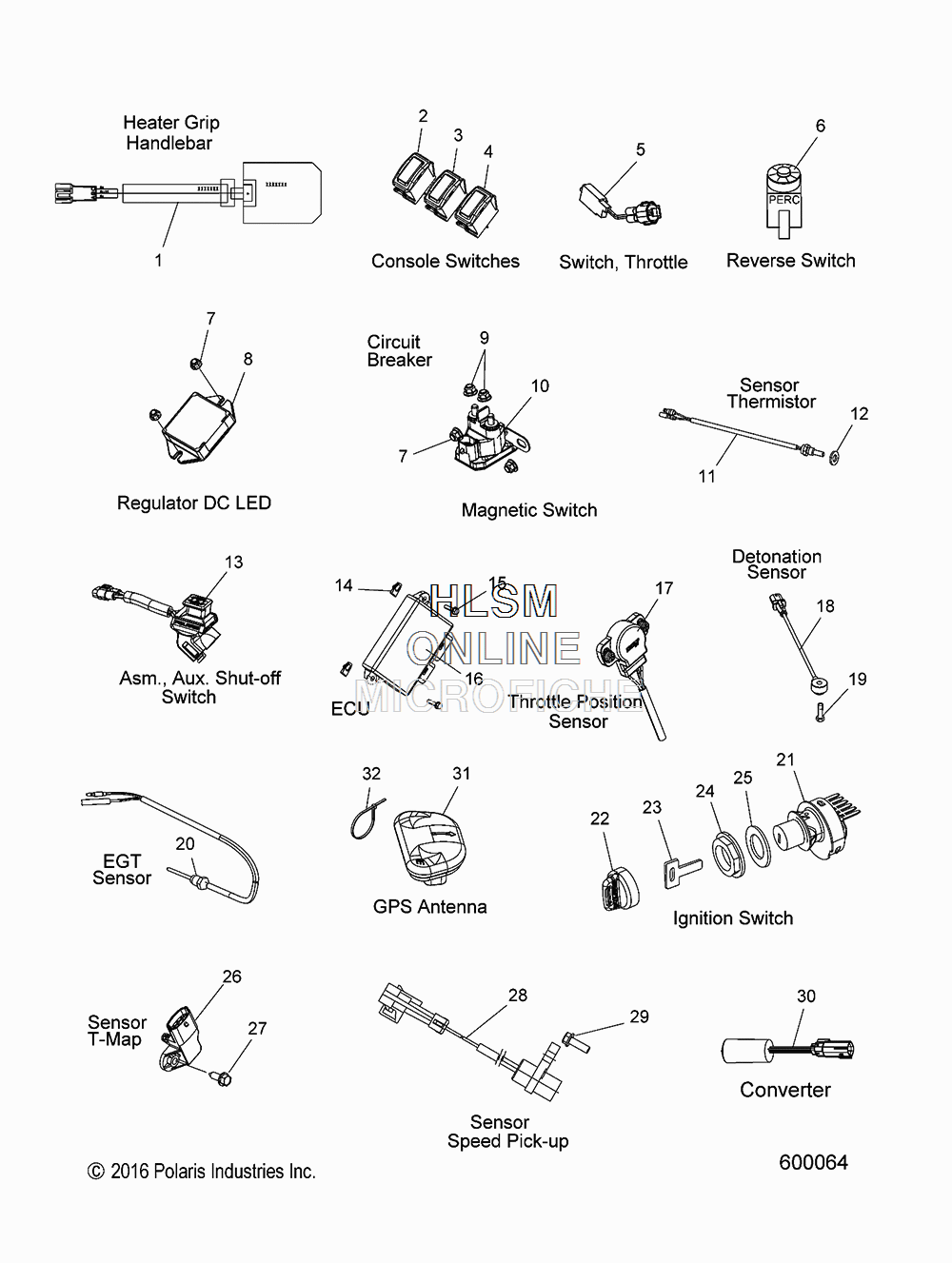

ELECTRICAL - SENSORS AND SWITCHES для Polaris 800 PRO RMK LE 155 3in [S17EFP8PS] - 2017 года выпуска`
-
№АртикулНазвание
-
12413077 GRIP HEATER, LO/HI, ALUMGRIP HEATER, LO/HI, ALUM
-
24011319 SWITCH, HAND WARMERSWITCH, HAND WARMER
-
34012090 SWITCH, MODE/SETSWITCH, MODE/SET
-
44012091 SWITCH, HEADLIGHT, HI/LOSWITCH, HEADLIGHT, HI/LO
-
54015245 SWITCH, THROTTLESWITCH, THROTTLE
-
64010874 SWITCH, E/R, MOMENTARYSWITCH, E/R, MOMENTARY
-
77547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
84015642 REGULATOR, DC LEDREGULATOR, DC LED
-
97547339 NUT, FLANGE, NYLOCNUT, FLANGE, NYLOC
-
104014655 SOLENOID, STARTER, SEALEDSOLENOID, STARTER, SEALED
-
114012115 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
127556357 WASHER, COPPERWASHER, COPPER
-
132010427 ASM., SWITCH, AUX. SHUTOFF, PRO T MNT (INCL. MOUNT)ASM., SWITCH, AUX. SHUTOFF, PRO T MNT (INCL. MOUNT)
-
134015321 SWITCH-AUX SHUT-OFF DC-SDISWITCH-AUX SHUT-OFF DC-SDI
-
147547366 CLIP,"U"CLIP,"U"
-
157516823 SCREWSCREW
-
164014919 ECU, DC/SDI LE, AS, 32MHZECU, DC/SDI LE, AS, 32MHZ
-
173131751 SENSOR, THROTTLE POSITIONSENSOR, THROTTLE POSITION
-
182410369 SENSOR, DETONATIONSENSOR, DETONATION
-
197517262 SCREWSCREW
-
204013133 SENSOR, EGTSENSOR, EGT
-
214012165 SWITCH, KEY, 3 POSITION (INCL. 22-25)SWITCH, KEY, 3 POSITION (INCL. 22-25)
-
225433534 COVER, KEYCOVER, KEY
-
234010278 KEY, BLANK (SEE NOTE)KEY, BLANK (SEE NOTE)
-
245433733 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
-
257556327 WASHER, NYLONWASHER, NYLON
-
262410422 SENSOR, T-MAPSENSOR, T-MAP
-
277512098 SCREWSCREW
-
282412968 SENSOR, SPEED PICK-UP, LGSENSOR, SPEED PICK-UP, LG
-
297519236 SCREWSCREW
-
304014356 CONVERTER, PWM TO ANALOGCONVERTER, PWM TO ANALOG
-
314014811 ANTENNNA, GPS, RECEIVER (SNOW CHECK F & O)ANTENNNA, GPS, RECEIVER (SNOW CHECK F & O)
-
327080138 CABLE TIECABLE TIE
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECAL- SNOW CHECK BLK/PINK- BLK/RED
- DECAL- SNOW CHECK RED- BLUE- ORANGE- BLK/TITANIUM
- DECAL- SNOW CHECK TDS- TITANIUM/LIME- TITANIUM/ORANGE
- DECAL- SNOW CHECK WHITE
- DECALS
- DRIVE TRAIN - QUICKDRIVE BELT SYSTEM
- ELECTRICAL - IGNITION SYSTEM
- • ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVE ASM.
- FENDERS W/ NOSEPAN ASM.
- FUEL TANK
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- MULTI-FUNCTION GAUGE
- OIL BOTTLE ASSEMBLY
- OIL PUMP ASSEMBLY
- OPTIONS - SADDLEBAGS
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT ASSEMBLY
- SIDE PANELS
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- SUSPENSION - FRONT SHOCK TRACK
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - IFS SHOCK W/RESERVOIR
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SWAYBAR
- SUSPENSION- SHOCK- REAR TRACK- W/RES.
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOLS- BELT HOLDER- TOOLS- AND OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
