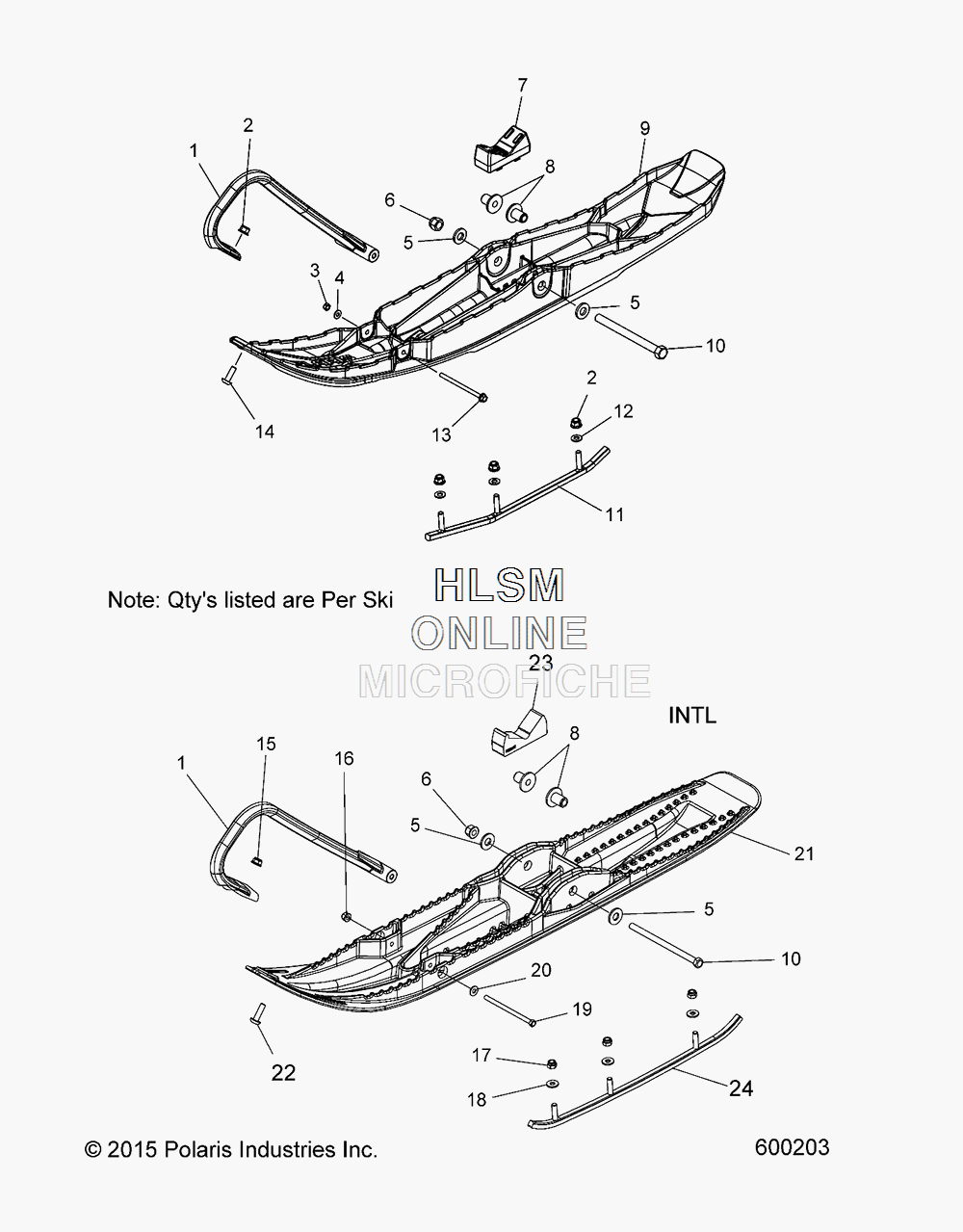

SKI ASSEMBLY для Polaris 600 SWITCHBACK ASSAULT 144 SNOWCHECK SELECT [S17EEC6PS] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5435681-293 TOE, PLASTIC SKI, (INDY RED)
    TOE, PLASTIC SKI, (INDY RED)
  • 1
    5435681-070 TOE, PLASTIC SKI, (BLACK)
    TOE, PLASTIC SKI, (BLACK)
  • 1
    5435681-647 TOE, PLASTIC SKI, (ORANGE BURST)
    TOE, PLASTIC SKI, (ORANGE BURST)
  • 1
    5435681-689 TOE, PLASTIC SKI, (VELOCITY BLUE)
    TOE, PLASTIC SKI, (VELOCITY BLUE)
  • 2
    7547332 NUT, FLANGE, NYLOK, M8
    NUT, FLANGE, NYLOK, M8
  • 3
    7547650 NUT, FLANGE, NYLOK, M6
    NUT, FLANGE, NYLOK, M6
  • 4
    7556737 WASHER, FLAT
    WASHER, FLAT
  • 5
    7556130 WASHER, BELLE
    WASHER, BELLE
  • 6
    7547423 NUT, FLANGE NYLOK, M10
    NUT, FLANGE NYLOK, M10
  • 7
    5414375 STOP, SKI RUBBER
    STOP, SKI RUBBER
  • 8
    5136908 BUSHING, PLASTIC SKI
    BUSHING, PLASTIC SKI
  • 9
    1823916-070 ASM., SKI, SVC, (BLACK)
    ASM., SKI, SVC, (BLACK)
  • 10
    7519098 SCREW, M10
    SCREW, M10
  • 11
    2879025 KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)
    KIT, SKAG, 8MM X 4IN, 60 DEGREE X 3 STUD (PAIR)
  • 12
    7556524 WASHER
    WASHER
  • 13
    7520233 SCREW, M6
    SCREW, M6
  • 14
    7518906 SCREW, M8
    SCREW, M8
  • 15
    7542343 NUT, FLANGED NYLOK, 5/16 (INTL)
    NUT, FLANGED NYLOK, 5/16 (INTL)
  • 16
    7542153 NUT, NYLOK, FLANGED, 1/4 (INTL)
    NUT, NYLOK, FLANGED, 1/4 (INTL)
  • 17
    7542324 NUT, NYLOK, 5/16 (INTL)
    NUT, NYLOK, 5/16 (INTL)
  • 18
    7555843 WASHER (INTL)
    WASHER (INTL)
  • 19
    7518655 SCREW, 1/4 (INTL)
    SCREW, 1/4 (INTL)
  • 20
    7558301 WASHER (INTL)
    WASHER (INTL)
  • 21
    1823660-070 ASM., SKI, WIDE, SVC, (BLACK) (INTL)
    ASM., SKI, WIDE, SVC, (BLACK) (INTL)
  • 22
    7518070 SCREW, 5/16 (INTL)
    SCREW, 5/16 (INTL)
  • 23
    5412794 STOP, SKI RUBBER (INTL)
    STOP, SKI RUBBER (INTL)
  • 24
    2875723 KIT, SKAG, 3IN, 60 DEGREE (PAIR)(INTL)
    KIT, SKAG, 3IN, 60 DEGREE (PAIR)(INTL)
