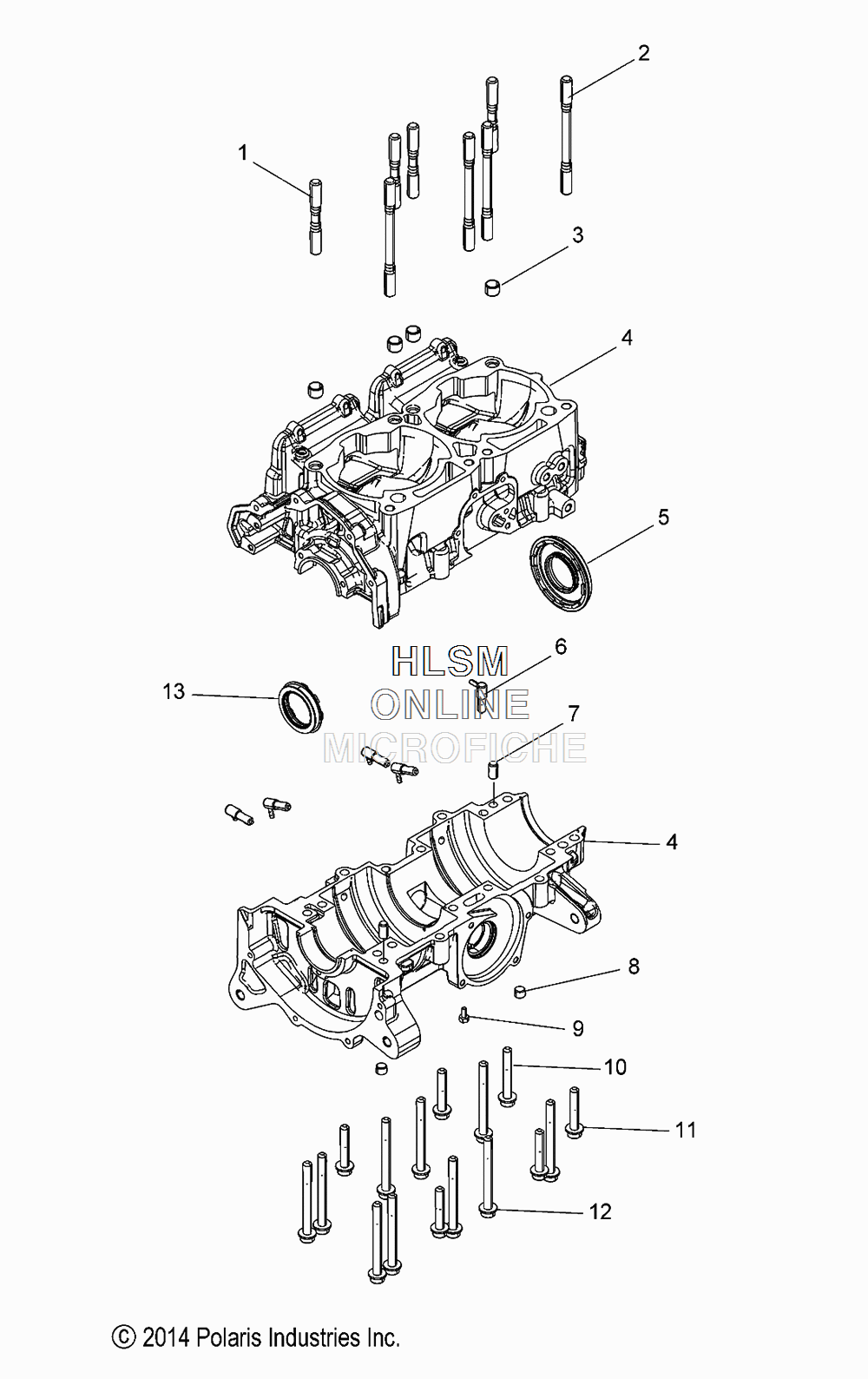

CRANKCASE ASSEMBLY для Polaris 600 RUSH XCR (INDY RED) [S17DCL6PSA/PSL] - 2017 года выпуска
-
№АртикулНазвание
-
15140058 STUD, CYLINDER, 130MMSTUD, CYLINDER, 130MM
-
25140059 STUD, CYLINDER, 81MMSTUD, CYLINDER, 81MM
-
37663008 DOWEL, HOLLOWDOWEL, HOLLOW
-
42205650 KIT, CRANKCASE (INCL. 1,2,6-12)KIT, CRANKCASE (INCL. 1,2,6-12)
-
55415026 SEAL, FLANGESEAL, FLANGE
-
67051020 VALVE, CHECKVALVE, CHECK
-
77052337 PLUGPLUG
-
87663001 PIN, DOWELPIN, DOWEL
-
97517577 SCREWSCREW
-
107517785 SCREW, TXFH M8X55SCREW, TXFH M8X55
-
117517786 SCREW, SHFL M8X45SCREW, SHFL M8X45
-
127517784 SCREW, SHFL M8X80SCREW, SHFL M8X80
-
135414096 SEAL, FLANGED, MAGSEAL, FLANGED, MAG
