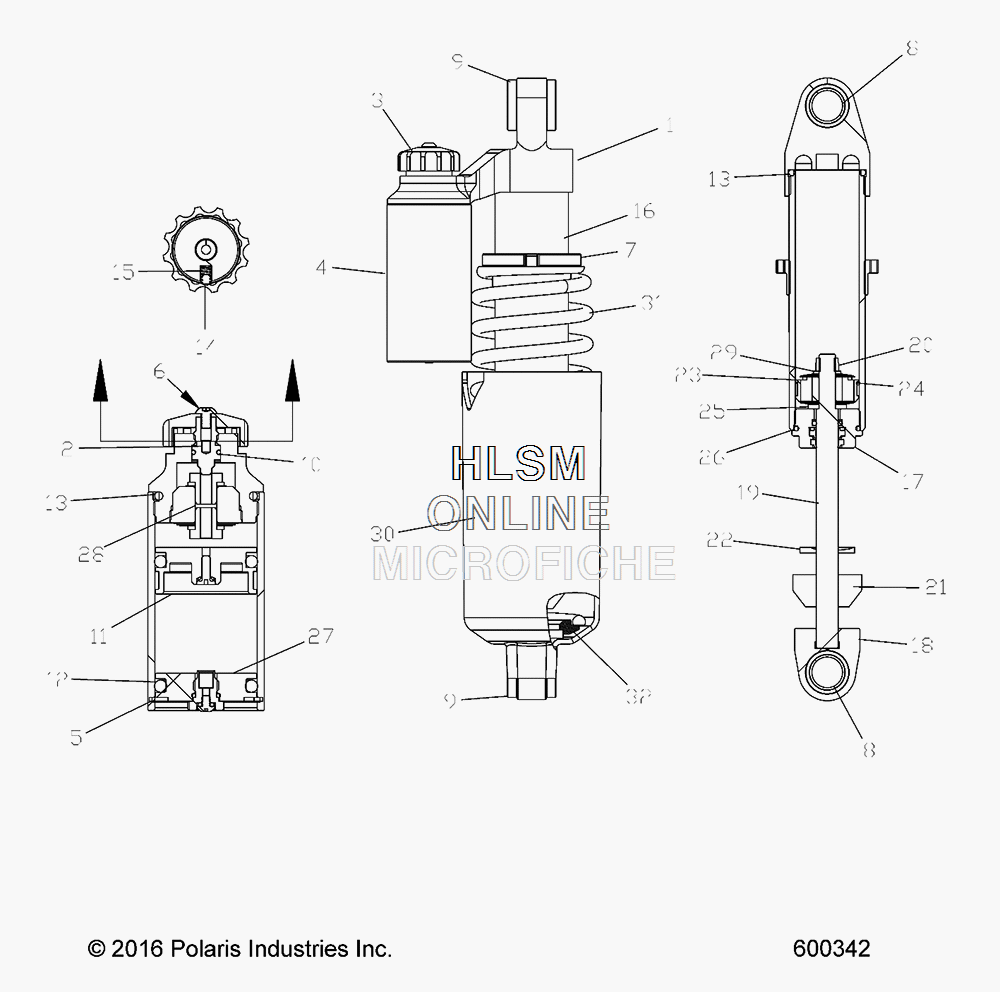

SUSPENSION - FRONT SHOCK TRACK (CLEAR) для Polaris 600 RUSH PRO-S (BLACK PEARL) [S17DCH6PSA] - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    7044574 SHOCK, FT, CLEAR, WALKER EVANS
    SHOCK, FT, CLEAR, WALKER EVANS
  • 2
    1800352 STUD, CLICKER
    STUD, CLICKER
  • 3
    1800460 CLICKER KNOB, (BLACK)
    CLICKER KNOB, (BLACK)
  • 4
    1800523 BODY, RESERVOIR, CLR
    BODY, RESERVOIR, CLR
  • 5
    1800159 SNAP RING
    SNAP RING
  • 6
    1800357 SCREW, BTN HD
    SCREW, BTN HD
  • 7
    1800046 RETAINER, SPRING NUT
    RETAINER, SPRING NUT
  • 8
    1800405 SLEEVE
    SLEEVE
  • 9
    1800406 BUSHING
    BUSHING
  • 10
    1800501 O-RING 2-012
    O-RING 2-012
  • 11
    1800739 ASM., IFP PISTON
    ASM., IFP PISTON
  • 12
    1800184 O-RING 2-324
    O-RING 2-324
  • 12
    5261865 BRKT-SEAT GROMMET
    BRKT-SEAT GROMMET
  • 13
    1800030 O-RING 2-222
    O-RING 2-222
  • 14
    1800127 BALL, DETENT
    BALL, DETENT
  • 15
    1800128 SPRING, DETENT
    SPRING, DETENT
  • 16
    1800787 BODY, FT, 5.96L, CLR
    BODY, FT, 5.96L, CLR
  • 17
    1800788 ASM., SEAL HEAD
    ASM., SEAL HEAD
  • 18
    1800408 LOOP, SHAFT
    LOOP, SHAFT
  • 19
    1800789 SHAFT, .50X6.73L
    SHAFT, .50X6.73L
  • 20
    1800031 NUT, CRIMP
    NUT, CRIMP
  • 21
    1800649 BUMP STOP
    BUMP STOP
  • 22
    1800790 SCRAPER, W/GRVS, .50 SHAFT
    SCRAPER, W/GRVS, .50 SHAFT
  • 23
    1800001 PISTON, CONVEX
    PISTON, CONVEX
  • 24
    1800297 WEAR BAND
    WEAR BAND
  • 25
    1800204 WASHER
    WASHER
  • 26
    1800027 O-RING 2-125
    O-RING 2-125
  • 27
    1800740 ASM., END CAP, CLR
    ASM., END CAP, CLR
  • 28
    1800791 ASM., CLICKER PISTON
    ASM., CLICKER PISTON
  • 29
    1800050 WASHER
    WASHER
  • 30
    5452841 SHIELD, SHOCK
    SHIELD, SHOCK
  • 31
    7043957-458 SPRING, COMP., 280#, (MATTE BLACK)
    SPRING, COMP., 280#, (MATTE BLACK)
  • 32
    5020618 RETAINER, SPRING, SLOTTED
    RETAINER, SPRING, SLOTTED
