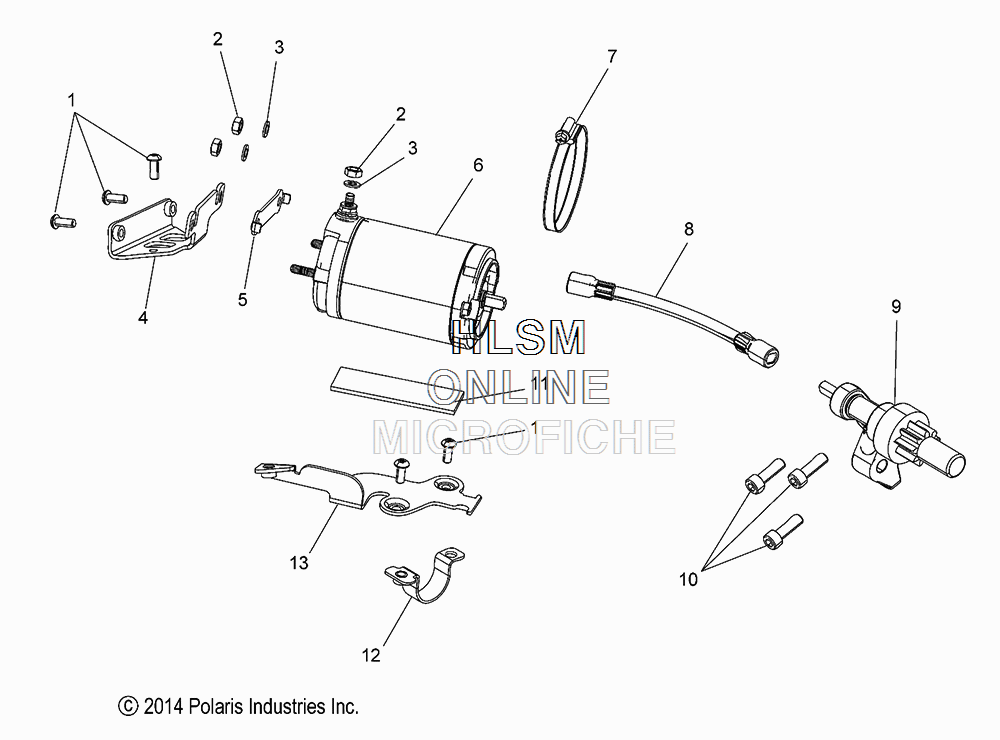

STARTING MOTOR для Polaris 600 RMK 144 ES (INDY RED) [EEG6PSL] - 2017 года выпуска`
-
№АртикулНазвание
-
17518656 BOLTBOLT
-
27542105 NUTNUT
-
37552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
41020244 BRACKET, ELECTRIC START/CLIPBRACKET, ELECTRIC START/CLIP
-
55259426 WASHER, ELECTRIC STARTWASHER, ELECTRIC START
-
64012729 MOTOR, STARTERMOTOR, STARTER
-
77081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
86230404 SHAFT, FLEX, STARTERSHAFT, FLEX, STARTER
-
91204372 ASM., PINION/BRACKET [INCL. SPRING]ASM., PINION/BRACKET [INCL. SPRING]
-
97043742 SPRING, BENDIXSPRING, BENDIX
-
107518699 SCREWSCREW
-
115810947 FOAM, SEALFOAM, SEAL
-
121018033 ASM., BRACKET, ELECTRIC START/UCA TUBE, LOWERASM., BRACKET, ELECTRIC START/UCA TUBE, LOWER
-
131020243 BRACKET, ELECTRIC START/UCA TUBE, UPPERBRACKET, ELECTRIC START/UCA TUBE, UPPER
