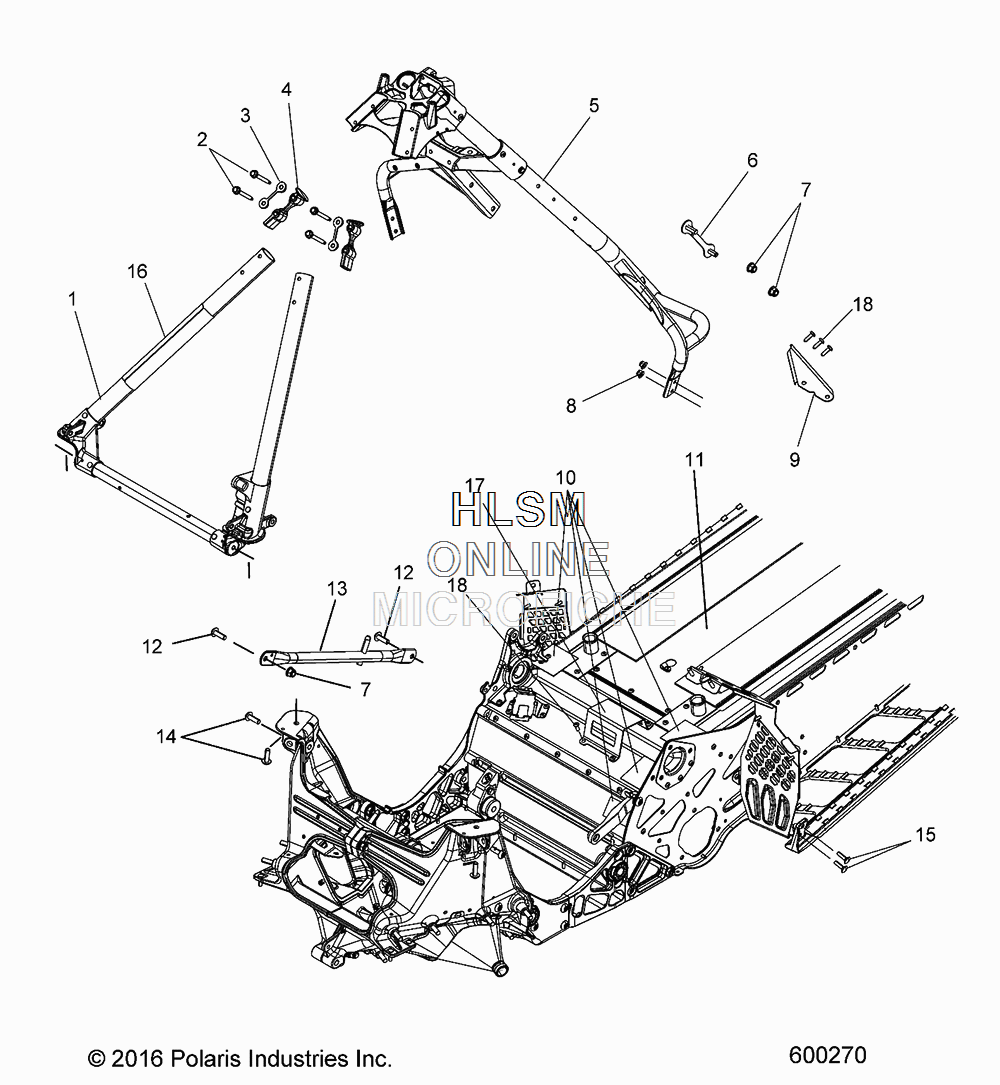

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 600 PRO RMK 155 ES (VELOCITY BLUE) [S17EFK6PSL] - 2017 года выпуска
-
№АртикулНазвание
-
11019338 ASM., FRAME, TUBE, FRONT, RMKASM., FRAME, TUBE, FRONT, RMK
-
27519967 SCREWSCREW
-
35633083 SHIM, TUBESHIM, TUBE
-
45632923 SPACER, TUBE CASTSPACER, TUBE CAST
-
51019339 ASM., FRAME, TUBULAR, REAR, RMKASM., FRAME, TUBULAR, REAR, RMK
-
61019337 ASM., STUD PLATEASM., STUD PLATE
-
77547332 NUTNUT
-
87547453 NUTNUT
-
95262012 BRKT., SUPPORT, TOE STOPBRKT., SUPPORT, TOE STOP
-
105814353 PADPAD
-
111019349-485 ASM., CHASSIS, MTN., QD 155, (MIDNIGHT BLUE) (QUICK DRIVE)(SNOW CHECK)(INCL. BULKHEAD AND QUICK DRIVE)ASM., CHASSIS, MTN., QD 155, (MIDNIGHT BLUE) (QUICK DRIVE)(SNOW CHECK)(INCL. BULKHEAD AND QUICK DRIVE)
-
111019350-458 ASM., TUNNEL, 155 SERVICE, (MBLACK) (SNOW CHECK)ASM., TUNNEL, 155 SERVICE, (MBLACK) (SNOW CHECK)
-
111019350-309 ASM., TUNNEL, 155 SERVICE, (NATURAL)ASM., TUNNEL, 155 SERVICE, (NATURAL)
-
111019349-309 ASM., CHASSIS, MTN., QD 155, (NATURAL) (QUICK DRIVE)(INCL. BULKHEAD AND QUICK DRIVE)ASM., CHASSIS, MTN., QD 155, (NATURAL) (QUICK DRIVE)(INCL. BULKHEAD AND QUICK DRIVE)
-
111019349-458 ASM., CHASSIS, MTN., QD 155, (MBLACK) (QUICK DRIVE)(SNOW CHECK)(INCL. BULKHEAD AND QUICK DRIVE)ASM., CHASSIS, MTN., QD 155, (MBLACK) (QUICK DRIVE)(SNOW CHECK)(INCL. BULKHEAD AND QUICK DRIVE)
-
111019350-485 ASM., TUNNEL, 155 SERVICE, (MIDNIGHT BLUE) (SNOW CHECK)ASM., TUNNEL, 155 SERVICE, (MIDNIGHT BLUE) (SNOW CHECK)
-
111019349-293 ASM., CHASSIS, MTN., QD 155, (RED) (QUICK DRIVE)(SNOW CHECK)(INCL. BULKHEAD AND QUICK DRIVE)ASM., CHASSIS, MTN., QD 155, (RED) (QUICK DRIVE)(SNOW CHECK)(INCL. BULKHEAD AND QUICK DRIVE)
-
111019350-293 ASM., TUNNEL, 155 SERVICE, (RED) (SNOW CHECK)ASM., TUNNEL, 155 SERVICE, (RED) (SNOW CHECK)
-
127518906 SCREWSCREW
-
131019861-067 WELD-TUBE BRACE RIGHT HAND (BLACK)WELD-TUBE BRACE RIGHT HAND (BLACK)
-
147519070 SCREWSCREW
-
157519338 SCREWSCREW
-
165814124 FOILFOIL
-
175258618 BRKT., AIR BOX SUPPPORTBRKT., AIR BOX SUPPPORT
-
187661637 RIVETRIVET
