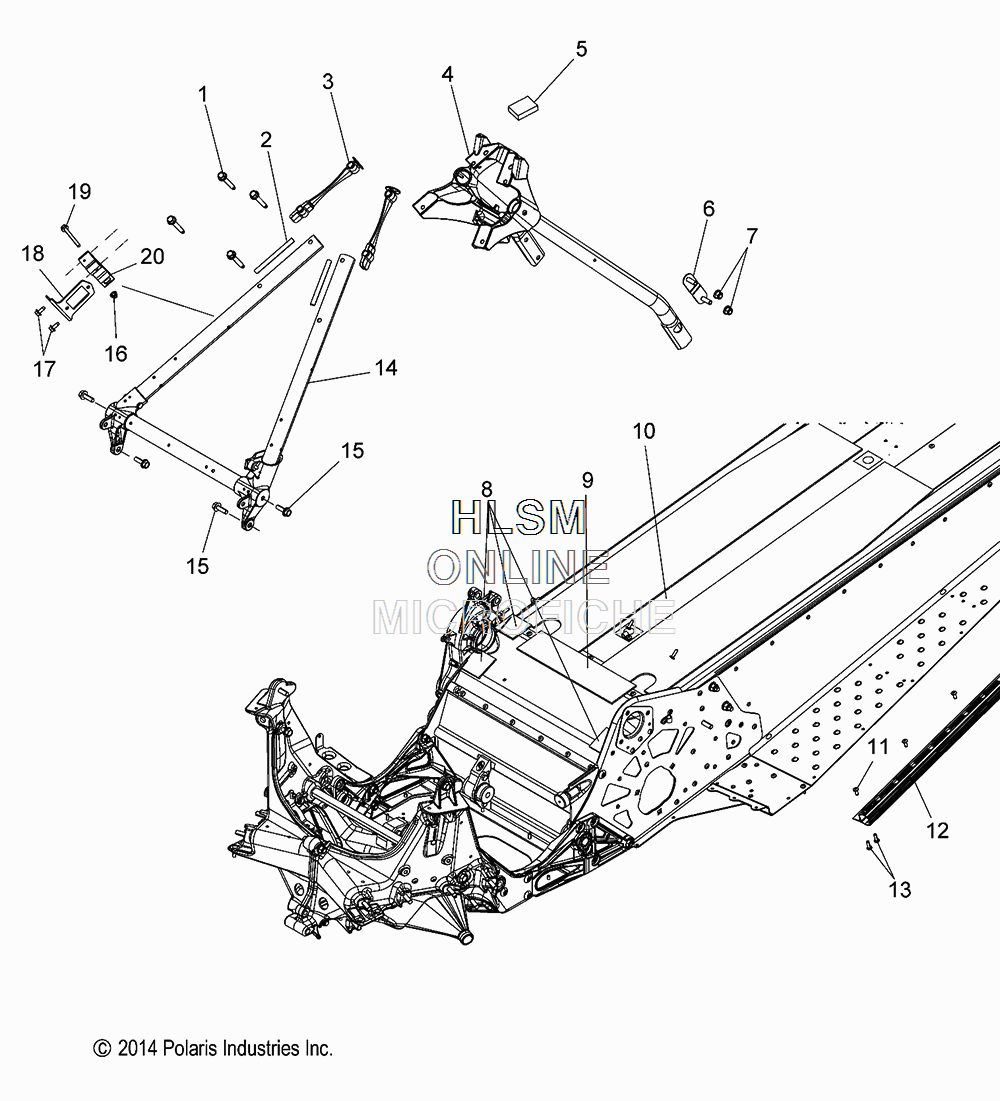

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 550 INDY VOYAGEUR 155 (WHITE LIGHTNING) [S17CFF5BSL] - 2017 года выпуска
‹-+›
-
№АртикулНазвание
-
17519245 SCREWSCREW
-
25521697-350 SEAL, BULB (BULK SVC)SEAL, BULB (BULK SVC)
-
35632200 SPACER, TUBE CASTSPACER, TUBE CAST
-
41018226 ASM., FRAME, TUBULAR, REARASM., FRAME, TUBULAR, REAR
-
55813729 PAD, RUBBERPAD, RUBBER
-
61018776 ASM., STUD PLATEASM., STUD PLATE
-
77547332 NUTNUT
-
85813593 PAD, 5X5 CMPAD, 5X5 CM
-
95813662 PAD, 6.5X25CMPAD, 6.5X25CM
-
102205953-309 KIT, MY15 CHASSIS, 155 F/C, NAT. (INCL. BULKHEAD)KIT, MY15 CHASSIS, 155 F/C, NAT. (INCL. BULKHEAD)
-
101020017-309 ASM., TUNNEL, 155, F/C, SVC, NAT.ASM., TUNNEL, 155, F/C, SVC, NAT.
-
117661973 RIVETRIVET
-
125138962 TUBE, SUPPORT, GRIPPER, RIGHT HANDTUBE, SUPPORT, GRIPPER, RIGHT HAND
-
125138961 TUBE, SUPPORT, GRIPPER, LEFT HANDTUBE, SUPPORT, GRIPPER, LEFT HAND
-
137661637 RIVETRIVET
-
141016954 ASM., FRAME, TUBULAR, FRONTASM., FRAME, TUBULAR, FRONT
-
157519243 SCREWSCREW
-
167547339 NUTNUT
-
177518513 BOLTBOLT
-
185256520 BRKT., COIL MNTBRKT., COIL MNT
-
197519171 SCREWSCREW
-
205137797 MOUNT, UPPER RESONATORMOUNT, UPPER RESONATOR
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BATTERY BOX
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- • CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY W/ HEADLIGHT
- JACKSHAFT ASSEMBLY
- NOSEPAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- RECOIL STARTER W/BLOWER HOUSING
- SEAT ASSEMBLY
- SKI ASSEMBLY
- STARTING MOTOR
- STEERING - H-BAR- STEERING POST
- STEERING - LOWER
- SUSPENSION - FRONT SHOCK TRACK (7043048)
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR ARTICULATING
- SUSPENSION - REAR SHOCK TRACK
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
