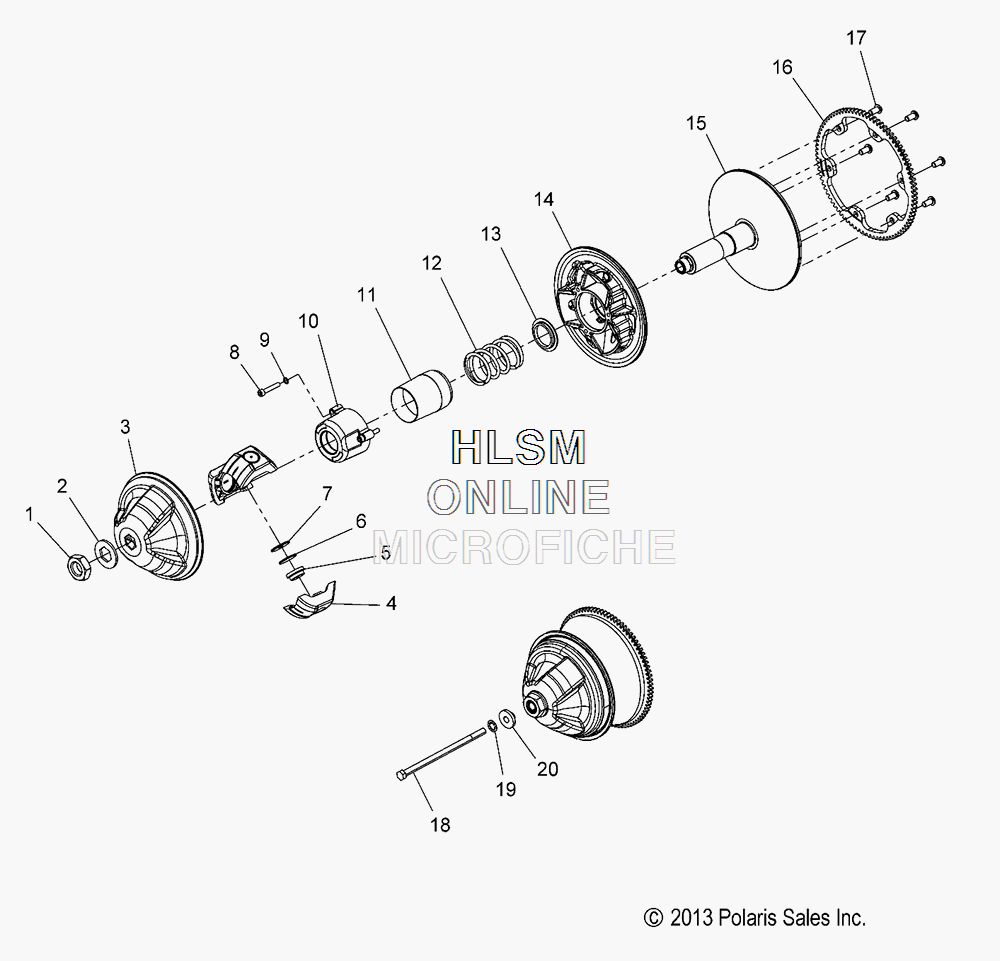

CLUTCH - PRIMARY для Polaris 550 INDY LXT (BLUE FIRE METALLIC) [S17CED5BSM] - 2017 года выпуска

  • №
    Артикул
    Название
  • -
    1323049 ASM., DRIVE CLUTCH, CV TECH 50 ES (INCL. 1-17)
    ASM., DRIVE CLUTCH, CV TECH 50 ES (INCL. 1-17)
  • 1
    2205341 NUT, CVT
    NUT, CVT
  • 2
    2205340 WASHER, CVT
    WASHER, CVT
  • 3
    2205311 COVER, CVT
    COVER, CVT
  • 4
    2205321 BLOCK, CVT
    BLOCK, CVT
  • 5
    2205307 SLUG, 43 GRAMS
    SLUG, 43 GRAMS
  • 5
    2205308 SLUG, 21 GRAMS
    SLUG, 21 GRAMS
  • 6
    2205309 SHIM, 3.2 GRAMS
    SHIM, 3.2 GRAMS
  • 7
    2205310 CAP, THREADED
    CAP, THREADED
  • 8
    2205470 SCREW
    SCREW
  • 9
    2205338 WASHER, LOCK
    WASHER, LOCK
  • 10
    2205306 COVER, SPRING
    COVER, SPRING
  • 11
    2205305 GUIDE, SPRING
    GUIDE, SPRING
  • 12
    7044154 SPRING, 85LB/IN.
    SPRING, 85LB/IN.
  • 13
    2205304 SEAT, SPRING
    SEAT, SPRING
  • 14
    2205303 SHEAVE, SLIDING
    SHEAVE, SLIDING
  • 15
    2205300 SHEAVE, FIXED
    SHEAVE, FIXED
  • 16
    2205312 RING GEAR
    RING GEAR
  • 17
    2205342 SCREW
    SCREW
  • 18
    7517776 SCREW
    SCREW
  • 19
    7575202 WASHER, INT LK
    WASHER, INT LK
  • 20
    5138316 WASHER, CLUTCH RETAINER
    WASHER, CLUTCH RETAINER
