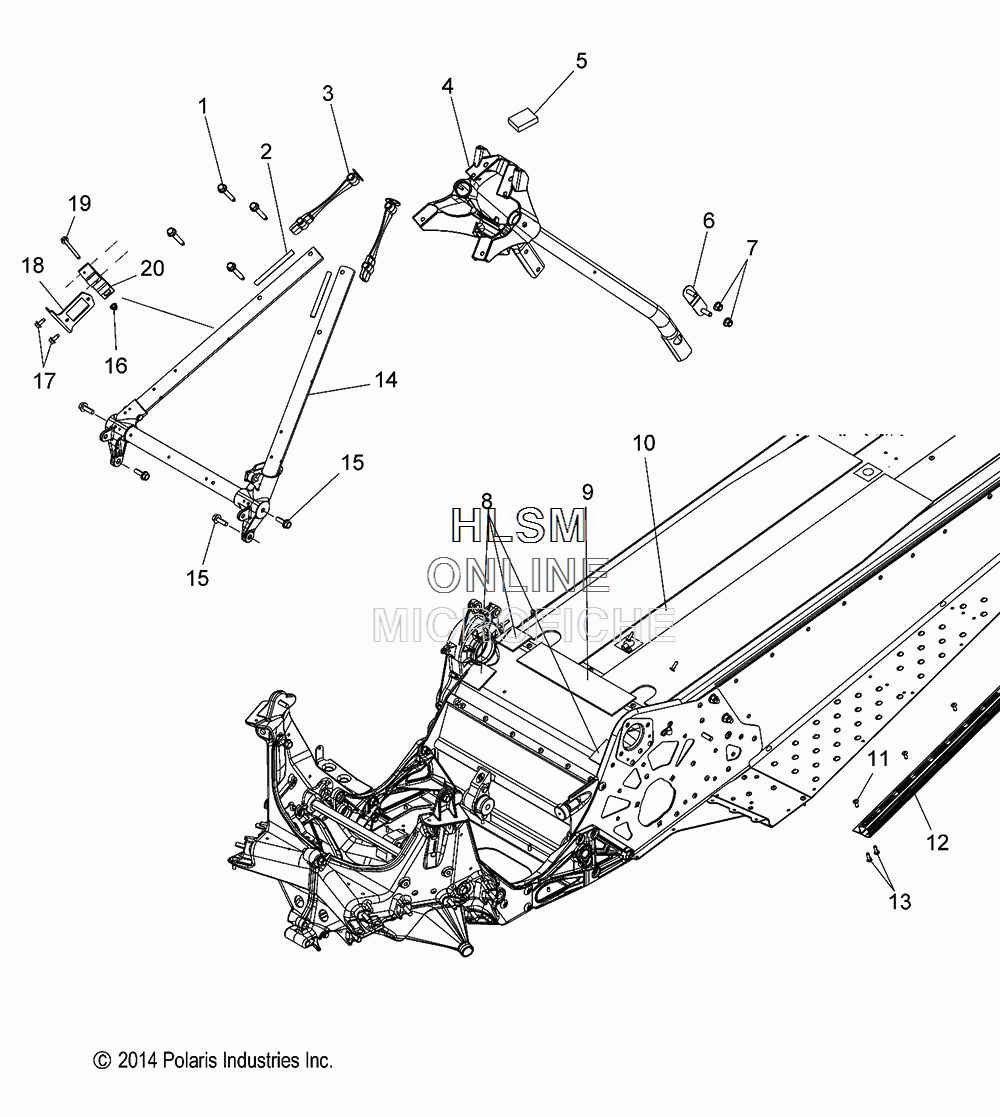

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 550 INDY ADVENTURE 155 (TITANIUM) [S17CFE5BSL] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    7519245 SCREW
    SCREW
  • 2
    5521697-350 SEAL, BULB (BULK SVC)
    SEAL, BULB (BULK SVC)
  • 3
    5632200 SPACER, TUBE CAST
    SPACER, TUBE CAST
  • 4
    1018226 ASM., FRAME, TUBULAR, REAR
    ASM., FRAME, TUBULAR, REAR
  • 5
    5813729 PAD, RUBBER
    PAD, RUBBER
  • 6
    1018776 ASM., STUD PLATE
    ASM., STUD PLATE
  • 7
    7547332 NUT
    NUT
  • 8
    5813593 PAD, 5X5 CM
    PAD, 5X5 CM
  • 9
    5813662 PAD, 6.5X25CM
    PAD, 6.5X25CM
  • 10
    2205953-309 KIT, CHASSIS, 155 F/C, NAT. (INCL. BULKHEAD)
    KIT, CHASSIS, 155 F/C, NAT. (INCL. BULKHEAD)
  • 10
    1020017-309 ASM., TUNNEL, 155, F/C, SVC, NAT.
    ASM., TUNNEL, 155, F/C, SVC, NAT.
  • 11
    7661973 RIVET
    RIVET
  • 12
    5138961 TUBE, SUPPORT, GRIPPER, LEFT HAND
    TUBE, SUPPORT, GRIPPER, LEFT HAND
  • 12
    5138962 TUBE, SUPPORT, GRIPPER, RIGHT HAND
    TUBE, SUPPORT, GRIPPER, RIGHT HAND
  • 13
    7661637 RIVET
    RIVET
  • 14
    1023095 ASM., FRAME, TUBULAR, FRONT
    ASM., FRAME, TUBULAR, FRONT
  • 15
    7519243 SCREW
    SCREW
  • 16
    7547339 NUT
    NUT
  • 17
    7518513 BOLT
    BOLT
  • 18
    5256520 BRKT., COIL MNT
    BRKT., COIL MNT
  • 19
    7519171 SCREW
    SCREW
  • 20
    5137797 MOUNT, UPPER RESONATOR
    MOUNT, UPPER RESONATOR
