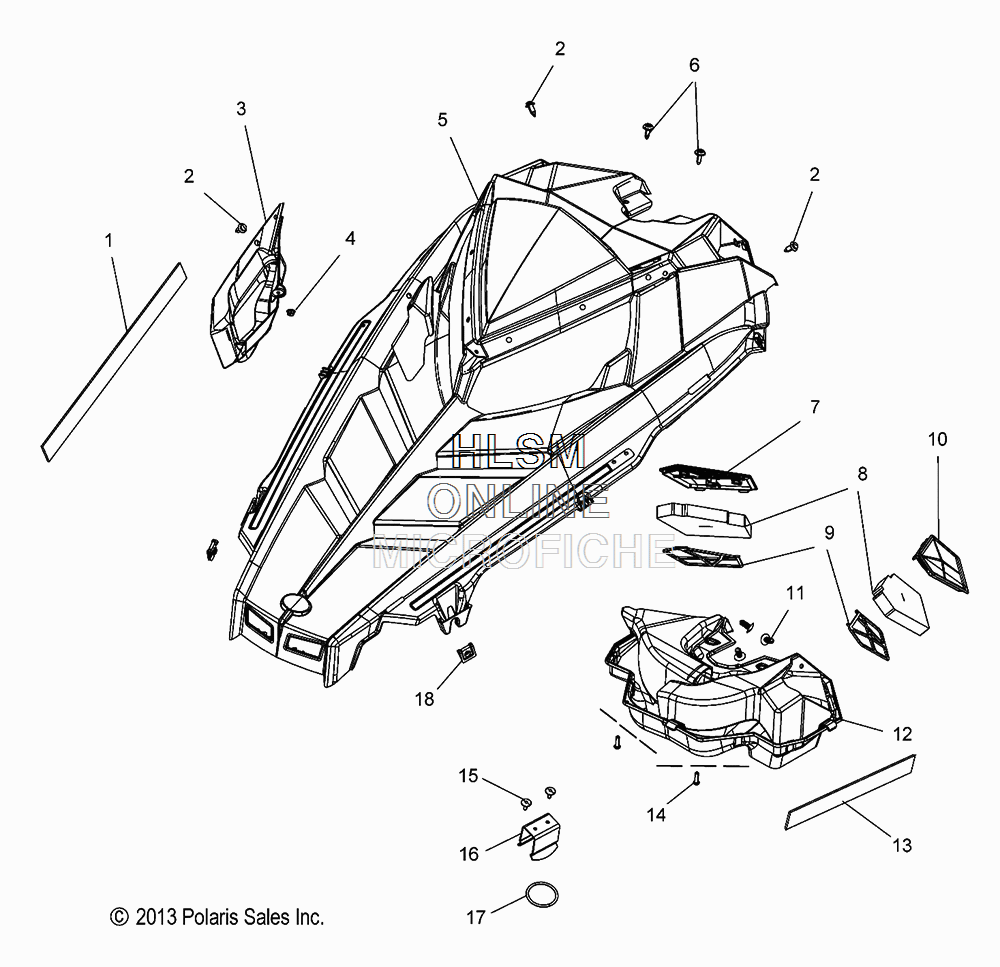

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 550 INDY ADVENTURE 144 (TITANIUM METALLIC) [S17CEE5BSL] - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    5522016 SEAL, BULB, DUAL, SVC
    SEAL, BULB, DUAL, SVC
  • 2
    7661855 RIVET, TUFLOK
    RIVET, TUFLOK
  • 3
    2635346 ASM., HOOD DUCT, SVC [INCL. BULB SEAL]
    ASM., HOOD DUCT, SVC [INCL. BULB SEAL]
  • 4
    7670135 NUT, SPEED
    NUT, SPEED
  • 5
    2635085 KIT, HOOD FOAM/SEALS [SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS]
    KIT, HOOD FOAM/SEALS [SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS]
  • 5
    5452861-070 HOOD-F/C, B1, (BLACK) [ALSO ORDER 2635085]
    HOOD-F/C, B1, (BLACK) [ALSO ORDER 2635085]
  • 6
    7519112 SCREW
    SCREW
  • 7
    5437836 VENT, INTAKE, RIGHT HAND
    VENT, INTAKE, RIGHT HAND
  • 8
    5813630 FOAM, FILTER INLET
    FOAM, FILTER INLET
  • 9
    5813467 BACKER, INTAKE VENT
    BACKER, INTAKE VENT
  • 10
    5437835 VENT, INTAKE, LEFT HAND
    VENT, INTAKE, LEFT HAND
  • 11
    7670090 CLIP, PLASTIC DART
    CLIP, PLASTIC DART
  • 12
    2633701 ASM., PLENUM, INTAKE
    ASM., PLENUM, INTAKE
  • 13
    5813605 FOAM W/PSA
    FOAM W/PSA
  • 14
    7517441 SCREW
    SCREW
  • 15
    7621467 RIVET
    RIVET
  • 16
    5222769 CLIP, BELT RETAINER
    CLIP, BELT RETAINER
  • 17
    5414211 O-RING
    O-RING
  • 18
    7710808 CLIP, 1/4 TURN
    CLIP, 1/4 TURN
