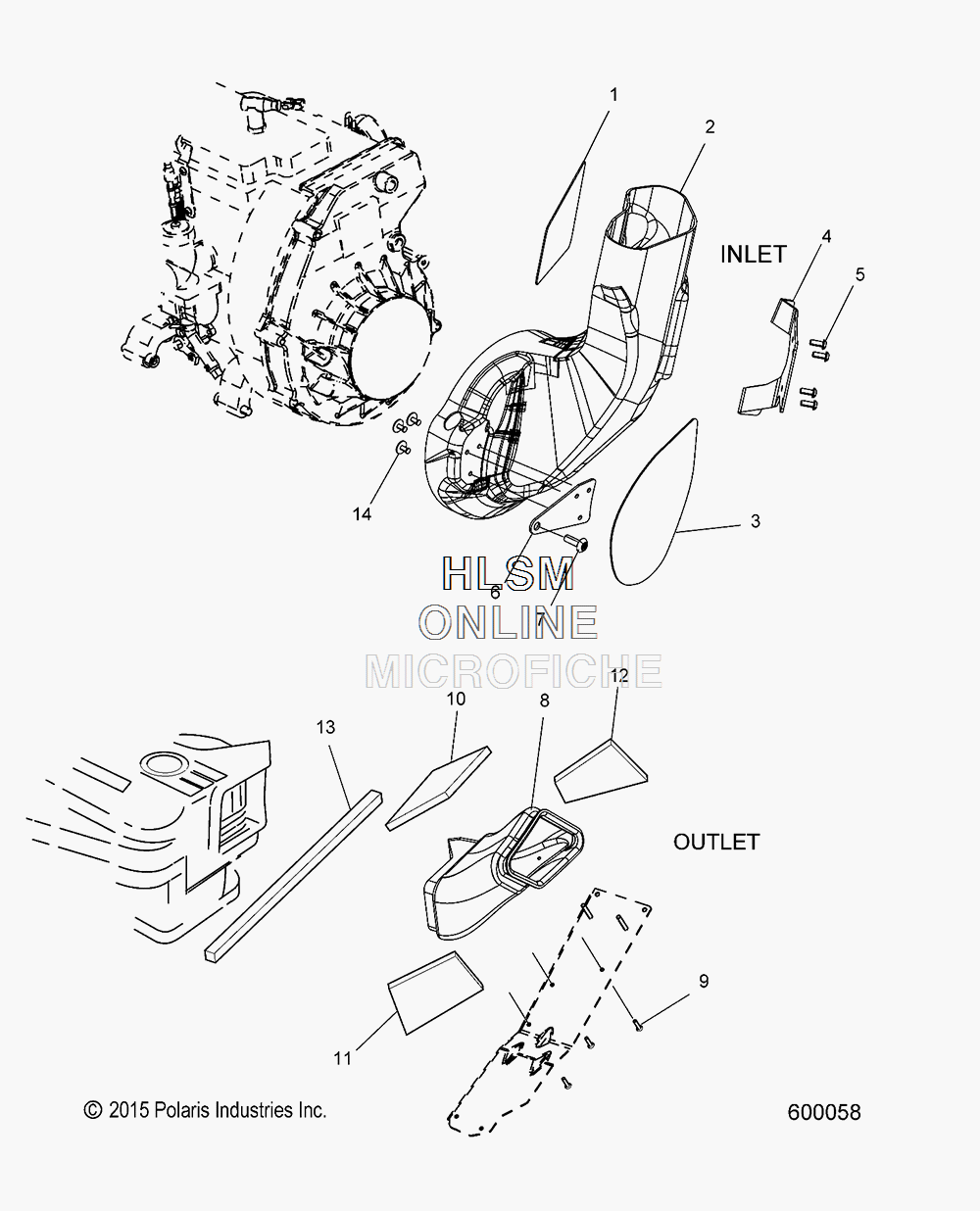

AIR INLET AND OUTLET DUCTS для Polaris 550 INDY 144 (WHITE LIGHTNING) [S17CEA5BSA] - 2017 года выпуска`
-
№АртикулНазвание
-
15813990 FOIL, INLET DUCT, UPPERFOIL, INLET DUCT, UPPER
-
22635709 ASM., DUCT, INLET W/FOIL [INCL.1-7,14]ASM., DUCT, INLET W/FOIL [INCL.1-7,14]
-
35814300 FOIL, INLET DUCT, LOWERFOIL, INLET DUCT, LOWER
-
41021177 ASM., SIDE BRKT., UPPERASM., SIDE BRKT., UPPER
-
57518656 BOLTBOLT
-
65260417 BRACKET, LOWERBRACKET, LOWER
-
77518906 SCREWSCREW
-
82634934 ASM., AIR OUTLET DUCT [INCL. 10-12]ASM., AIR OUTLET DUCT [INCL. 10-12]
-
97621489 RIVET, AL BULBEXRIVET, AL BULBEX
-
105813926 FOAM, AIR OUT, TOPFOAM, AIR OUT, TOP
-
115813927 FOAM, AIR OUT, FRONTFOAM, AIR OUT, FRONT
-
125813928 FOAM, AIR OUT, REARFOAM, AIR OUT, REAR
-
135813744 FOAM, DUCTFOAM, DUCT
-
147621472 RIVETRIVET
