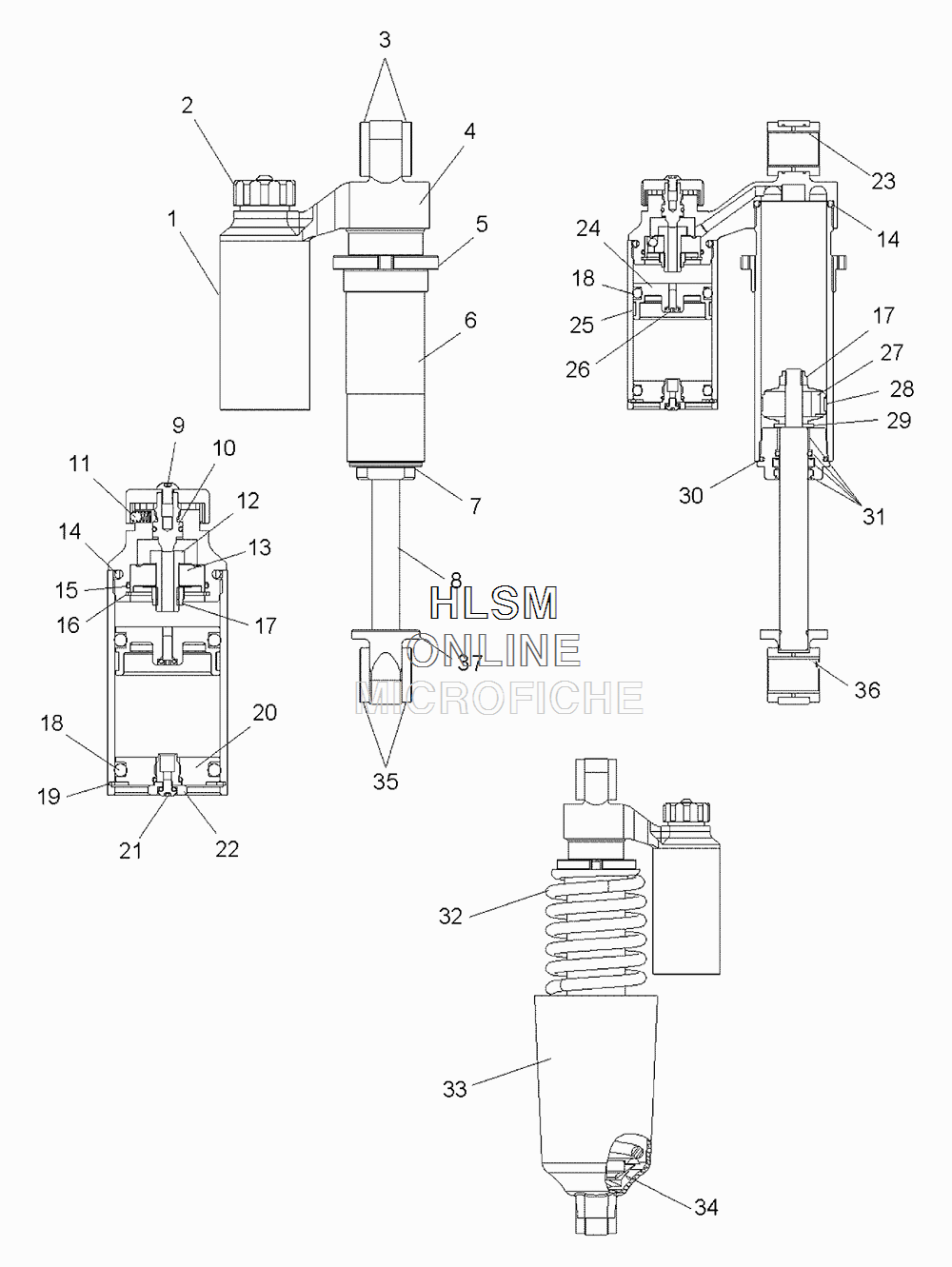

SUSPENSION - FRONT SHOCK TRACK для Polaris 800 SWITCHBACK ASSULT [S16CW8] - 2016 года выпуска`
-
№АртикулНазвание
-
-7043634 SHOCK, FRONT TRACK, WALKER EVANSSHOCK, FRONT TRACK, WALKER EVANS
-
11800419 BODY, RESERVOIRBODY, RESERVOIR
-
21800418 KNOB, CLICKERKNOB, CLICKER
-
31800033 BUSHING/URETHANEBUSHING/URETHANE
-
41800413 CAP, ENDCAP, END
-
51800046 RETAINER, SPRINGRETAINER, SPRING
-
61800438 BODYBODY
-
71800414 ASM., SEAL HEADASM., SEAL HEAD
-
81800439 SHAFTSHAFT
-
91800357 SCREWSCREW
-
101800352 STUD, CLICKERSTUD, CLICKER
-
101800215 O-RING, STUDO-RING, STUD
-
111800127 BALL, D-TENTBALL, D-TENT
-
111800128 SPRING, D-TENTSPRING, D-TENT
-
121800354 BOLT, CLICKERBOLT, CLICKER
-
131800353 PISTON, CLICKERPISTON, CLICKER
-
141800030 O-RING, BODYO-RING, BODY
-
151800358 O-RING, CLICKER HOUSINGO-RING, CLICKER HOUSING
-
161800359 RING, SNAP, CLICKERRING, SNAP, CLICKER
-
171800031 NUT, CRIMPNUT, CRIMP
-
181800184 O-RINGO-RING
-
191800159 RING, SNAPRING, SNAP
-
201800420 CAP, END, RESERVOIRCAP, END, RESERVOIR
-
211800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
211800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
221800329 VALVE, NEEDLEVALVE, NEEDLE
-
221800215 O-RING, STUDO-RING, STUD
-
231800405 SLEEVESLEEVE
-
241800355 PISTON, RESERVOIRPISTON, RESERVOIR
-
251800185 BAND, PISTONBAND, PISTON
-
261800043 SCREW, BLEEDSCREW, BLEED
-
261800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
271800001 PISTON, CONVEXPISTON, CONVEX
-
281800297 BAND, WEARBAND, WEAR
-
291800050 WASHERWASHER
-
301800027 O-RING, BODYO-RING, BODY
-
311800038 BUSHING, SHAFTBUSHING, SHAFT
-
311800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
311800323 SEAL, U-CUPSEAL, U-CUP
-
311800322 WIPER, D-TYPEWIPER, D-TYPE
-
327042050-067 SPRING, COMPRESSION, 170#, BLACKSPRING, COMPRESSION, 170#, BLACK
-
335437525 SHIELD, SPRINGSHIELD, SPRING
-
345632166 RETAINER, SPRINGRETAINER, SPRING
-
351800289 BUSHING, SMALLBUSHING, SMALL
-
361800290 SLEEVESLEEVE
-
371800415 LOOP, SHAFTLOOP, SHAFT
