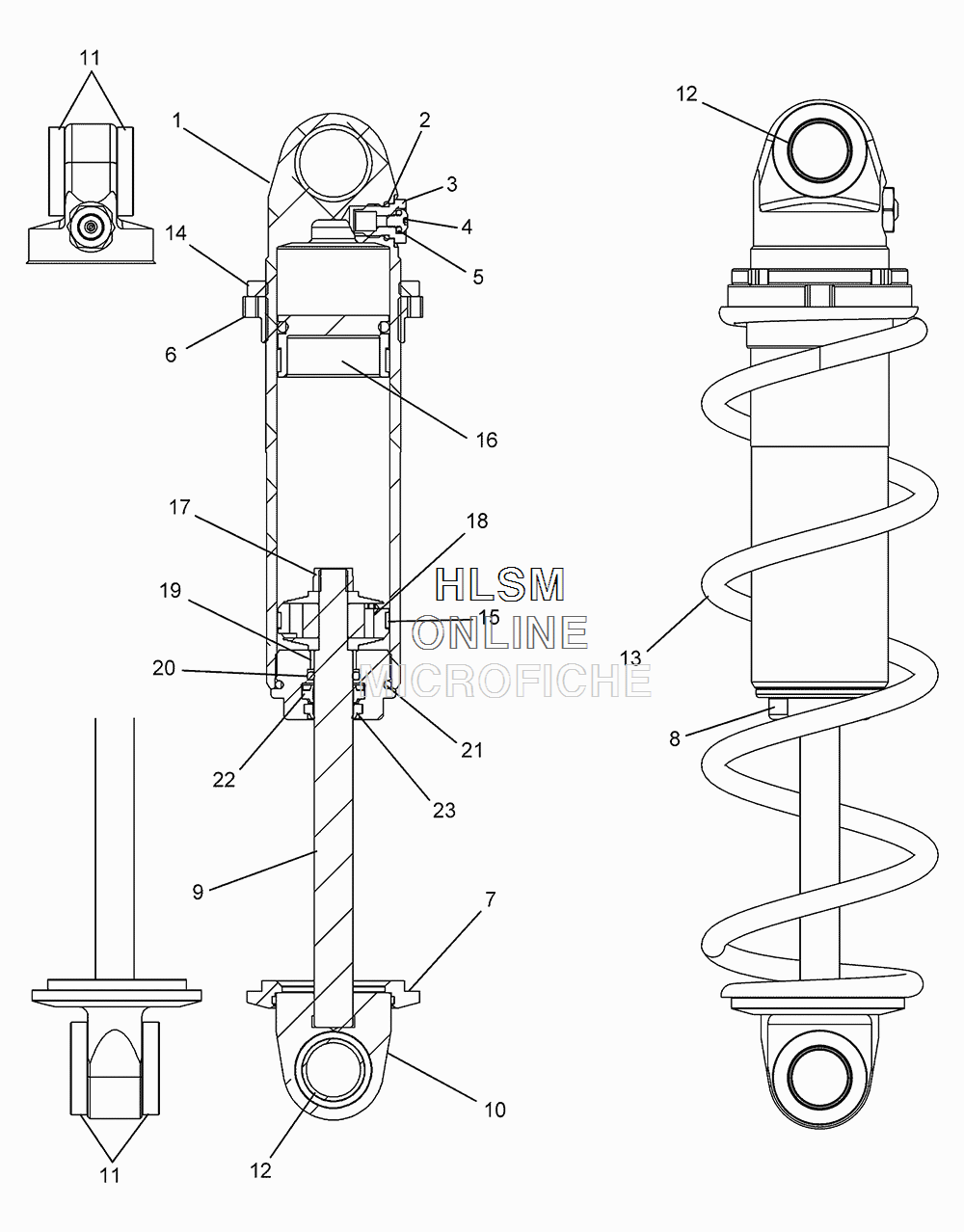

SUSPENSION - FRONT SHOCK TRACK для Polaris 800 SKS LE 155 [S16EL8PS] - 2016 года выпуска`
-
№АртикулНазвание
-
-7044342 SHOCK, WALKER EVANS, COIL OVER (BLACK)SHOCK, WALKER EVANS, COIL OVER (BLACK)
-
11800723 BODY, FT, BLACKBODY, FT, BLACK
-
21800215 O-RINGO-RING
-
31800329 NEEDLE VALVENEEDLE VALVE
-
41800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
51800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
61800724 RETAINER, SPRING CLIPRETAINER, SPRING CLIP
-
71800116 RING, SPRING RETAINERRING, SPRING RETAINER
-
81800545 ASM., SEAL HEADASM., SEAL HEAD
-
91800725 SHAFTSHAFT
-
101800408 LOOP, SHAFTLOOP, SHAFT
-
111800406 BUSHINGBUSHING
-
121800405 SLEEVESLEEVE
-
137043678-133 SPRING, COMPRESSION, 150#, WHITESPRING, COMPRESSION, 150#, WHITE
-
137043678-458 SPRING, COMPRESSION, 150#, BLACKSPRING, COMPRESSION, 150#, BLACK
-
141800465 NUT, JAMNUT, JAM
-
151800543 WEAR BANDWEAR BAND
-
161800348 PISTON, RES. IFPPISTON, RES. IFP
-
171800031 NUT, CRIMPNUT, CRIMP
-
181800001 PISTON, CONVEX 1.750PISTON, CONVEX 1.750
-
191800544 BUSHING, SHAFTBUSHING, SHAFT
-
201800095 O-RINGO-RING
-
211800027 O-RING, BODYO-RING, BODY
-
221800294 SEAL, U-CUPSEAL, U-CUP
-
231800295 SEAL, WIPERSEAL, WIPER
