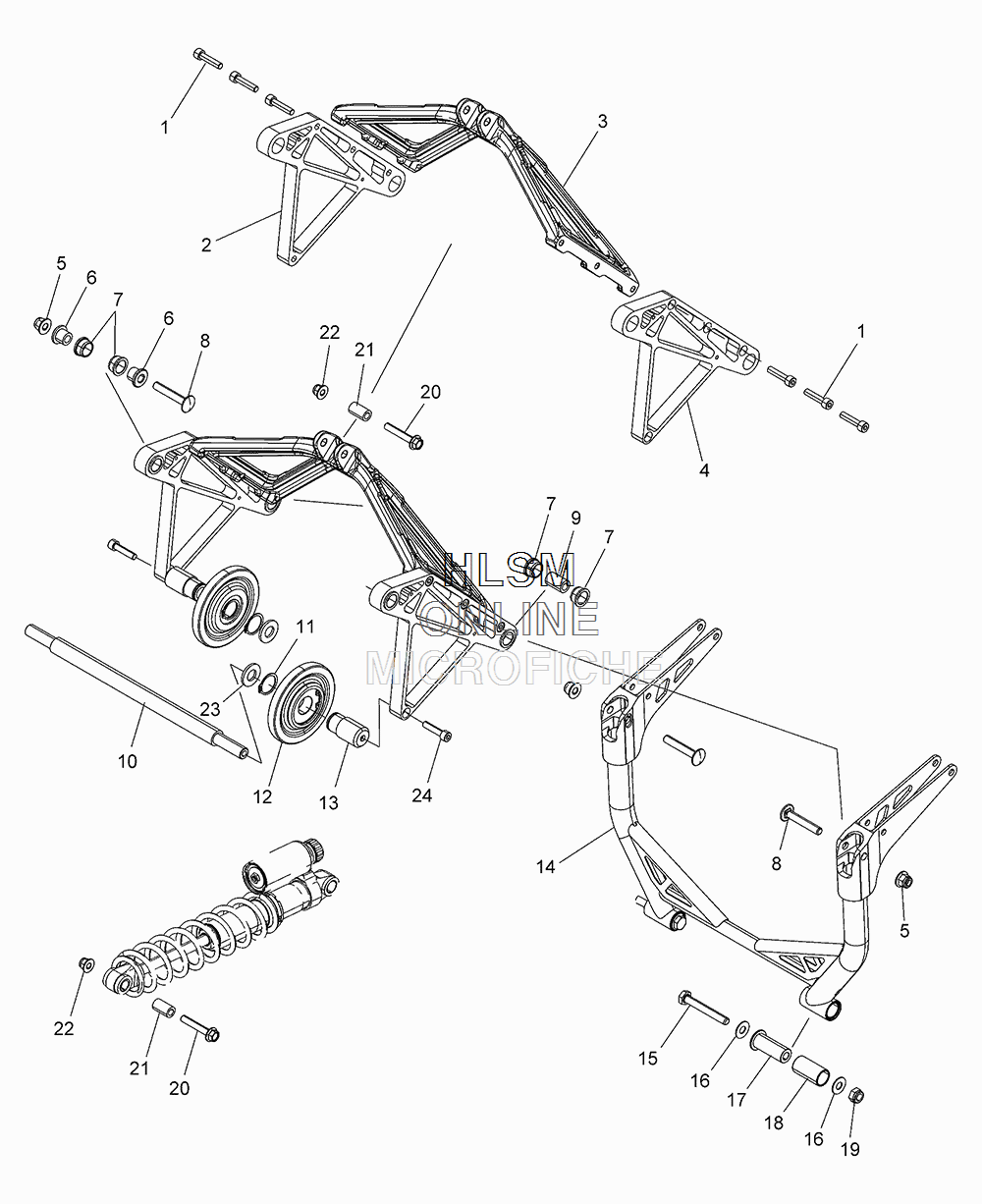

SUSPENSION - CRANK ASSEMBLY - REAR для Polaris 800 RUSH PRO-X LTD [S16DF8L] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7519981 SCREW
    SCREW
  • 2
    5138644 CRANK, SIDE RIGHT
    CRANK, SIDE RIGHT
  • 3
    5138645 CRANK, CENTER
    CRANK, CENTER
  • 4
    5138643 CRANK, SIDE LEFT
    CRANK, SIDE LEFT
  • 5
    7547423 NUT
    NUT
  • 6
    5138652 SHAFT, RPA, UPPER LWT
    SHAFT, RPA, UPPER LWT
  • 7
    5438876 BUSHING, CRANK
    BUSHING, CRANK
  • 8
    7519982 BOLT, CARRIAGE
    BOLT, CARRIAGE
  • 9
    5138654 SHAFT, PIVOT, LWT UPPER
    SHAFT, PIVOT, LWT UPPER
  • 10
    5139816 SHAFT, CARRIER
    SHAFT, CARRIER
  • 11
    7710603 RING, RETAINING
    RING, RETAINING
  • 12
    1590538 ASM., WHEEL, CARRIER (INCL 11,13)
    ASM., WHEEL, CARRIER (INCL 11,13)
  • 13
    5139469 SPACER, CARRIER
    SPACER, CARRIER
  • 14
    1543461-458 ASM., REAR PIVOT, MATTE BLACK (INCL. 18)
    ASM., REAR PIVOT, MATTE BLACK (INCL. 18)
  • 15
    7519015 SCREW
    SCREW
  • 16
    7556545 WASHER
    WASHER
  • 17
    5138648 SHAFT, PIVOT, LWT LOWER
    SHAFT, PIVOT, LWT LOWER
  • 18
    5438875 BUSHING, PIVOT
    BUSHING, PIVOT
  • 19
    7547442 NUT
    NUT
  • 20
    7518941 SCREW
    SCREW
  • 21
    5137360 BUSHING
    BUSHING
  • 22
    7547423 NUT
    NUT
  • 23
    7556004 WASHER
    WASHER
  • 24
    7520217 SCREW, SH
    SCREW, SH
