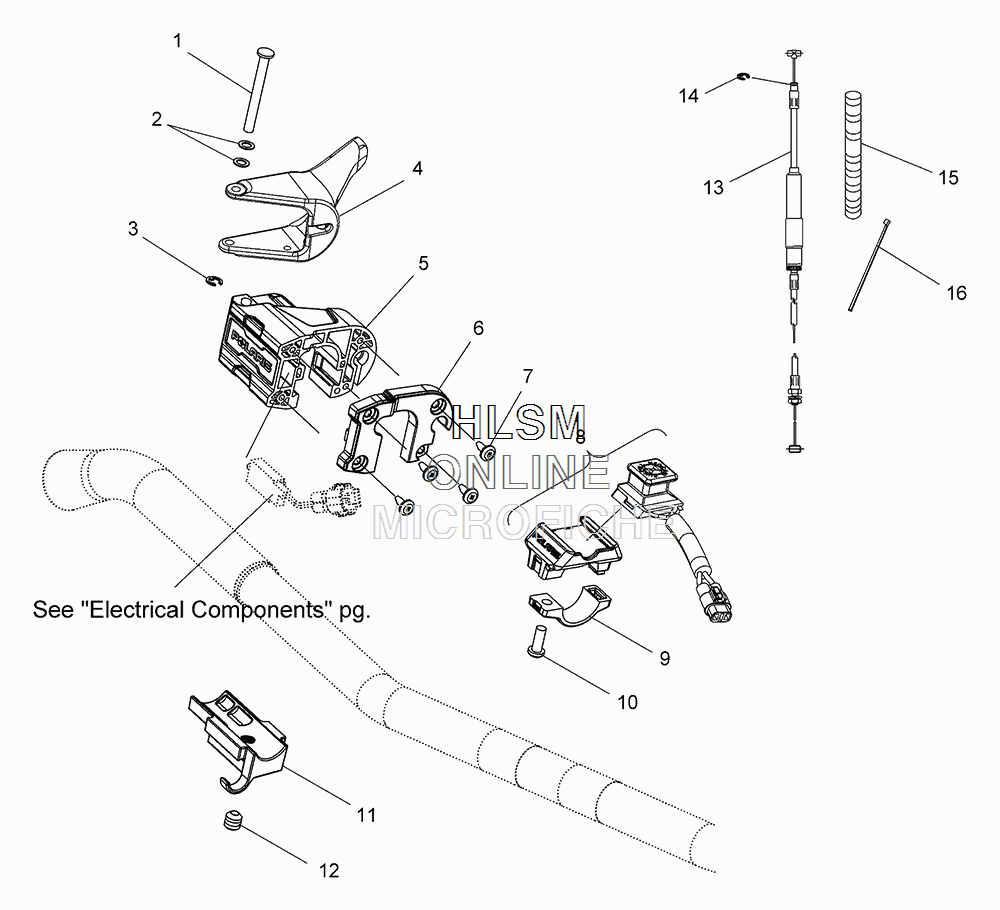

THROTTLE CONTROL ASSEMBLY для Polaris 800 RUSH PRO-S [S16DP6PSA] - 2016 года выпуска
‹-+›
-
№АртикулНазвание
-
17661624 PIN, RETAININGPIN, RETAINING
-
27555730 WASHERWASHER
-
37710401 RING, RETAININGRING, RETAINING
-
42010424 ASM., LEVER W/HEATER, HI/LOASM., LEVER W/HEATER, HI/LO
-
55450861 BLOCK, THROTTLE UPPERBLOCK, THROTTLE UPPER
-
65450862 COVER, THROTTLECOVER, THROTTLE
-
77511848 SCREWSCREW
-
82010426 ASM., SWITCH, SHUTOFF, STD. MNT. (INCL. SWITCH, UPPER MNT.)ASM., SWITCH, SHUTOFF, STD. MNT. (INCL. SWITCH, UPPER MNT.)
-
95439575 MNT., AUX SHUT OFF, LOWERMNT., AUX SHUT OFF, LOWER
-
107512076 SCREWSCREW
-
115450836 BLOCK, THROTTLE LOWERBLOCK, THROTTLE LOWER
-
127519755 SCREW, SETSCREW, SET
-
137081929 CABLE, THROTTLECABLE, THROTTLE
-
147710503 RING, RETAININGRING, RETAINING
-
158360056-38 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
-
167080138 CABLE TIECABLE TIE
