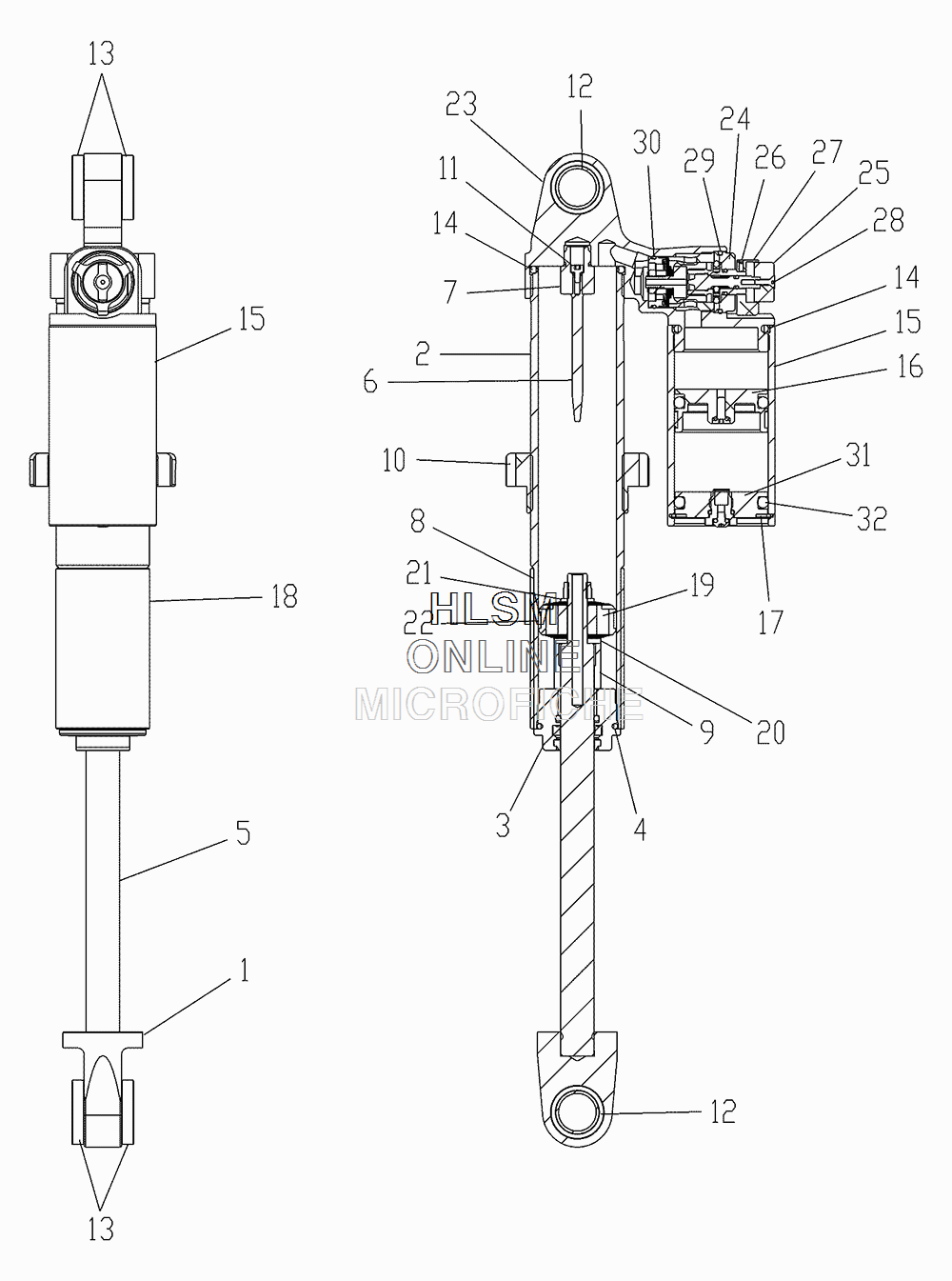

SUSPENSION - REAR W/ TRACK (LTD) для Polaris 800 RUSH PRO-S LTD [S16DP6PSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    7044383 SHOCK, RT
    SHOCK, RT
  • 1
    1800471 LOOP, SHAFT, .625THD
    LOOP, SHAFT, .625THD
  • 2
    1800743 BODY, RT, BUTTRESS CLR
    BODY, RT, BUTTRESS CLR
  • 3
    1800414 ASM., SEAL HEAD
    ASM., SEAL HEAD
  • 4
    1800027 O-RING, BODY
    O-RING, BODY
  • 5
    1800428 SHAFT, NEEDLE, RT
    SHAFT, NEEDLE, RT
  • 6
    1800300 NEEDLE, 2.25
    NEEDLE, 2.25
  • 7
    1800302 BOLT, NEEDLE
    BOLT, NEEDLE
  • 8
    1800031 3/8'' CRIMP NUT
    3/8'' CRIMP NUT
  • 9
    1800377 SPACER, SHAFT, .850
    SPACER, SHAFT, .850
  • 10
    1800372 NUT, SPRING LOCK
    NUT, SPRING LOCK
  • 11
    1800074 SCREW-BLEED W/O RING
    SCREW-BLEED W/O RING
  • 12
    1800405 SLEEVE, 1.15L
    SLEEVE, 1.15L
  • 13
    1800406 BUSHING
    BUSHING
  • 14
    1800030 O-RING, BODY
    O-RING, BODY
  • 15
    1800523 BODY, RES, 2IN CLEAR
    BODY, RES, 2IN CLEAR
  • 16
    1800739 ASM, IFP PISTON, 1.75BLD
    ASM, IFP PISTON, 1.75BLD
  • 17
    1800159 RING, SNAP
    RING, SNAP
  • 18
    1800133 SLEEVE, WEAR
    SLEEVE, WEAR
  • 19
    1800001 PISTON, CONVEX
    PISTON, CONVEX
  • 20
    1800204 WASHER
    WASHER
  • 21
    1800050 WASHER, 3/8 AN
    WASHER, 3/8 AN
  • 22
    1800297 WEAR BAND
    WEAR BAND
  • 23
    1800741 PIGGYBACK, 1 3/4 H/L
    PIGGYBACK, 1 3/4 H/L
  • 24
    1800744 ASM, ADJ. H/L SPEED
    ASM, ADJ. H/L SPEED
  • 25
    1800735 KNOB, LS, DBL GRIP, BLACK
    KNOB, LS, DBL GRIP, BLACK
  • 26
    1800736 SCREW, SET #3-38
    SCREW, SET #3-38
  • 27
    1800737 KNOB, HS, TRI GRIP RED
    KNOB, HS, TRI GRIP RED
  • 28
    1800738 SCREW, 4-40X.375SS
    SCREW, 4-40X.375SS
  • 29
    1800680 O-RING 2.0X24.5MM
    O-RING 2.0X24.5MM
  • 30
    1800679 O-RING 1.5X21.5MM
    O-RING 1.5X21.5MM
  • 31
    1800740 ASM, END CAP 1.750AV
    ASM, END CAP 1.750AV
  • 32
    1800184 O-RING
    O-RING
