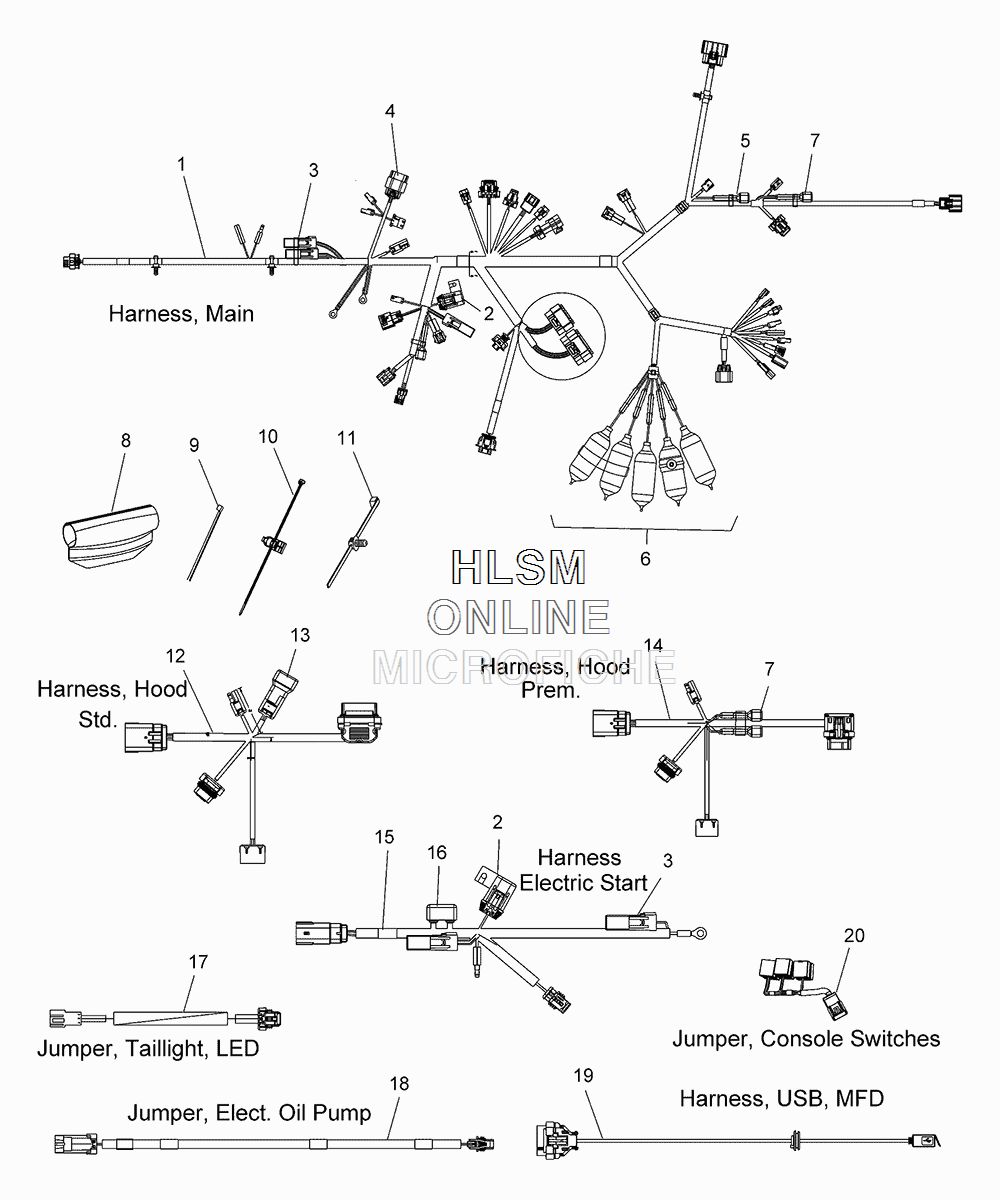

WIRING HARNESS для Polaris 800 RMK PRO AXYS 163 [S16ED8PSA] - 2016 года выпуска`
-
№АртикулНазвание
-
12412446 HARNESS, MAIN, CH, PREM. (INCL. 2-7)HARNESS, MAIN, CH, PREM. (INCL. 2-7)
-
24012260 COVER, FUSEHOLDERCOVER, FUSEHOLDER
-
24010752 FUSE, 2 AMP.FUSE, 2 AMP.
-
34011998 RELAY, MICRO SPDTRELAY, MICRO SPDT
-
44012170 COVER, DIAGNOSTICCOVER, DIAGNOSTIC
-
54011441 CAPACITOR, FILTERCAPACITOR, FILTER
-
64013412 CAPACITOR, 22,000 MICRO FCAPACITOR, 22,000 MICRO F
-
72410000 DIODE, 6 AMPDIODE, 6 AMP
-
82685075 COVER, HARNESSCOVER, HARNESS
-
82685344 COVER, HARNESS, LARGECOVER, HARNESS, LARGE
-
97080138 CABLE TIECABLE TIE
-
97080492 CABLE TIE, 11 INCHCABLE TIE, 11 INCH
-
104020139 CLIP, ROSEBUDCLIP, ROSEBUD
-
117081496 CLIP, ROUTINGCLIP, ROUTING
-
122412552 HARNESS, HOOD, STD.HARNESS, HOOD, STD.
-
132412732 MODULE, RESISTOR, PULL UPMODULE, RESISTOR, PULL UP
-
142412714 HARNESS, HOOD, PREM. (MODELS W/GPS)HARNESS, HOOD, PREM. (MODELS W/GPS)
-
152413091 HARNESS, ELECTRIC START (ES MODELS)HARNESS, ELECTRIC START (ES MODELS)
-
162410881 BREAKER, CIRCUIT, 20 AMPBREAKER, CIRCUIT, 20 AMP
-
172413066 JUMPER, TAILLIGHT, (RMK) LED 163JUMPER, TAILLIGHT, (RMK) LED 163
-
182412793 JUMPER, ELECTRONIC OIL PUMPJUMPER, ELECTRONIC OIL PUMP
-
192412818 HARNESS, USB, MFD (MODELS W/GPS)HARNESS, USB, MFD (MODELS W/GPS)
-
202412895 JUMPER, CONSOLE SWITCHESJUMPER, CONSOLE SWITCHES
