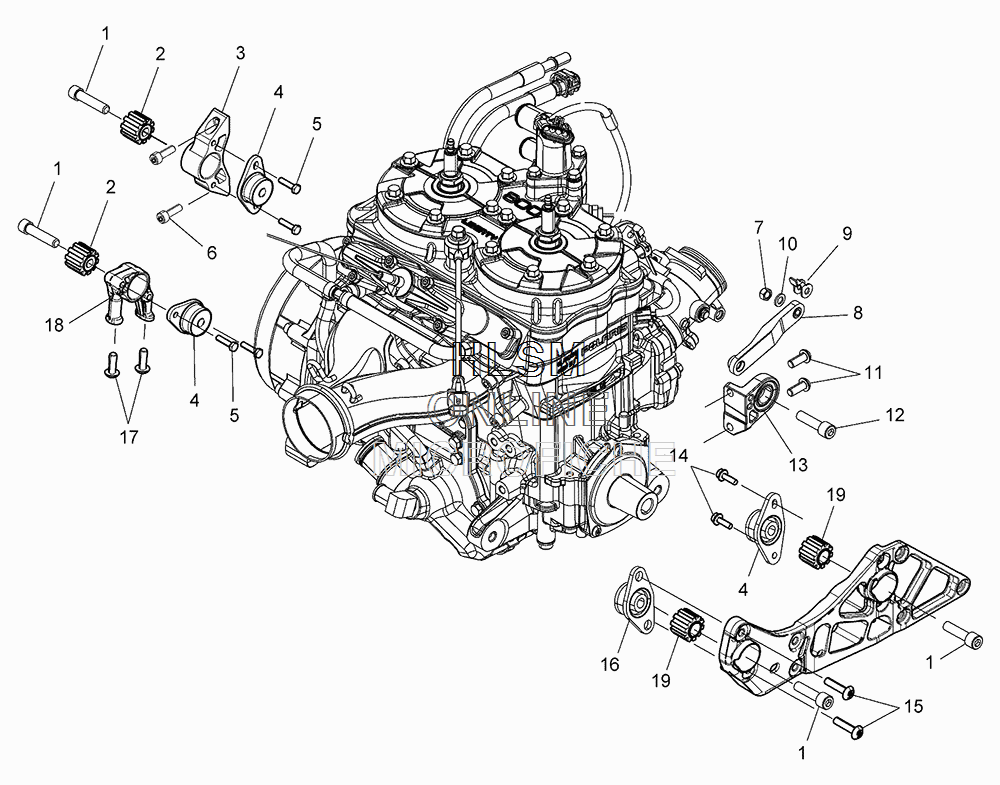

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 800 RMK ASSAULT 155 3'' TRACK [S16EY8PSA] - 2016 года выпуска`
-
№АртикулНазвание
-
-2205653 ENGINE, LONG BLOCKENGINE, LONG BLOCK
-
17519334 SCREWSCREW
-
23022698 MOUNT, ENGINE INSERT RAD, MAGMOUNT, ENGINE INSERT RAD, MAG
-
35138294 MOUNT, ENGINE, REAR, MAGMOUNT, ENGINE, REAR, MAG
-
43022713 MOUNT, ENGINEMOUNT, ENGINE
-
57516823 SCREWSCREW
-
67519010 SCREWSCREW
-
77547332 NUT, FLANGED, NYLOCKNUT, FLANGED, NYLOCK
-
81019944 ASM., LINK, TORQUE, FIXED, OFFSETASM., LINK, TORQUE, FIXED, OFFSET
-
95258166 BRKT., WASHER, 14GABRKT., WASHER, 14GA
-
107556216 WASHERWASHER
-
117519648 SCREWSCREW
-
127519119 SCREWSCREW
-
133022281 LIMITER, TORQUE, ENGINELIMITER, TORQUE, ENGINE
-
147516822 SCREWSCREW
-
157519049 SCREWSCREW
-
163022712 MOUNT, ENGINE, PTO, FRONTMOUNT, ENGINE, PTO, FRONT
-
177519070 SCREWSCREW
-
185139042 ENGINE, MOUNT, FRONTENGINE, MOUNT, FRONT
-
193022697 MOUNT, ENGINE INSERT RAD, PTOMOUNT, ENGINE INSERT RAD, PTO
