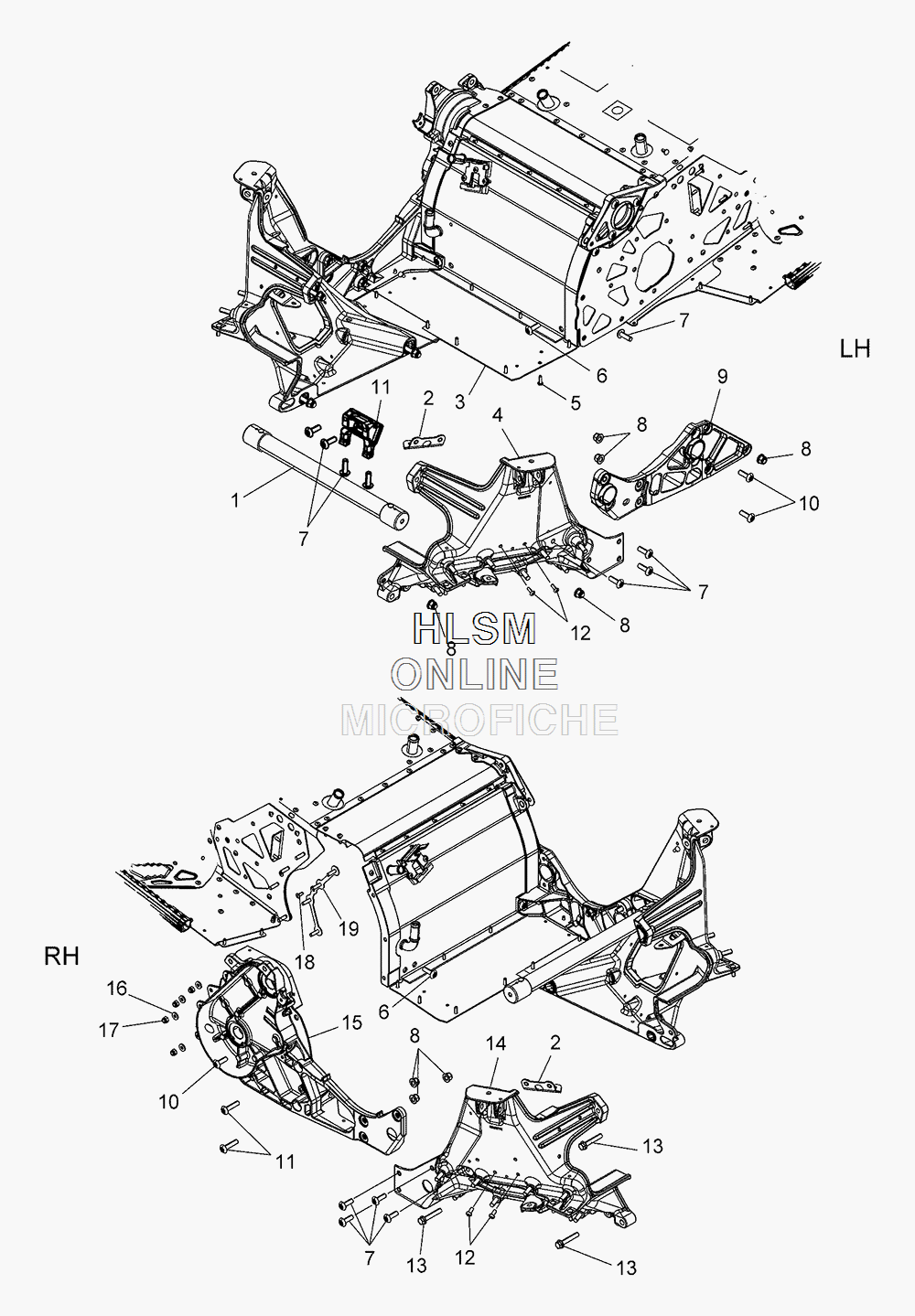

BULKHEAD ASSEMBLY для Polaris 600 SWITCHBACK PRO-S [S16DS6PSA] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    2204400 KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
    KIT, LORD, 406, 50 ML CARTRIDGE (ADHESIVE)
  • -
    2204171 KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
    KIT, LORD, 406 REPAIR KIT, 50 ML (ADHESIVE)
  • -
    2204172 KIT, LORD, MIX NOZZLES, 12 PIECE
    KIT, LORD, MIX NOZZLES, 12 PIECE
  • 1
    1020287 ASM., CROSS TUBE, UCA, AL
    ASM., CROSS TUBE, UCA, AL
  • 2
    1019666 ASM., BRKT., IDLER, TOP
    ASM., BRKT., IDLER, TOP
  • 3
    5256849 FLOOR, BULKHEAD
    FLOOR, BULKHEAD
  • 4
    1019181 ASM., CLIP W/STUD, LEFT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
    ASM., CLIP W/STUD, LEFT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
  • 4
    7519204 STUD
    STUD
  • 5
    7661637 RIVET
    RIVET
  • 6
    7518906 SCREW
    SCREW
  • 7
    7519070 SCREW
    SCREW
  • 8
    7547332 NUT
    NUT
  • 9
    1019183 ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
    ASM., BRACE, LOWER, LEFT HAND (REQUIRES ADHESIVE) (INCL. SLEEVE)
  • 10
    7518906 SCREW
    SCREW
  • 11
    5138449 MOUNT, STEERING, LOWER
    MOUNT, STEERING, LOWER
  • 12
    7518656 SCREW
    SCREW
  • 13
    7516732 SCREW
    SCREW
  • 14
    1019182 ASM., CLIP W/STUD, RIGHT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
    ASM., CLIP W/STUD, RIGHT HAND (INCL. STUDS) (REQUIRES ADHESIVE)
  • 14
    7519204 STUD
    STUD
  • 15
    5138392 CHAINCASE (REQUIRES ADHESIVE)
    CHAINCASE (REQUIRES ADHESIVE)
  • 16
    7556588 WASHER
    WASHER
  • 17
    7547505 NUT
    NUT
  • 18
    7661973 RIVET
    RIVET
  • 19
    1020927 ASM., STUD PLATE
    ASM., STUD PLATE
