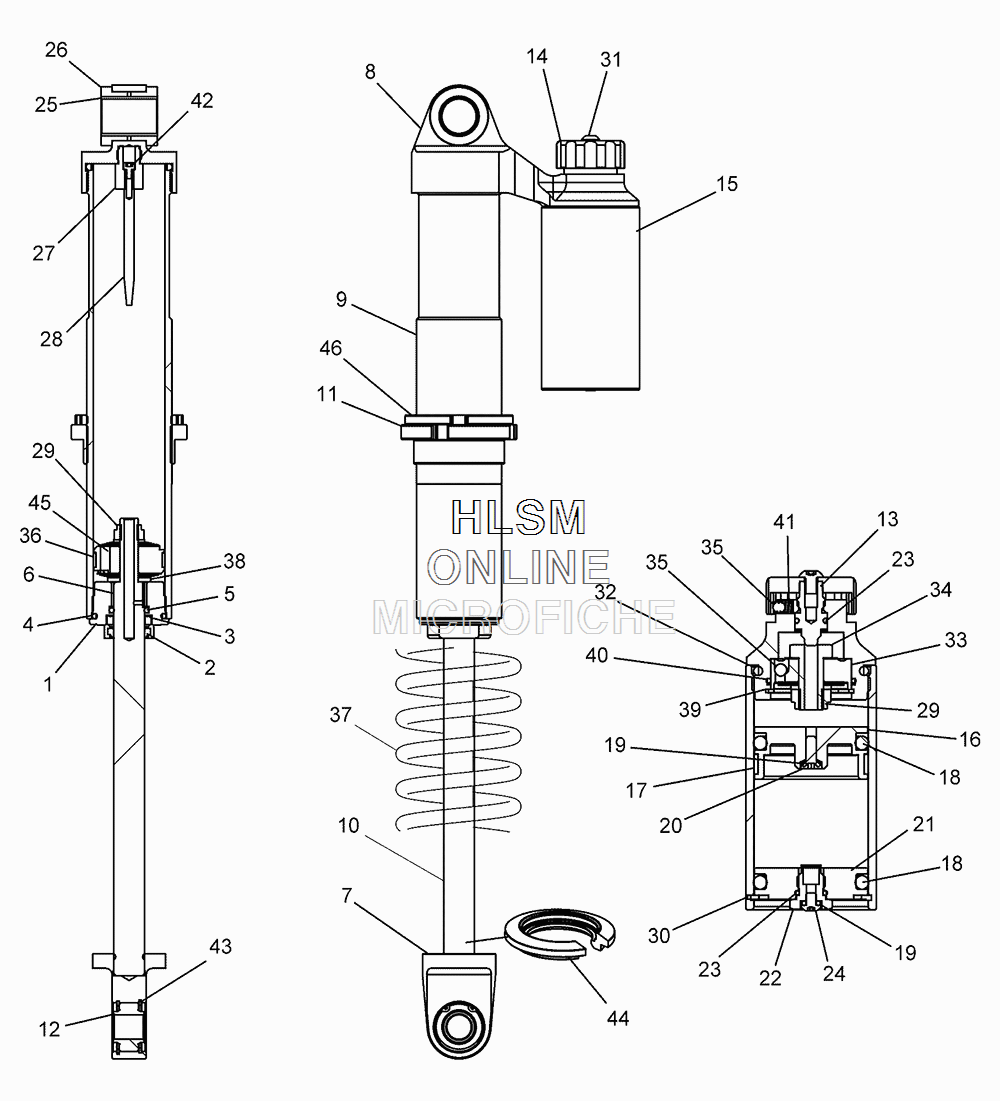

SUSPENSION - IFS SHOCK (INTERNATIONAL) для Polaris 600 SWITCHBACK ADVENTURE [S16DA6PSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • -
    7044288 SHOCK, IFS, WE NEEDLE, PB
    SHOCK, IFS, WE NEEDLE, PB
  • 1
    1800572 ASM., SEAL HEAD
    ASM., SEAL HEAD
  • 2
    1800322 WIPER, SEAL, YELLOW
    WIPER, SEAL, YELLOW
  • 3
    1800323 SEAL
    SEAL
  • 4
    1800027 O-RING
    O-RING
  • 5
    1800037 O-RING
    O-RING
  • 6
    1800038 BUSHING, SHAFT
    BUSHING, SHAFT
  • 7
    1800422 LOOP, SHAFT
    LOOP, SHAFT
  • 8
    1800424 LOOP, PIGGY BACK
    LOOP, PIGGY BACK
  • 9
    1800652 BODY, IFS, 9.295L
    BODY, IFS, 9.295L
  • 10
    1800423 SHAFT, NEEDLE, IFS
    SHAFT, NEEDLE, IFS
  • 11
    1800046 RETAINER, SPRING
    RETAINER, SPRING
  • 12
    1800040 END BEARING
    END BEARING
  • 13
    1800352 STUD, CLICKER
    STUD, CLICKER
  • 14
    1800418 KNOB, CLICKER, BLACK.
    KNOB, CLICKER, BLACK.
  • 15
    1800419 BODY, RESERVOIR, 3.75L, BLACK.
    BODY, RESERVOIR, 3.75L, BLACK.
  • 16
    1800355 PISTON, RESERVOIR, 2''
    PISTON, RESERVOIR, 2''
  • 17
    1800185 WEAR BAND
    WEAR BAND
  • 18
    1800184 O-RING
    O-RING
  • 19
    1800210 O-RING, BLEED SCREW
    O-RING, BLEED SCREW
  • 20
    1800043 BLEED SCREW
    BLEED SCREW
  • 21
    1800420 END CAP, RES., 2''
    END CAP, RES., 2''
  • 22
    1800329 NEEDLE VALVE
    NEEDLE VALVE
  • 23
    1800501 O-RING
    O-RING
  • 24
    1800109 SCREW, BTN HD
    SCREW, BTN HD
  • 25
    1800405 SLEEVE, 1.15L
    SLEEVE, 1.15L
  • 26
    1800406 BUSHING
    BUSHING
  • 27
    1800302 NEEDLE BOLT
    NEEDLE BOLT
  • 28
    1800300 NEEDLE
    NEEDLE
  • 29
    1800031 CRIMP NUT, 3/8
    CRIMP NUT, 3/8
  • 30
    1800159 SNAP RING
    SNAP RING
  • 31
    1800357 SCREW, BTNHD, #10
    SCREW, BTNHD, #10
  • 32
    1800030 O-RING, BODY
    O-RING, BODY
  • 33
    1800353 PISTON, CLICKER
    PISTON, CLICKER
  • 34
    1800354 BOLT, CLICKER
    BOLT, CLICKER
  • 35
    1800127 BALL, DETENT
    BALL, DETENT
  • 36
    1800297 WEAR BAND
    WEAR BAND
  • 37
    7041576-133 SPRING, COMP., IFS, 100#, WHITE
    SPRING, COMP., IFS, 100#, WHITE
  • 38
    1800050 WASHER, 3/8'' AN
    WASHER, 3/8'' AN
  • 39
    1800359 RING, RETAINING
    RING, RETAINING
  • 40
    1800358 O-RING
    O-RING
  • 41
    1800128 SPRING, DETENT
    SPRING, DETENT
  • 42
    1800074 SCREW, BLEED W/O-RING
    SCREW, BLEED W/O-RING
  • 43
    1800041 SNAP RING, END BEARING
    SNAP RING, END BEARING
  • 44
    1800116 SPRING CLIP
    SPRING CLIP
  • 45
    1800001 PISTON
    PISTON
  • 46
    1800465 JAM NUT
    JAM NUT
