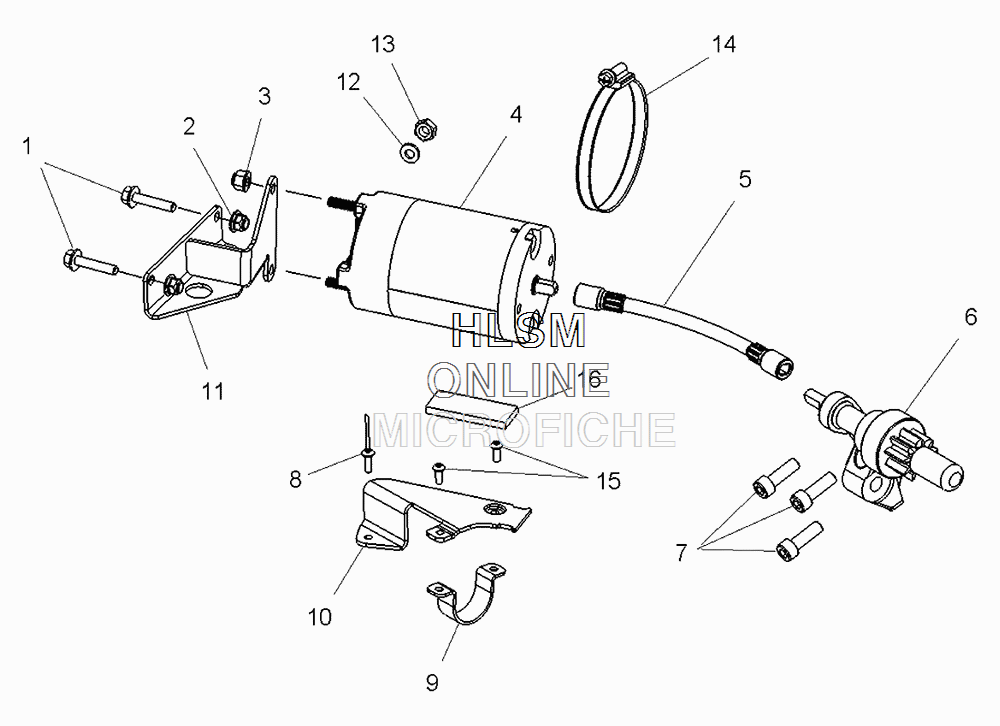

STARTING MOTOR для Polaris 600 RMK 144 [S16CK6GSA] - 2016 года выпуска`
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
27547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
37542153 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
44012729 MOTOR, STARTERMOTOR, STARTER
-
56230404 SHAFT, FLEX, STARTERSHAFT, FLEX, STARTER
-
61204372 ASM., PINION/BRACKETASM., PINION/BRACKET
-
67043742 SPRING, BENDIXSPRING, BENDIX
-
77518699 SCREWSCREW
-
87661637 RIVETRIVET
-
91018033 ASM., BRACKET, ELECTRIC START/UCA TUBE, LOWERASM., BRACKET, ELECTRIC START/UCA TUBE, LOWER
-
105254790 BRACKET, ELECTRIC START/UCA TUBE, UPPERBRACKET, ELECTRIC START/UCA TUBE, UPPER
-
115252966 BRACKET, ELECTRIC START/CLIPBRACKET, ELECTRIC START/CLIP
-
127552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
137542105 NUTNUT
-
147081279 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
157518656 BOLTBOLT
-
165810947 FOAM, SEALFOAM, SEAL
