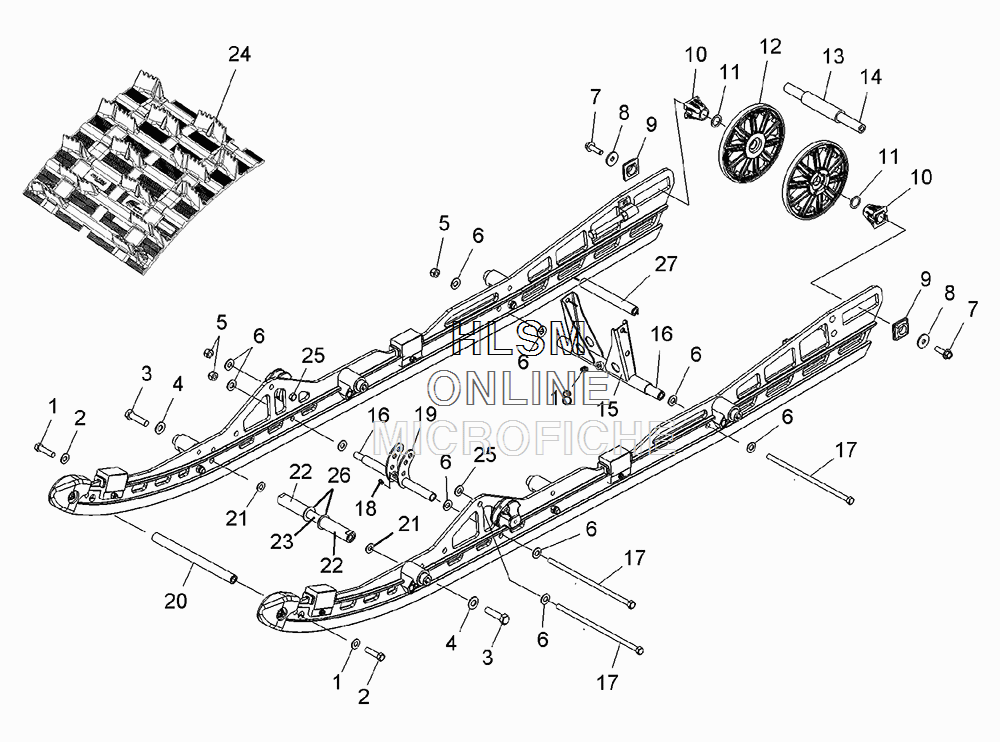

SUSPENSION - REAR W/ TRACK для Polaris 600 INDY VOYAGEUR [S16CS6GSL] - 2016 года выпуска
-
№АртикулНазвание
-
17518005 SCREWSCREW
-
27555806 WASHER, FLATWASHER, FLAT
-
37517857 SCREWSCREW
-
47556042 WASHERWASHER
-
57547344 NUTNUT
-
67556242 WASHER, FLATWASHER, FLAT
-
77517731 BOLTBOLT
-
87556130 WASHERWASHER
-
95436496 SPACER, IDLERSPACER, IDLER
-
105432535 SPACER, IDLERSPACER, IDLER
-
117555918 BUSHINGBUSHING
-
121590431-070 ASM., WHEEL, SPOKEASM., WHEEL, SPOKE
-
123514384 BEARINGBEARING
-
127710444 RING, RETAININGRING, RETAINING
-
135333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
145135305 SHAFT, IDLERSHAFT, IDLER
-
151541832-067 ARM, PIVOT, REAR, BLACKARM, PIVOT, REAR, BLACK
-
165334162 TUBETUBE
-
177517921 SCREWSCREW
-
187080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
191542122-067 ARM, SHOCK, PIVOT, BLACKARM, SHOCK, PIVOT, BLACK
-
205134078 SHAFTSHAFT
-
217555832 WASHERWASHER
-
225334062 SPACER, SHOCK, CENTERINGSPACER, SHOCK, CENTERING
-
235133188 SHAFTSHAFT
-
245413073 TRACK, 144 IN. X 2 SERIES 4TRACK, 144 IN. X 2 SERIES 4
-
245415096 TRACK, 144 IN. X 1.75 BACKCOUNTRY (INTL)TRACK, 144 IN. X 1.75 BACKCOUNTRY (INTL)
-
245251274 CLIP, GUIDECLIP, GUIDE
-
245251273 CLIP, FLAT (INTL. ONLY)CLIP, FLAT (INTL. ONLY)
-
257555893 WASHERWASHER
-
267556210 WASHERWASHER
-
275337198 SHAFTSHAFT
