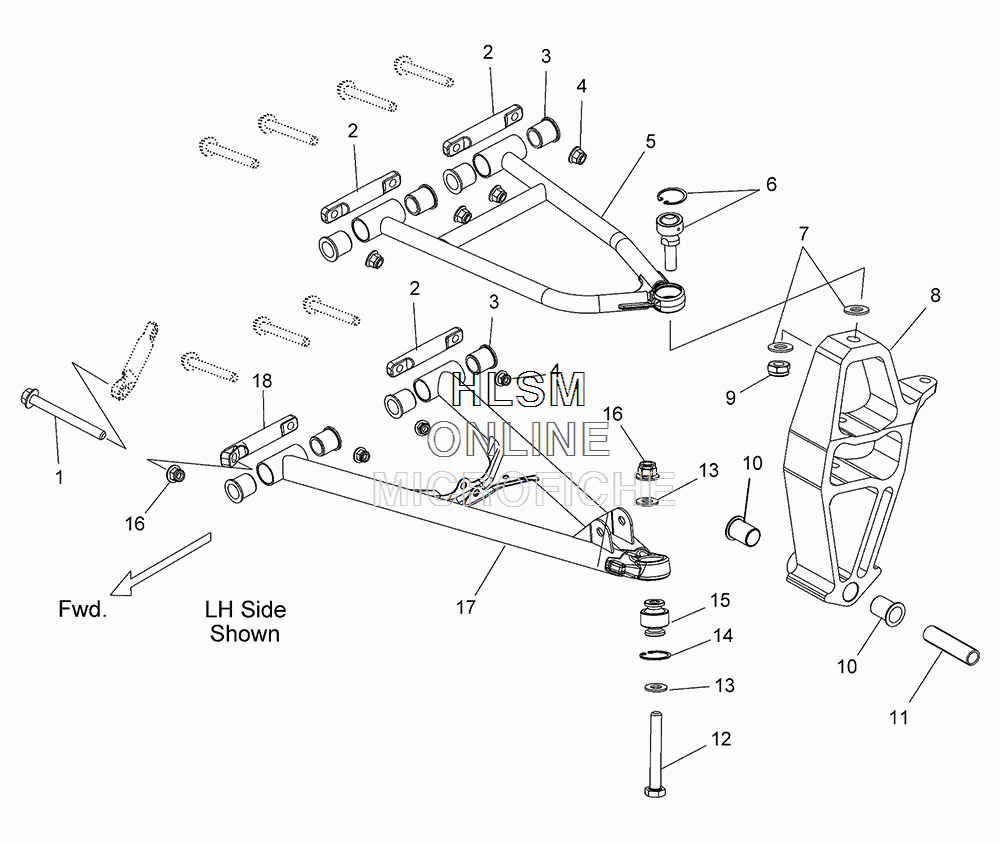

CONTROL ARMS W/SPINDLE для Polaris 600 INDY SP [S16CP6GSA] - 2016 года выпуска`
-
№АртикулНазвание
-
17518917 SCREWSCREW
-
25137700 SHAFT, PIVOTSHAFT, PIVOT
-
35438792 BUSHING, PIVOTBUSHING, PIVOT
-
47547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
52204665-067 KIT, UPPER CONTROL ARM LEFT, BLACK (INCL. 2,4,6,9)KIT, UPPER CONTROL ARM LEFT, BLACK (INCL. 2,4,6,9)
-
52204666-067 KIT, UPPER CONTROL ARM RIGHT, BLACK (INCL. 2,4,6,9)KIT, UPPER CONTROL ARM RIGHT, BLACK (INCL. 2,4,6,9)
-
67061179 BEARING, SPHERICAL, UPPER CONTROL ARMBEARING, SPHERICAL, UPPER CONTROL ARM
-
67710642 RING, RETAININGRING, RETAINING
-
77556212 WASHERWASHER
-
81823801 ASM., SPINDLE, LEFT HAND (INCL. 10)ASM., SPINDLE, LEFT HAND (INCL. 10)
-
81823802 ASM., SPINDLE, RIGHT HAND (INCL. 10)ASM., SPINDLE, RIGHT HAND (INCL. 10)
-
97547464 NUT, NYLOKNUT, NYLOK
-
105438460 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
115136910 BUSHINGBUSHING
-
127519015 SCREWSCREW
-
137555806 WASHERWASHER
-
147710539 RING, RETAININGRING, RETAINING
-
152204229 KIT, SPHERICAL BEARING, LOWERKIT, SPHERICAL BEARING, LOWER
-
167547423 NUT, ZOD, NYLOKNUT, ZOD, NYLOK
-
172204663-067 KIT, LOWER CONTROL ARM LEFT, BLACK (INCL. 2,4,14-16,18)KIT, LOWER CONTROL ARM LEFT, BLACK (INCL. 2,4,14-16,18)
-
172204664-067 KIT, LOWER CONTROL ARM RIGHT, BLACK (INCL. 2,4,14-16,18)KIT, LOWER CONTROL ARM RIGHT, BLACK (INCL. 2,4,14-16,18)
-
185137701 SHAFT, PIVOT, LOWER CONTROL ARM, FRONTSHAFT, PIVOT, LOWER CONTROL ARM, FRONT
