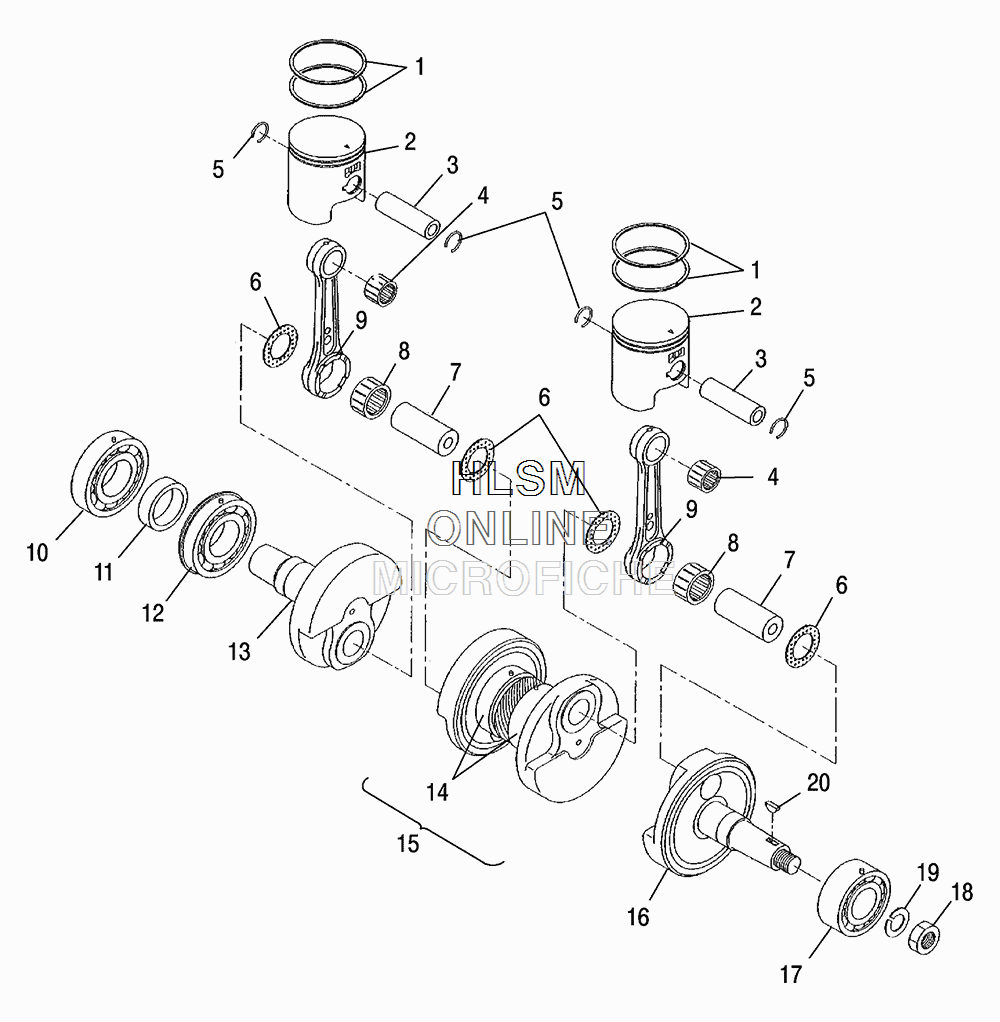

CRANKSHAFT ASSY. W/ PISTON для Polaris 550 LXT [S16CT5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
13090276 RING, PISTONRING, PISTON
-
23090313 PISTON, SET (INCL. 1,5)PISTON, SET (INCL. 1,5)
-
33083838 PIN, PISTONPIN, PISTON
-
43083216 BEARING, END, SMALLBEARING, END, SMALL
-
53084167 CLIP, PISTON PINCLIP, PISTON PIN
-
63083277 SPACER, CRANK PINSPACER, CRANK PIN
-
73083456 CRANK PIN 2CRANK PIN 2
-
83086390 BEARING, END, LARGEBEARING, END, LARGE
-
93240083 ROD, CONNECTINGROD, CONNECTING
-
103085754 BEARING, BALLBEARING, BALL
-
113085677 SPACERSPACER
-
123085753 BEARING, BALLBEARING, BALL
-
133089484 CRANKSHAFT 3, PTO SIDECRANKSHAFT 3, PTO SIDE
-
143084586 BEARING, BALLBEARING, BALL
-
153085674 CRANKSHAFT 2, CENTER (INCL. 7)CRANKSHAFT 2, CENTER (INCL. 7)
-
163090385 ASM., CRANKSHAFT (INCL. 6-17)ASM., CRANKSHAFT (INCL. 6-17)
-
163087177 CRANKSHAFT 1, MAG SIDECRANKSHAFT 1, MAG SIDE
-
173084681 BEARING, BALLBEARING, BALL
-
183083093 NUTNUT
-
193083094 WASHER, SPRINGWASHER, SPRING
-
203081543 KEY, WOODRUFFKEY, WOODRUFF
