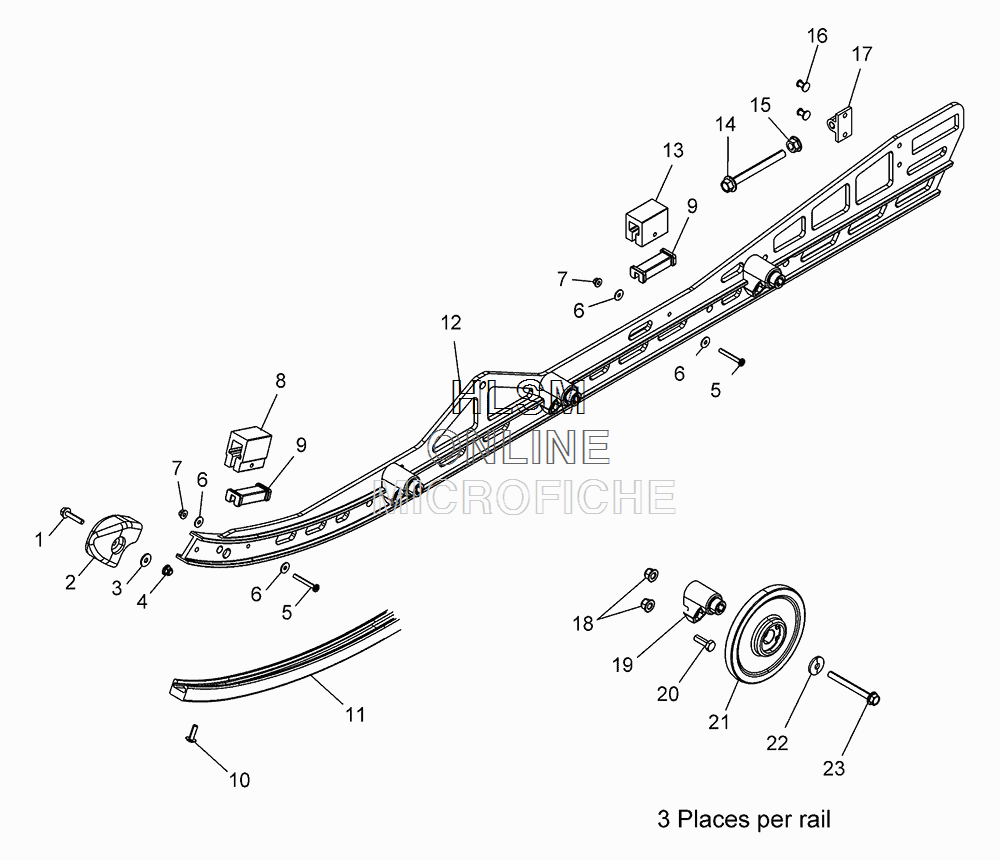

SUSPENSION - RAIL MOUNTING для Polaris 550 INDY VOYAGEUR [S16CS5BSL] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    7518993 SCREW
    SCREW
  • 2
    5438374 CAP, RAIL TIP
    CAP, RAIL TIP
  • 3
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 4
    7547339 NUT, NYLOK
    NUT, NYLOK
  • 5
    7518951 SCREW
    SCREW
  • 6
    7556470 WASHER, FLAT
    WASHER, FLAT
  • 7
    7547427 NUT, NYLOK
    NUT, NYLOK
  • 8
    5521498 BUMPER, JOUNCE, REAR
    BUMPER, JOUNCE, REAR
  • 9
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 10
    7518976 SCREW
    SCREW
  • 11
    5521633 HI-FAX
    HI-FAX
  • 12
    1542951 ASM., RAIL, BSC COIL OVER, 144, LEFT HAND (INCL. 1-9,13,16,17)
    ASM., RAIL, BSC COIL OVER, 144, LEFT HAND (INCL. 1-9,13,16,17)
  • 12
    1542952 ASM., RAIL, BSC COIL OVER, 144, RIGHT HAND (INCL. 1-9,13,16,17)
    ASM., RAIL, BSC COIL OVER, 144, RIGHT HAND (INCL. 1-9,13,16,17)
  • 13
    5521812 BUMPER
    BUMPER
  • 14
    7519167 SCREW
    SCREW
  • 15
    7547017 NUT
    NUT
  • 16
    7621501 RIVET
    RIVET
  • 17
    5130530 BLOCK, IDLER BOLT ADJUSTABLE
    BLOCK, IDLER BOLT ADJUSTABLE
  • 18
    7547332 NUT, FLANGE NYLOK
    NUT, FLANGE NYLOK
  • 19
    5631446 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 20
    7518952 SCREW
    SCREW
  • 21
    1590419-070 ASM., WHEEL
    ASM., WHEEL
  • 21
    3514012 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 21
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 22
    7556489 WASHER
    WASHER
  • 23
    7519217 SCREW
    SCREW
