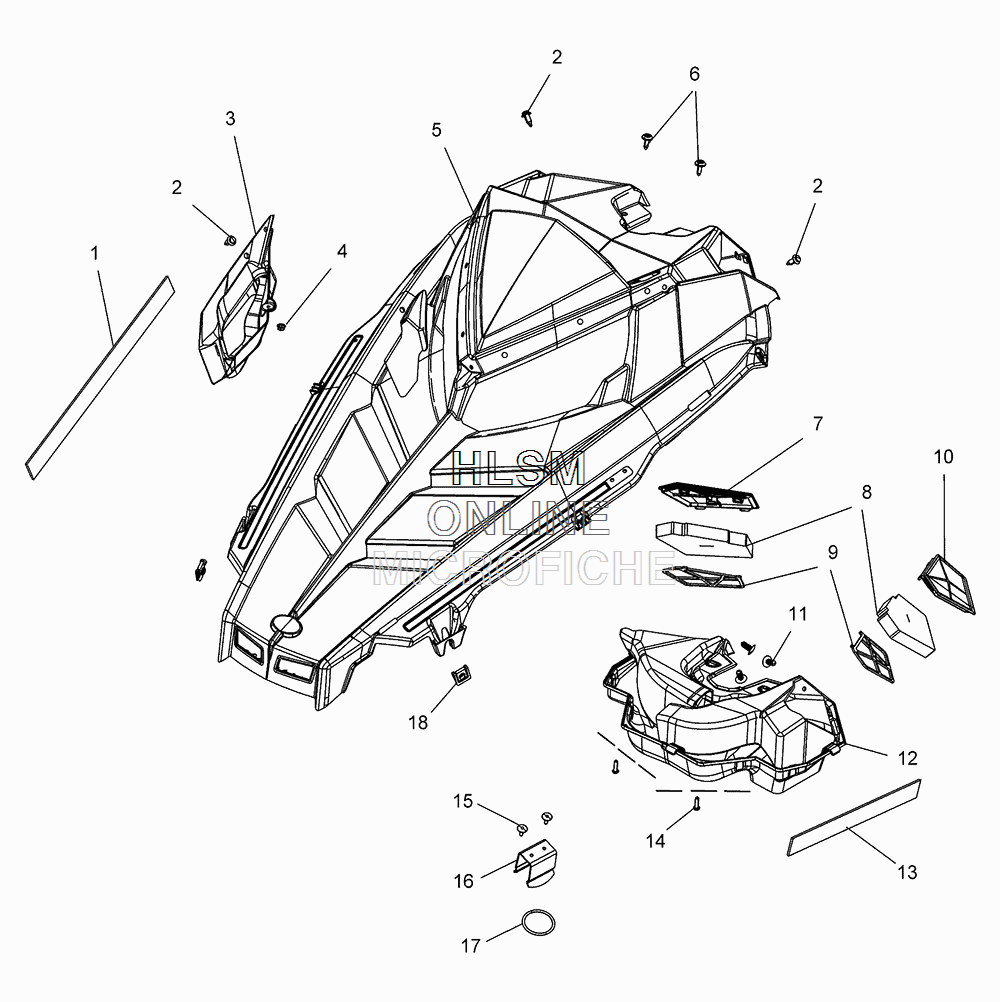

HOOD ASSEMBLY W/ HEADLIGHT для Polaris 550 INDY ES [S16CB5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
15522016 SEAL, BULB, DUAL, SVCSEAL, BULB, DUAL, SVC
-
27661855 RIVET, TUFLOKRIVET, TUFLOK
-
32635346 ASM., HOOD DUCT, SVC (INCL. BULB SEAL)ASM., HOOD DUCT, SVC (INCL. BULB SEAL)
-
47670135 NUT, SPEEDNUT, SPEED
-
55450105-070 HOOD, BLACK (ALSO ORDER 2635085)HOOD, BLACK (ALSO ORDER 2635085)
-
52635085 KIT, HOOD FOAM/SEALS (SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS)KIT, HOOD FOAM/SEALS (SEE BODY, HOOD FOAM/FABRIC PAGE FOR DETAILS)
-
67519112 SCREWSCREW
-
75437836 VENT, INTAKE RIGHTVENT, INTAKE RIGHT
-
85813630 FOAM, FILTER INLETFOAM, FILTER INLET
-
95813467 BACKER, INTAKE VENTBACKER, INTAKE VENT
-
105437835 VENT, INTAKE LEFTVENT, INTAKE LEFT
-
117670090 CLIP, PLASTIC DARTCLIP, PLASTIC DART
-
122633701 ASM., PLENUM, INTAKEASM., PLENUM, INTAKE
-
135813605 FOAM W/PSAFOAM W/PSA
-
147517441 SCREWSCREW
-
157621467 RIVETRIVET
-
165222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
175414211 O-RINGO-RING
-
187710630 CLIP, 1/4 TURNCLIP, 1/4 TURN
