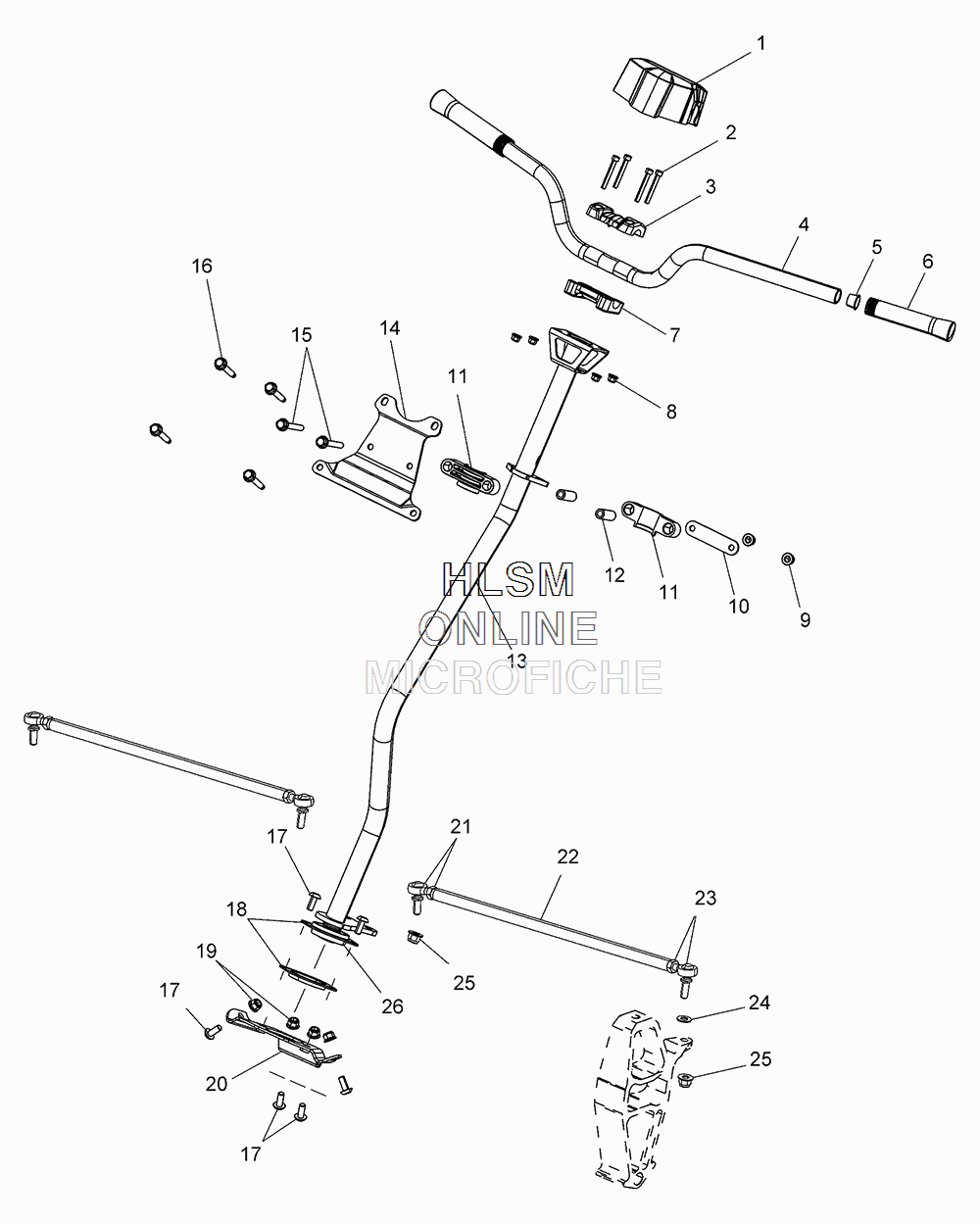

STEERING - H-BAR- STEERING POST- AND TIE RODS для Polaris 550 ADVENTURE 144 [S16CE5BSL] - 2016 года выпуска
-
№АртикулНазвание
-
15438523 COVER, HANDLEBARCOVER, HANDLEBAR
-
27518931 SCREWSCREW
-
35631729 BLOCK, HANDLEBAR MOUNTBLOCK, HANDLEBAR MOUNT
-
45255234-067 HANDLEBAR, BLACKHANDLEBAR, BLACK
-
55431096 PLUGPLUG
-
65452127-070 GRIP, HANDLEBAR, BLACKGRIP, HANDLEBAR, BLACK
-
75631892 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
87547274 NUTNUT
-
97547332 NUTNUT
-
105254513 STRAPSTRAP
-
115438492 BUSHING, STEERING POSTBUSHING, STEERING POST
-
125137796 SPACER, BUSHINGSPACER, BUSHING
-
131823895 ASM., STEERING POST, 550 (INCL. BRNG. AND FLANGETTE)ASM., STEERING POST, 550 (INCL. BRNG. AND FLANGETTE)
-
145255066 MOUNT, STEERING, UPPERMOUNT, STEERING, UPPER
-
157519298 SCREWSCREW
-
167519245 SCREWSCREW
-
177519260 SCREWSCREW
-
185222393 FLANGETTE, 2 BOLTFLANGETTE, 2 BOLT
-
197547332 NUTNUT
-
201018400 ASM., MOUNT, STEERING, LOWERASM., MOUNT, STEERING, LOWER
-
217061165 ROD END LEFTROD END LEFT
-
217547431 NUT LEFTNUT LEFT
-
225336789 TIE RODTIE ROD
-
237061166 ROD END LEFTROD END LEFT
-
237547430 NUTNUT
-
247555806 WASHERWASHER
-
257547423 NUTNUT
-
263514793 BEARINGBEARING
