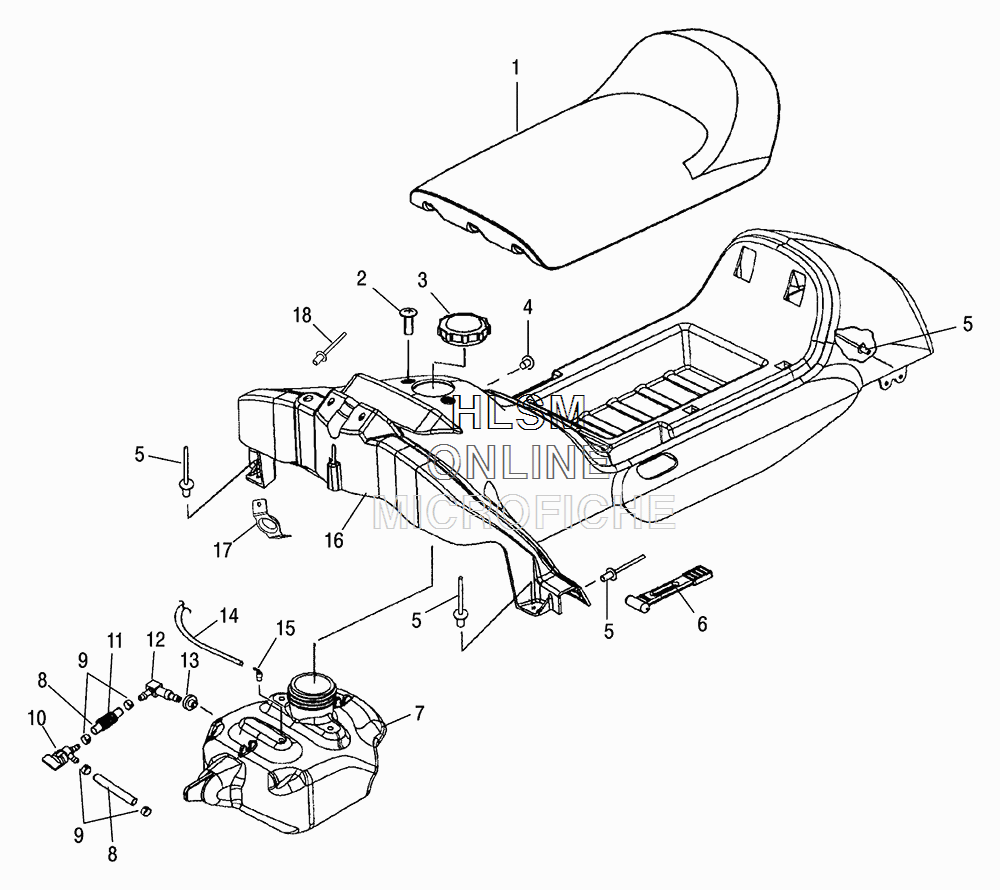

SEAT W/ FUEL TANK & CONSOLE для Polaris 120 INDY [S16WB1AEA] - 2016 года выпуска

  • №
    Артикул
    Название
  • 1
    2686511 ASM., SEAT CUSHION (INCL. COVER)
    ASM., SEAT CUSHION (INCL. COVER)
  • 1
    2686512 ASM., SEAT COVER
    ASM., SEAT COVER
  • 2
    7515148 SCREW
    SCREW
  • 3
    5450389 CAP, GAS TANK
    CAP, GAS TANK
  • 4
    7081085 NUT, U-TYPE
    NUT, U-TYPE
  • 5
    7621472 RIVET
    RIVET
  • 6
    5433150 STRAP
    STRAP
  • 7
    2521256 ASM., GAS TANK (INCL. 12,13)
    ASM., GAS TANK (INCL. 12,13)
  • 8
    8450117-250 HOSE, FUEL
    HOSE, FUEL
  • 9
    7080003 CLAMP, HOSE, RED
    CLAMP, HOSE, RED
  • 10
    7052249 VALVE, FUEL, 90 DEGREE
    VALVE, FUEL, 90 DEGREE
  • 11
    8360052-305 CONDUIT, CONVOLUTED
    CONDUIT, CONVOLUTED
  • 12
    7052348 FITTING, OUTLET, 90 DEGREE
    FITTING, OUTLET, 90 DEGREE
  • 13
    7052362 GROMMET, FLANGED
    GROMMET, FLANGED
  • 14
    8450061-600 LINE, OIL
    LINE, OIL
  • 15
    7052095 FITTING, 90 DEGREE
    FITTING, 90 DEGREE
  • 16
    2632154-070 ASM., CONSOLE, SEAT/TANK COVER
    ASM., CONSOLE, SEAT/TANK COVER
  • 17
    5243049 GUIDE, RECOIL
    GUIDE, RECOIL
  • 18
    7621330 RIVET
    RIVET
