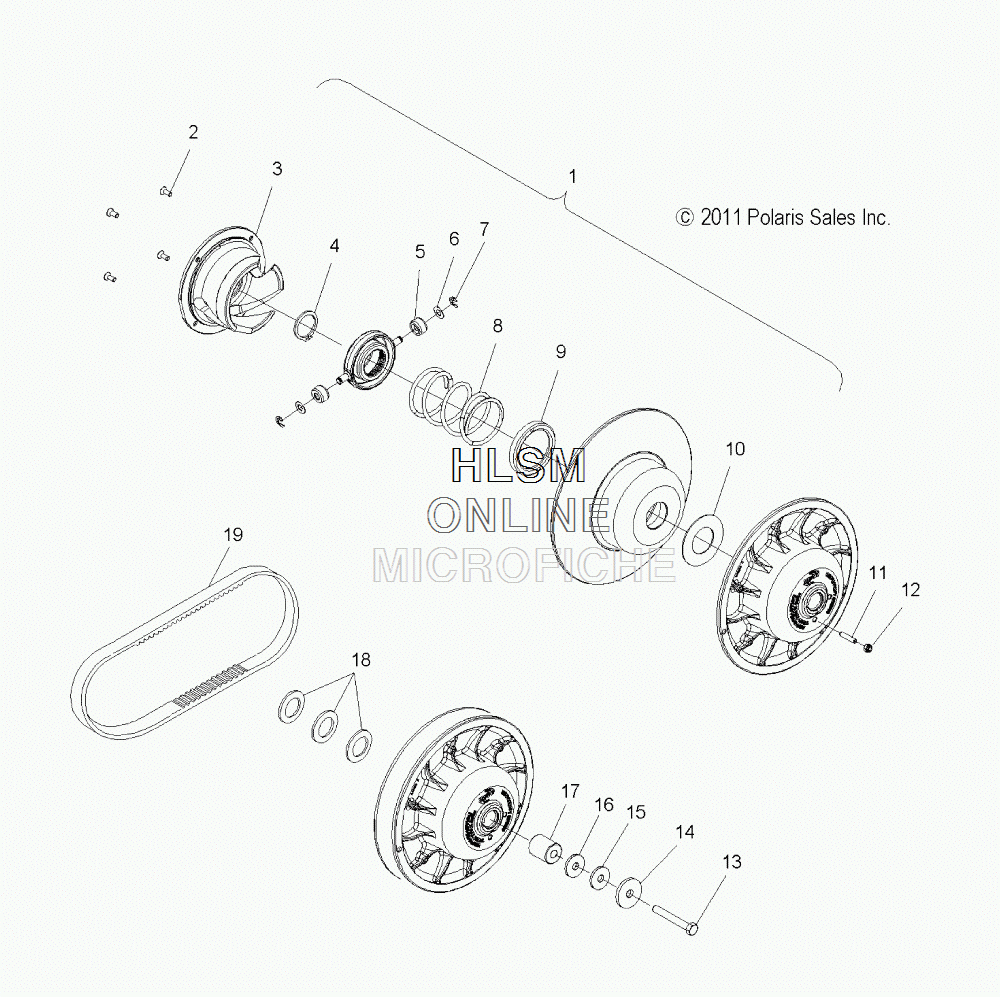

CLUTCH - SECONDARY для Polaris 800 RUSH PRO X [S15DF8PEL] - 2015 года выпуска`
-
№АртикулНазвание
-
11323231 ASM., DRIVEN CLUTCH, BASIC, LWT SPL (INCL. 4-7,9-12)ASM., DRIVEN CLUTCH, BASIC, LWT SPL (INCL. 4-7,9-12)
-
23235592 SCREWSCREW
-
35139537 RAMP, DRIVEN 58/44/36, LWTRAMP, DRIVEN 58/44/36, LWT
-
47710583 RING, RETAININGRING, RETAINING
-
55434534 ROLLERROLLER
-
67556226 WASHER, THRUSTWASHER, THRUST
-
77710523 E-RING, RETAININGE-RING, RETAINING
-
87043064 SPRING, DRIVEN CLUTCH, BLUE/BLACK, LEFT HANDSPRING, DRIVEN CLUTCH, BLUE/BLACK, LEFT HAND
-
97556728 WASHER, THRUSTWASHER, THRUST
-
107556370 WASHERWASHER
-
113234228 SCREWSCREW
-
127542103 NUT, FLEXLOCNUT, FLEXLOC
-
137519254 SCREWSCREW
-
147555846 WASHER, FLATWASHER, FLAT
-
157555832 WASHER, FLATWASHER, FLAT
-
167555806 WASHER, FLATWASHER, FLAT
-
175137323 SPACER, CLUTCHSPACER, CLUTCH
-
187555864 WASHERWASHER
-
187555917 WASHERWASHER
-
187556509 BUSHINGBUSHING
-
193211177 BELT, DRIVEBELT, DRIVE
