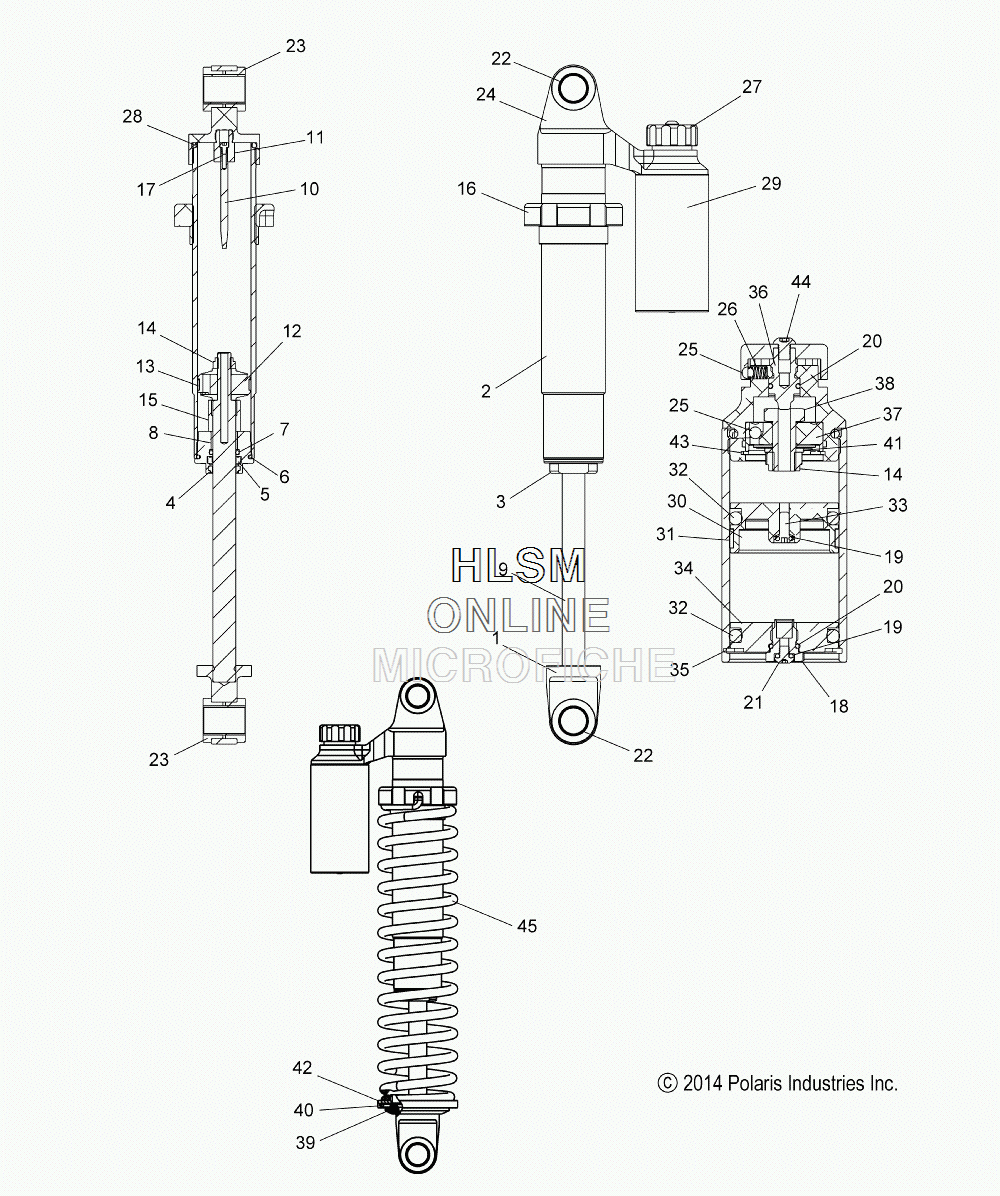

SUSPENSION - REAR SHOCK TRACK- (7043959) для Polaris 800 RUSH PRO S [S15DP8] - 2015 года выпуска
-
№АртикулНазвание
-
--7043959 SHOCK, RT, WE PIGGYBACKSHOCK, RT, WE PIGGYBACK
-
11800471 LOOP, SHAFT, .625THDLOOP, SHAFT, .625THD
-
21800651 BODY, IFSBODY, IFS
-
31800572 ASM., SEAL HEADASM., SEAL HEAD
-
41800322 WIPER, D TYPEWIPER, D TYPE
-
51800323 SHAFT SEAL, U CUPSHAFT SEAL, U CUP
-
61800027 O-RING, BODYO-RING, BODY
-
71800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
81800038 BUSHING, SHAFTBUSHING, SHAFT
-
91800428 SHAFT, NEEDLE, RTSHAFT, NEEDLE, RT
-
101800300 NEEDLE, 2.25NEEDLE, 2.25
-
111800302 BOLT, NEEDLEBOLT, NEEDLE
-
121800001 PISTON, CONVEXPISTON, CONVEX
-
131800297 WEAR BAND, TEFLONWEAR BAND, TEFLON
-
141800031 NUT, CRIMP, 3/8 INCHNUT, CRIMP, 3/8 INCH
-
151800377 SPACER, SHAFT, .850SPACER, SHAFT, .850
-
161800372 NUT, SPRING LOCKNUT, SPRING LOCK
-
171800074 SCREW, BLEED, W/O-RINGSCREW, BLEED, W/O-RING
-
181800329 NEEDLE, VALVENEEDLE, VALVE
-
191800210 O-RINGO-RING
-
201800501 O-RINGO-RING
-
211800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
221800405 SLEEVESLEEVE
-
231800406 BUSHINGBUSHING
-
241800461 LOOP, EXT. PBLOOP, EXT. PB
-
251800127 BALL, DETENTBALL, DETENT
-
261800128 SPRING, DETENTSPRING, DETENT
-
271800418 KNOB, CLICKERKNOB, CLICKER
-
281800030 O-RINGO-RING
-
291800419 BODY, RESERVOIRBODY, RESERVOIR
-
301800355 PISTON, RESERVOIR, 2 IN.PISTON, RESERVOIR, 2 IN.
-
311800185 WEAR BANDWEAR BAND
-
321800184 O-RINGO-RING
-
331800043 BLEED SCREWBLEED SCREW
-
341800420 END CAP, RES., 2 IN., BLACKEND CAP, RES., 2 IN., BLACK
-
351800159 RING, SNAPRING, SNAP
-
361800352 STUD, CLICKERSTUD, CLICKER
-
371800353 PISTON, CLICKERPISTON, CLICKER
-
381800354 BOLT, CLICKERBOLT, CLICKER
-
395137540 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
403514706 BEARING, THRUSTBEARING, THRUST
-
411800050 WASHERWASHER
-
425137541 RETAINER, THRUST BEARINGRETAINER, THRUST BEARING
-
431800359 SNAP RING, CLICKERSNAP RING, CLICKER
-
441800357 SCREW, BTNHD, SSSCREW, BTNHD, SS
-
457041575-293 SPRING, COMP., 120LB., REDSPRING, COMP., 120LB., RED
-
457041575-133 SPRING, COMP., 120LB., WHITE (LE 60TH ANNIV.)SPRING, COMP., 120LB., WHITE (LE 60TH ANNIV.)
