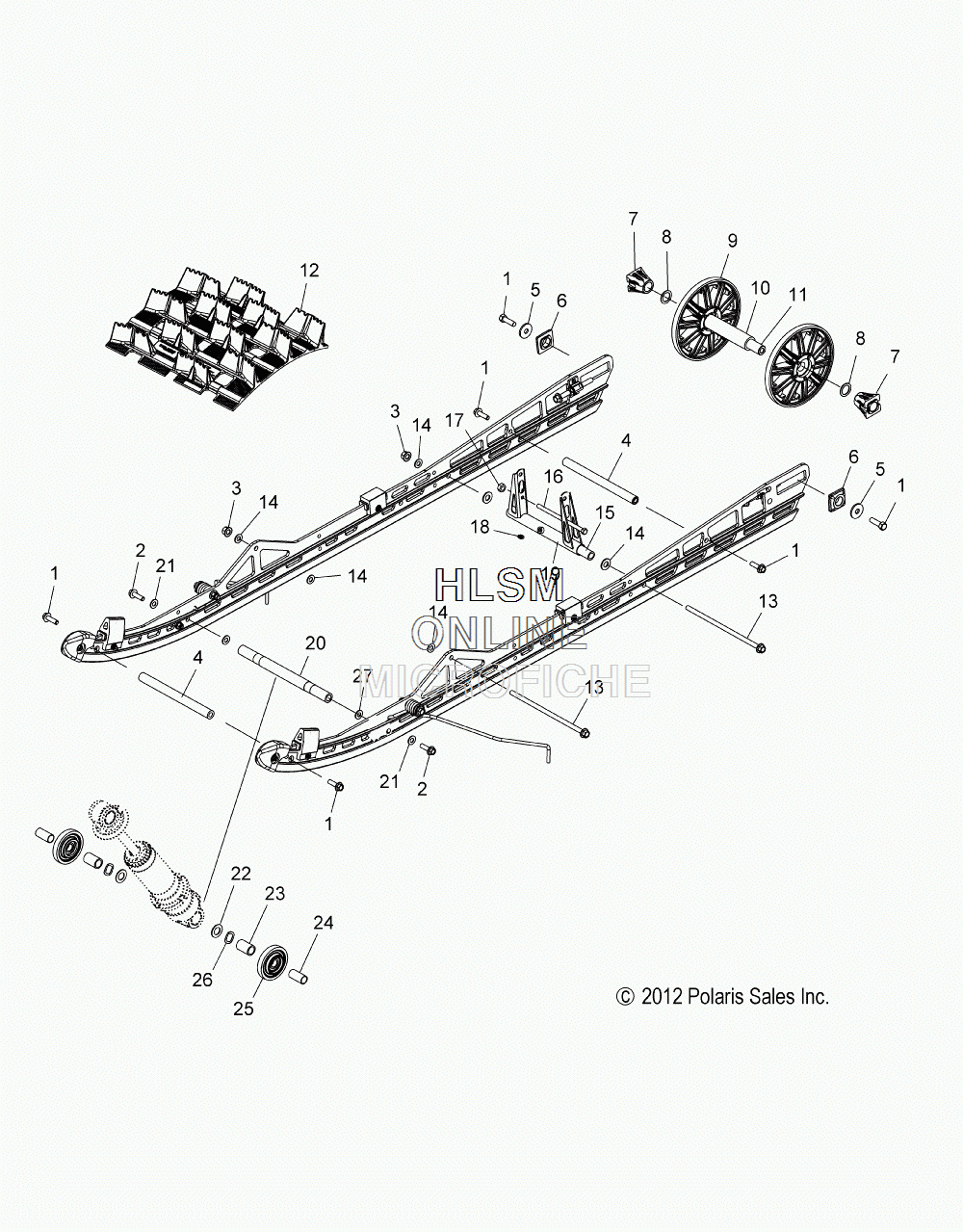

SUSPENSION - REAR для Polaris 800 PRO RMK LE 163 [S15CH8] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7518957 SCREW
    SCREW
  • 2
    7519216 SCREW
    SCREW
  • 3
    7547423 NUT, NYLOK
    NUT, NYLOK
  • 4
    5136572 SHAFT
    SHAFT
  • 5
    7556490 WASHER, SPRING
    WASHER, SPRING
  • 6
    5436496 SPACER, IDLER
    SPACER, IDLER
  • 7
    5432535 SPACER, IDLER
    SPACER, IDLER
  • 8
    7555918 BUSHING
    BUSHING
  • 9
    1590431-070 ASM., WHEEL, BLACK
    ASM., WHEEL, BLACK
  • 9
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 9
    3514384 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 10
    5333283 SPACER, IDLER, CENTER
    SPACER, IDLER, CENTER
  • 11
    5137224 SHAFT, IDLER
    SHAFT, IDLER
  • 12
    5413621 TRACK, 163 X 2.4, SINGLE LAYER
    TRACK, 163 X 2.4, SINGLE LAYER
  • 13
    7519198 SCREW
    SCREW
  • 14
    7556545 WASHER
    WASHER
  • 15
    5137418 SHAFT, CROSS
    SHAFT, CROSS
  • 16
    7519201 BOLT
    BOLT
  • 17
    7547339 NUT, FLANGE, NYLOK
    NUT, FLANGE, NYLOK
  • 18
    7080424 FITTING, LUBRICATION
    FITTING, LUBRICATION
  • 19
    1542906-329 ARM, REAR PIVOT, BLACK
    ARM, REAR PIVOT, BLACK
  • 20
    5137936 SHAFT
    SHAFT
  • 21
    7556042 WASHER
    WASHER
  • 22
    7556210 WASHER
    WASHER
  • 23
    5337107 SPACER, OUTSIDE
    SPACER, OUTSIDE
  • 24
    5337106 SPACER, OUTSIDE
    SPACER, OUTSIDE
  • 25
    1590509 ASM., WHEEL, BOGIE
    ASM., WHEEL, BOGIE
  • 25
    7710700 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 25
    3514777 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 26
    7556063 WASHER, WAVE
    WASHER, WAVE
  • 27
    7555832 WASHER
    WASHER
