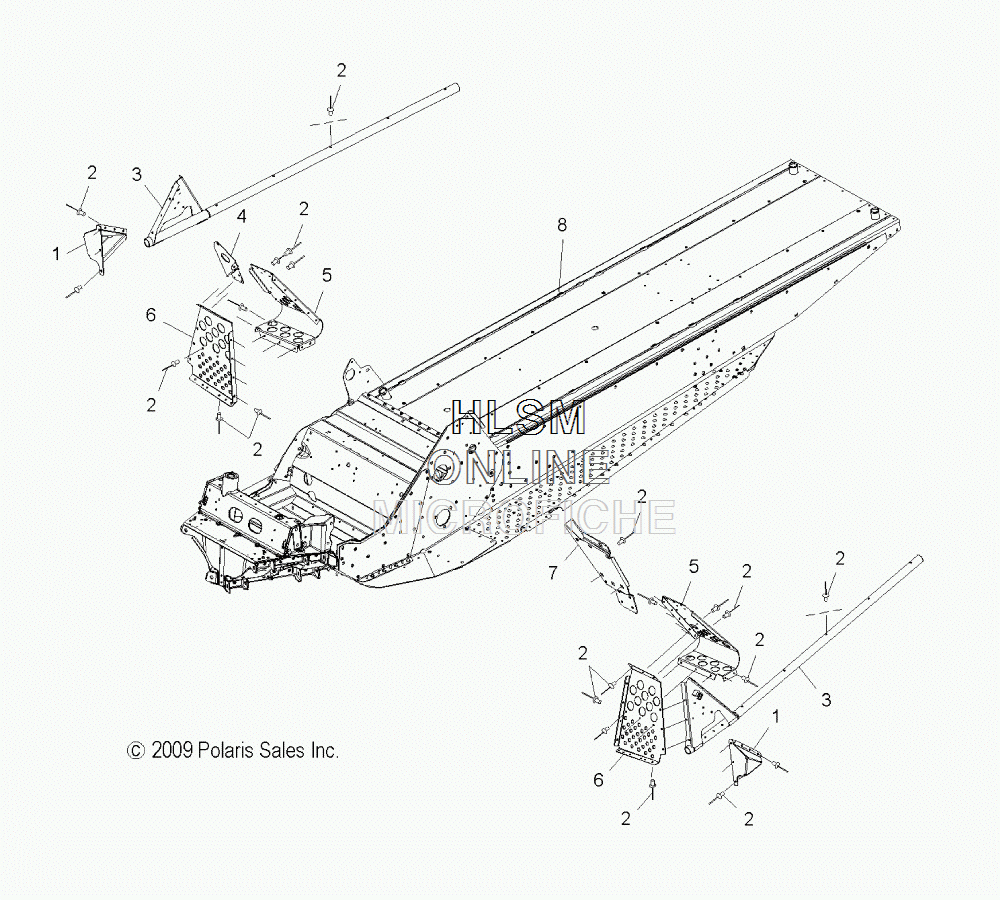

CHASSIS ASSEMBLY W/FOOTRESTS для Polaris 600 WIDETRAK IQ INTL [S15PU6NEL] - 2015 года выпуска`
-
№АртикулНазвание
-
15251825 MOUNT, PAD, ROLLOVER, LEFT HANDMOUNT, PAD, ROLLOVER, LEFT HAND
-
15252190 MOUNT, PAD, ROLLOVER, RIGHT HANDMOUNT, PAD, ROLLOVER, RIGHT HAND
-
27661637 RIVETRIVET
-
31016311-329 SUPPORT, FOOTREST, LEFT HAND, BLACKSUPPORT, FOOTREST, LEFT HAND, BLACK
-
31016312-329 SUPPORT, FOOTREST, RIGHT HAND, BLACKSUPPORT, FOOTREST, RIGHT HAND, BLACK
-
45252251 PLATE, BACKER, RIGHT HANDPLATE, BACKER, RIGHT HAND
-
55251823 FOOTREST, UPPER, LEFT HANDFOOTREST, UPPER, LEFT HAND
-
55251824 FOOTREST, UPPER, RIGHT HANDFOOTREST, UPPER, RIGHT HAND
-
65251821 FOOTREST, LOWER, LEFT HANDFOOTREST, LOWER, LEFT HAND
-
65251822 FOOTREST, LOWER, RIGHT HANDFOOTREST, LOWER, RIGHT HAND
-
75252093 MOUNT, CLUTCH GUARDMOUNT, CLUTCH GUARD
-
81017414-309 ASM., CHASSISASM., CHASSIS
