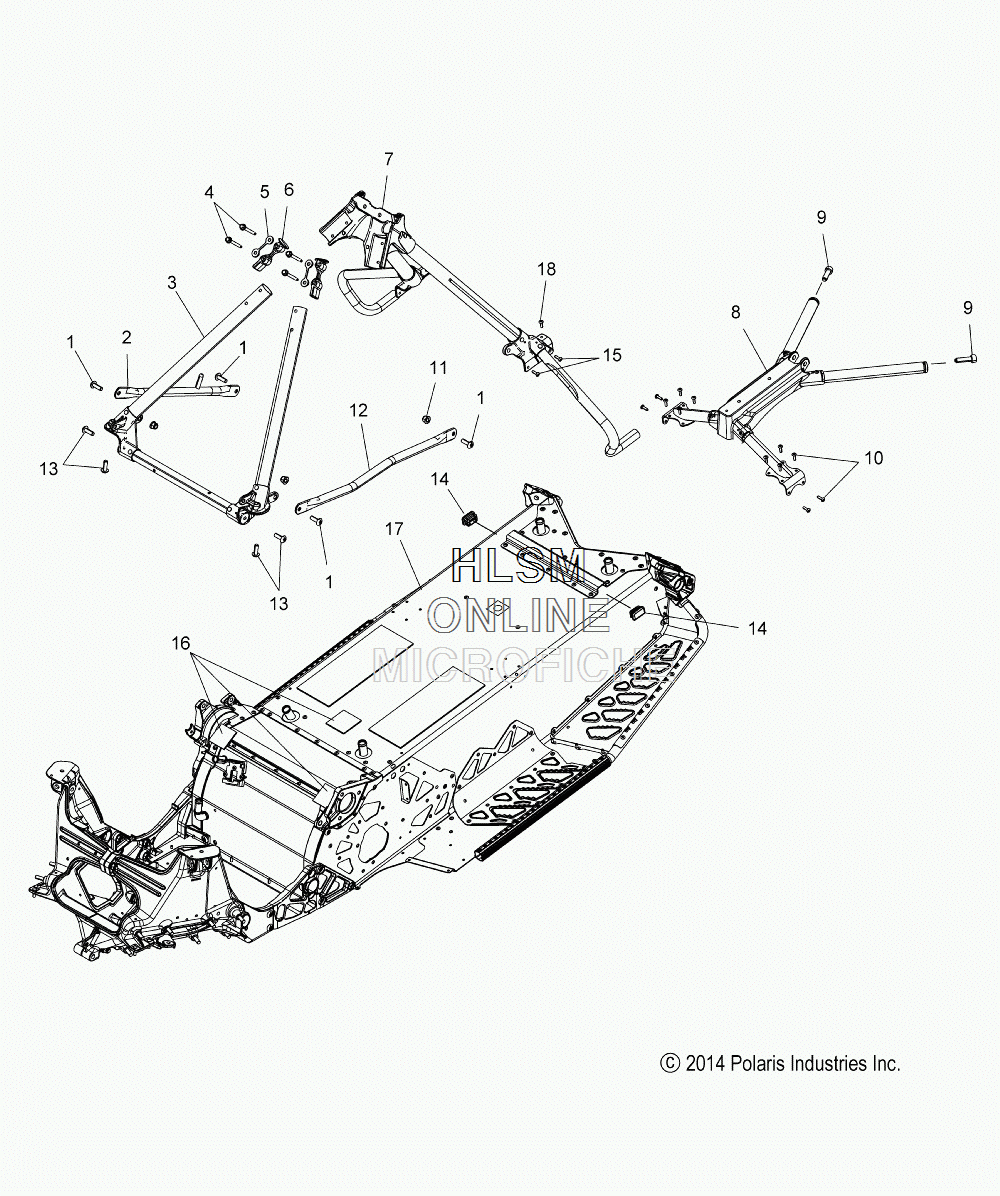

CHASSIS ASSEMBLY W/ OVER STRUCTURE для Polaris 600 SWITCHBACK PRO-X ES INTL [S15DR6PEL] - 2015 года выпуска`
-
№АртикулНазвание
-
17518906 SCREWSCREW
-
21019861-329 BRACE, TUBE, RIGHT HAND, E-COATBRACE, TUBE, RIGHT HAND, E-COAT
-
31019145 ASM., FRAME, TUBULAR, FRONT (INCL. FOIL)ASM., FRAME, TUBULAR, FRONT (INCL. FOIL)
-
35814124 FOIL, 100MMX200MMFOIL, 100MMX200MM
-
47519967 SCREWSCREW
-
55633083 SHIM, TUBE CASTSHIM, TUBE CAST
-
65632923 SPACER, TUBE CASTSPACER, TUBE CAST
-
71019146 ASM., TUBE FRAME, REARASM., TUBE FRAME, REAR
-
81020412-458 ASM., R/T SHOCK MOUNT 137, MBLACKASM., R/T SHOCK MOUNT 137, MBLACK
-
97519102 SCREWSCREW
-
107661637 RIVETRIVET
-
117547332 NUTNUT
-
125337391-329 BRACE, TUBE, LEFT HAND, E-COATBRACE, TUBE, LEFT HAND, E-COAT
-
137519070 SCREWSCREW
-
145439145 PLUG, TUNNEL SUPPORTPLUG, TUNNEL SUPPORT
-
157661130 RIVETRIVET
-
165814187 PAD, 2.5'X2.5'PAD, 2.5'X2.5'
-
171019187-1361 ASM., CHASSIS, 137 PROG., NAT/MATTE BLACKASM., CHASSIS, 137 PROG., NAT/MATTE BLACK
-
187520127 SCREW, TXBHSCREW, TXBH
