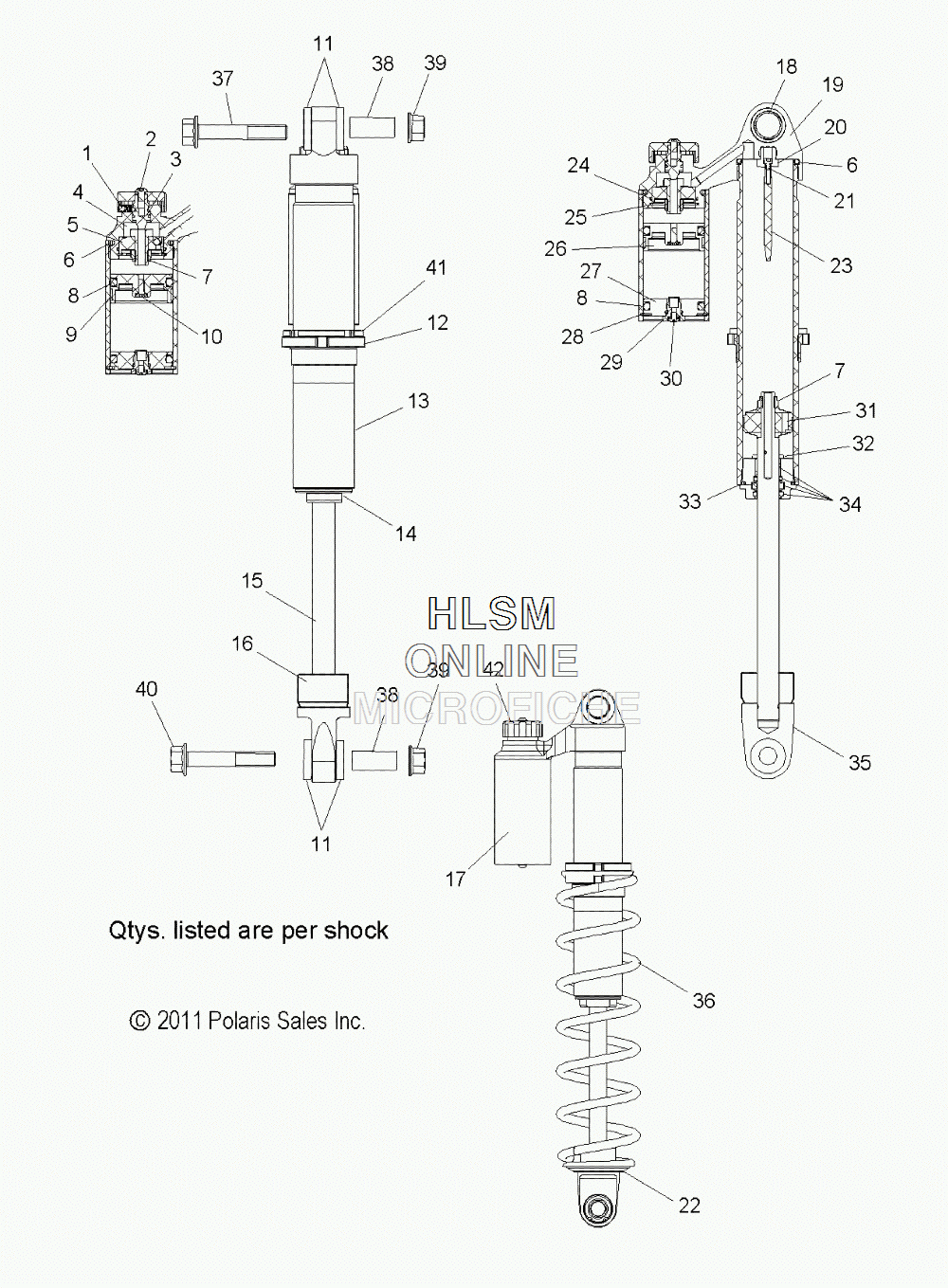

SUSPENSION - IFS SHOCK для Polaris 600 SWITCHBACK ASSAULT [S15CL6] - 2015 года выпуска`
-
№АртикулНазвание
-
--7043757 SHOCK, IFSSHOCK, IFS
-
11800127 BALL, D-TENTBALL, D-TENT
-
11800128 SPRING, D-TENTSPRING, D-TENT
-
21800357 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
31800352 STUD, CLICKERSTUD, CLICKER
-
31800215 O-RING, STUDO-RING, STUD
-
41800354 BOLT, CLICKERBOLT, CLICKER
-
51800353 PISTON, CLICKERPISTON, CLICKER
-
61800030 O-RING, BODYO-RING, BODY
-
71800031 NUT, CRIMPNUT, CRIMP
-
81800184 O-RINGO-RING
-
91800185 BAND, PISTONBAND, PISTON
-
101800043 SCREW, BLEEDSCREW, BLEED
-
101800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
111800406 BUSHINGBUSHING
-
121800046 RETAINER, SPRINGRETAINER, SPRING
-
131800470 BODY, IFS, BLACKBODY, IFS, BLACK
-
141800414 ASM., SEAL HEADASM., SEAL HEAD
-
151800469 SHAFT, NEEDLE, IFSSHAFT, NEEDLE, IFS
-
161800462 BUMPERBUMPER
-
171800419 BODY, RESERVOIRBODY, RESERVOIR
-
181800405 SLEEVESLEEVE
-
191800461 LOOP, PIGGYBACKLOOP, PIGGYBACK
-
201800301 BOLT, NEEDLEBOLT, NEEDLE
-
211800074 SCREW, BLEED W/O-RINGSCREW, BLEED W/O-RING
-
221800116 RING, SPRING RETAININGRING, SPRING RETAINING
-
231800300 NEEDLENEEDLE
-
241800358 O-RING, CLICKER HOUSINGO-RING, CLICKER HOUSING
-
251800359 RING, SNAP, CLICKERRING, SNAP, CLICKER
-
261800355 PISTON, RESERVOIRPISTON, RESERVOIR
-
271800420 CAP, END, RESERVOIR, BLACKCAP, END, RESERVOIR, BLACK
-
281800159 RING, SNAPRING, SNAP
-
291800329 VALVE, NEEDLEVALVE, NEEDLE
-
291800215 O-RING, STUDO-RING, STUD
-
301800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
301800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
311800001 PISTON, CONVEXPISTON, CONVEX
-
311800297 BAND, WEARBAND, WEAR
-
321800050 WASHERWASHER
-
331800027 O-RING, BODYO-RING, BODY
-
341800038 BUSHING, SHAFTBUSHING, SHAFT
-
341800037 O-RING, SHAFT SEAL HEADO-RING, SHAFT SEAL HEAD
-
341800323 SEAL, U-CUPSEAL, U-CUP
-
341800322 WIPER, D-TYPEWIPER, D-TYPE
-
351800471 LOOP, SHAFTLOOP, SHAFT
-
367043460-133 SPRING, COMPRESSION, 100# WHITESPRING, COMPRESSION, 100# WHITE
-
367043460-293 SPRING, COMPRESSION, 100# INDY REDSPRING, COMPRESSION, 100# INDY RED
-
367043460-458 SPRING, COMPRESSION, 100# MBLACKSPRING, COMPRESSION, 100# MBLACK
-
377518941 SCREWSCREW
-
385137360 BUSHINGBUSHING
-
397547423 NUT, NYLOKNUT, NYLOK
-
407518971 SCREWSCREW
-
411800465 NUT, JAMNUT, JAM
-
421800418 KNOB, CLICKER, BLACKKNOB, CLICKER, BLACK
