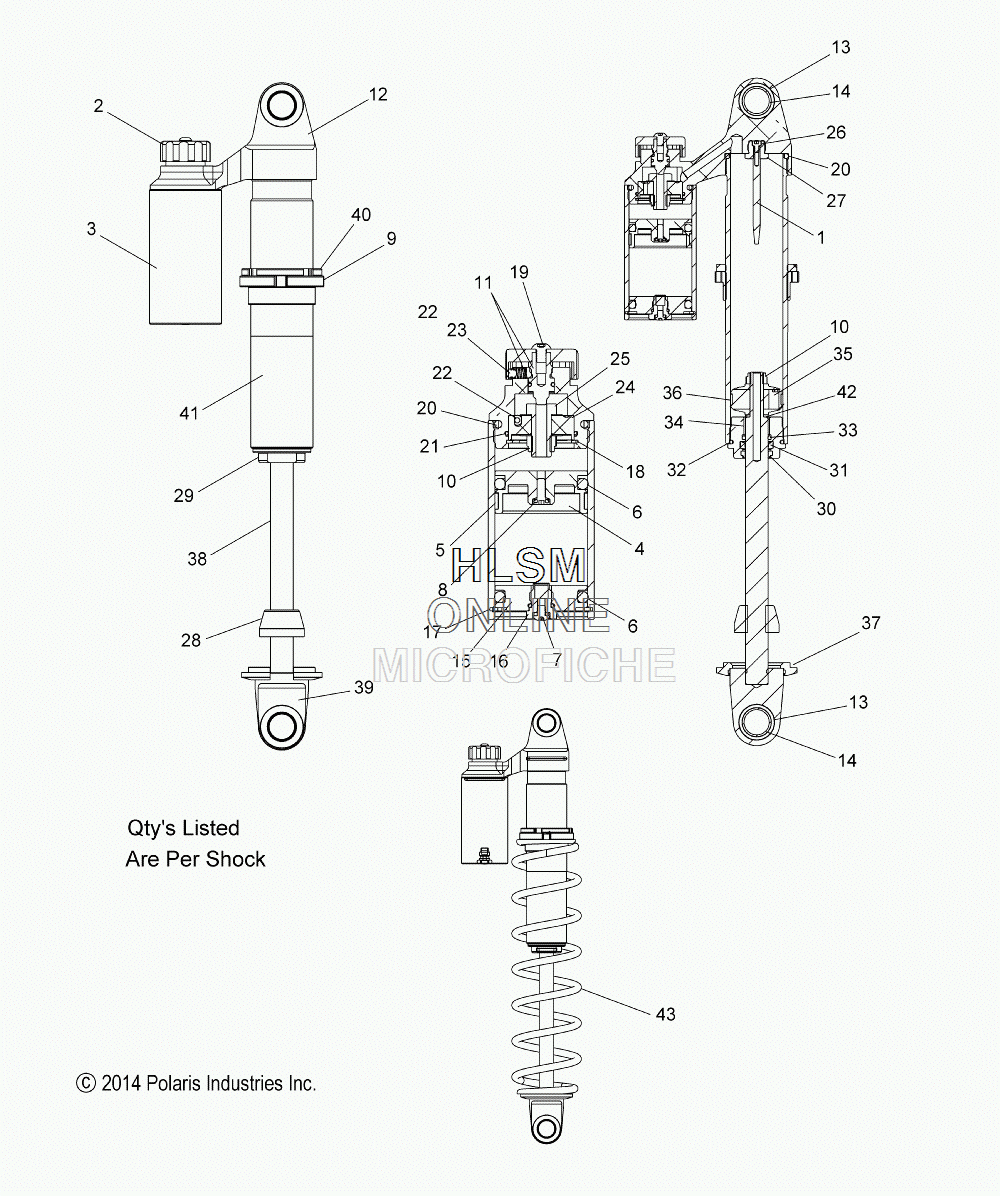

SUSPENSION - IFS SHOCK (7044120) для Polaris 600 SWITCHBACK ADVENTURE [S15DA6PSM] - 2015 года выпуска
-
№АртикулНазвание
-
--7044120 SHOCK, IFS, WE NEEDLE, PBSHOCK, IFS, WE NEEDLE, PB
-
11800300 NEEDLE, 2.25NEEDLE, 2.25
-
21800418 KNOB, CLICKERKNOB, CLICKER
-
31800419 BODY, RESERVOIR, 2', 3.75LBODY, RESERVOIR, 2', 3.75L
-
41800355 PISTON, RESERVOIR, 2'PISTON, RESERVOIR, 2'
-
51800185 BAND, PISTONBAND, PISTON
-
61800184 O-RINGO-RING
-
71800109 SCREW, BTN HDSCREW, BTN HD
-
71800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
81800043 BLEED SCREWBLEED SCREW
-
81800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
91800046 RETAINER, SPRINGRETAINER, SPRING
-
101800031 CRIMP NUT, 3/8'CRIMP NUT, 3/8'
-
111800352 STUD, CLICKERSTUD, CLICKER
-
121800461 LOOP, PIGGY BACKLOOP, PIGGY BACK
-
131800406 BUSHINGBUSHING
-
141800405 SLEEVE, 1.15LSLEEVE, 1.15L
-
151800420 END CAP, RESERVOIR, 2' BLACKEND CAP, RESERVOIR, 2' BLACK
-
161800329 NEEDLE VALVENEEDLE VALVE
-
161800501 O-RINGO-RING
-
171800159 SNAP RING, 1.75 IDSNAP RING, 1.75 ID
-
181800359 SNAP RING, 1.25 IDSNAP RING, 1.25 ID
-
191800357 SCREW, BTN HD, 10/32SCREW, BTN HD, 10/32
-
201800030 O-RINGO-RING
-
211800358 O-RINGO-RING
-
221800127 BALL, DETENTBALL, DETENT
-
231800128 SPRING, DETENTSPRING, DETENT
-
241800353 PISTON, CLICKERPISTON, CLICKER
-
251800354 BOLT, CLICKER PISTONBOLT, CLICKER PISTON
-
261800074 SCREW SCHDSCREW SCHD
-
271800301 NEEDLE BOLTNEEDLE BOLT
-
281800462 BUMPER, JOUNCEBUMPER, JOUNCE
-
291800572 SEAL HEAD, .625 SHAFTSEAL HEAD, .625 SHAFT
-
301800322 WIPER, SEAL, YELLOWWIPER, SEAL, YELLOW
-
311800323 SEALSEAL
-
321800027 O-RINGO-RING
-
331800037 O-RINGO-RING
-
341800038 BUSHING, SHAFTBUSHING, SHAFT
-
351800001 PISTON, CONVEX, .063 BLEEDPISTON, CONVEX, .063 BLEED
-
361800297 WEAR BANDWEAR BAND
-
371800116 CLIP, SPRINGCLIP, SPRING
-
381800464 NEEDLE SHAFT, IFSNEEDLE SHAFT, IFS
-
391800471 LOOP, SHAFTLOOP, SHAFT
-
401800465 NUT, JAMNUT, JAM
-
411800463 BODY, SHOCK, IFSBODY, SHOCK, IFS
-
421800050 WASHERWASHER
-
437043732-133 SPRING, COMP., 80#, WHITESPRING, COMP., 80#, WHITE
