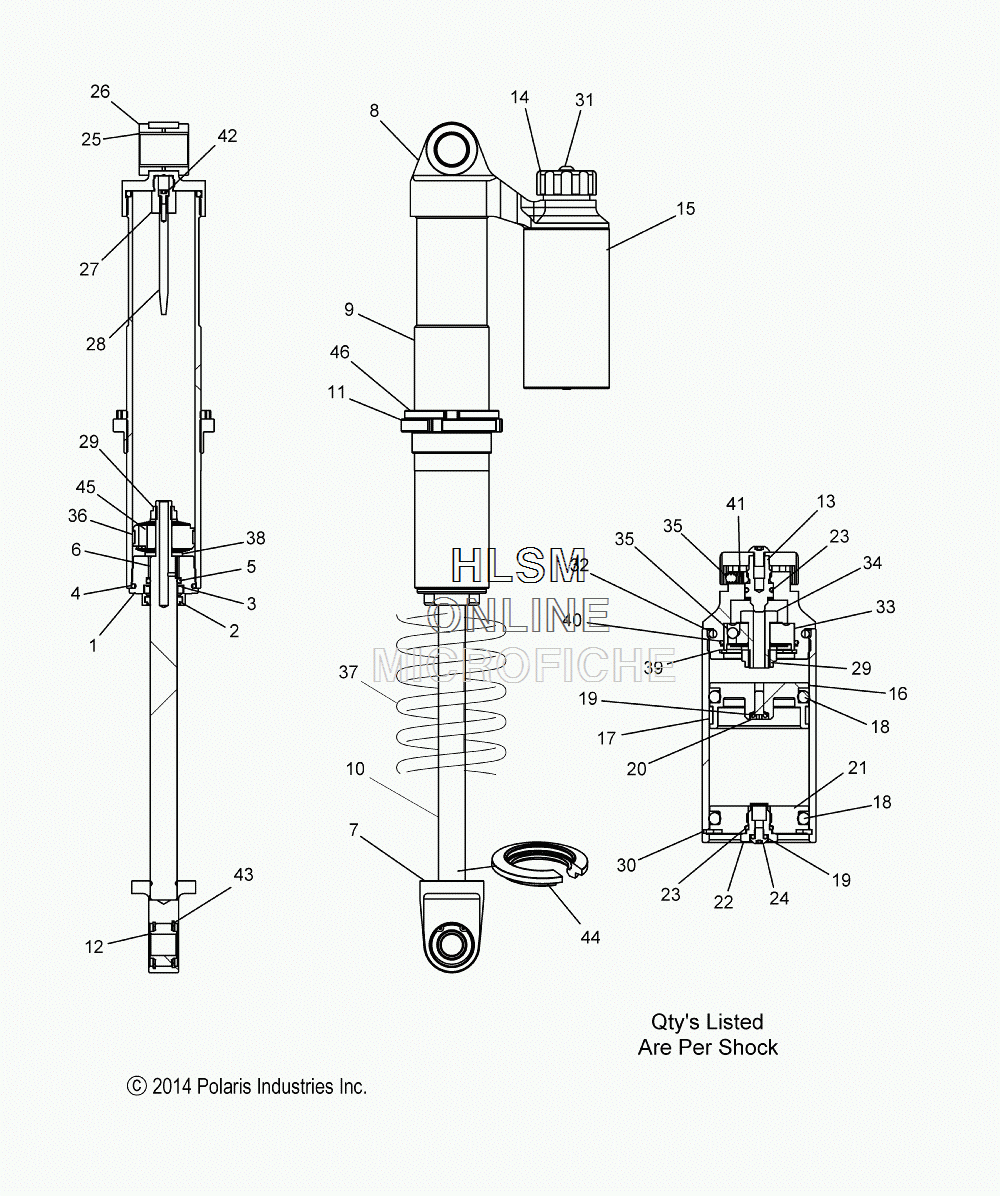

SUSPENSION - IFS SHOCK (7044288) для Polaris 600 SWITCHBACK ADVENTURE [S15DA6PEL] - 2015 года выпуска`
-
№АртикулНазвание
-
--7044288 SHOCK, IFS, WE NEEDLE, PBSHOCK, IFS, WE NEEDLE, PB
-
11800572 ASM., SEAL HEADASM., SEAL HEAD
-
21800322 WIPER, SEAL, YELLOWWIPER, SEAL, YELLOW
-
31800323 SEALSEAL
-
41800027 O-RINGO-RING
-
51800037 O-RINGO-RING
-
61800038 BUSHING, SHAFTBUSHING, SHAFT
-
71800422 LOOP, SHAFTLOOP, SHAFT
-
81800424 LOOP, PIGGY BACKLOOP, PIGGY BACK
-
91800652 BODY, IFS, 9.295LBODY, IFS, 9.295L
-
101800423 SHAFT, NEEDLE, IFSSHAFT, NEEDLE, IFS
-
111800046 RETAINER, SPRINGRETAINER, SPRING
-
121800040 END BEARINGEND BEARING
-
131800352 STUD, CLICKERSTUD, CLICKER
-
141800418 KNOB, CLICKER, BLACK.KNOB, CLICKER, BLACK.
-
151800419 BODY, RESERVOIR, 3.75L, BLACK.BODY, RESERVOIR, 3.75L, BLACK.
-
161800355 PISTON, RESERVOIR, 2'PISTON, RESERVOIR, 2'
-
171800185 WEAR BANDWEAR BAND
-
181800184 O-RINGO-RING
-
191800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
201800043 BLEED SCREWBLEED SCREW
-
211800420 END CAP, RES., 2'END CAP, RES., 2'
-
221800329 NEEDLE VALVENEEDLE VALVE
-
231800501 O-RINGO-RING
-
241800109 SCREW, BTN HDSCREW, BTN HD
-
251800405 SLEEVE, 1.15LSLEEVE, 1.15L
-
261800406 BUSHINGBUSHING
-
271800302 NEEDLE BOLTNEEDLE BOLT
-
281800300 NEEDLENEEDLE
-
291800031 CRIMP NUT, 3/8CRIMP NUT, 3/8
-
301800159 SNAP RINGSNAP RING
-
311800357 SCREW, BTNHD, #10SCREW, BTNHD, #10
-
321800030 O-RING, BODYO-RING, BODY
-
331800353 PISTON, CLICKERPISTON, CLICKER
-
341800354 BOLT, CLICKERBOLT, CLICKER
-
351800127 BALL, DETENTBALL, DETENT
-
361800297 WEAR BANDWEAR BAND
-
377041576-293 SPRING, COMP., IFS, 100#, REDSPRING, COMP., IFS, 100#, RED
-
381800050 WASHER, 3/8' ANWASHER, 3/8' AN
-
391800359 RING, RETAININGRING, RETAINING
-
401800358 O-RINGO-RING
-
411800128 SPRING, DETENTSPRING, DETENT
-
421800074 SCREW, BLEED W/O-RINGSCREW, BLEED W/O-RING
-
431800041 SNAP RING, END BEARINGSNAP RING, END BEARING
-
441800116 SPRING CLIPSPRING CLIP
-
451800001 PISTONPISTON
-
461800465 JAM NUTJAM NUT
