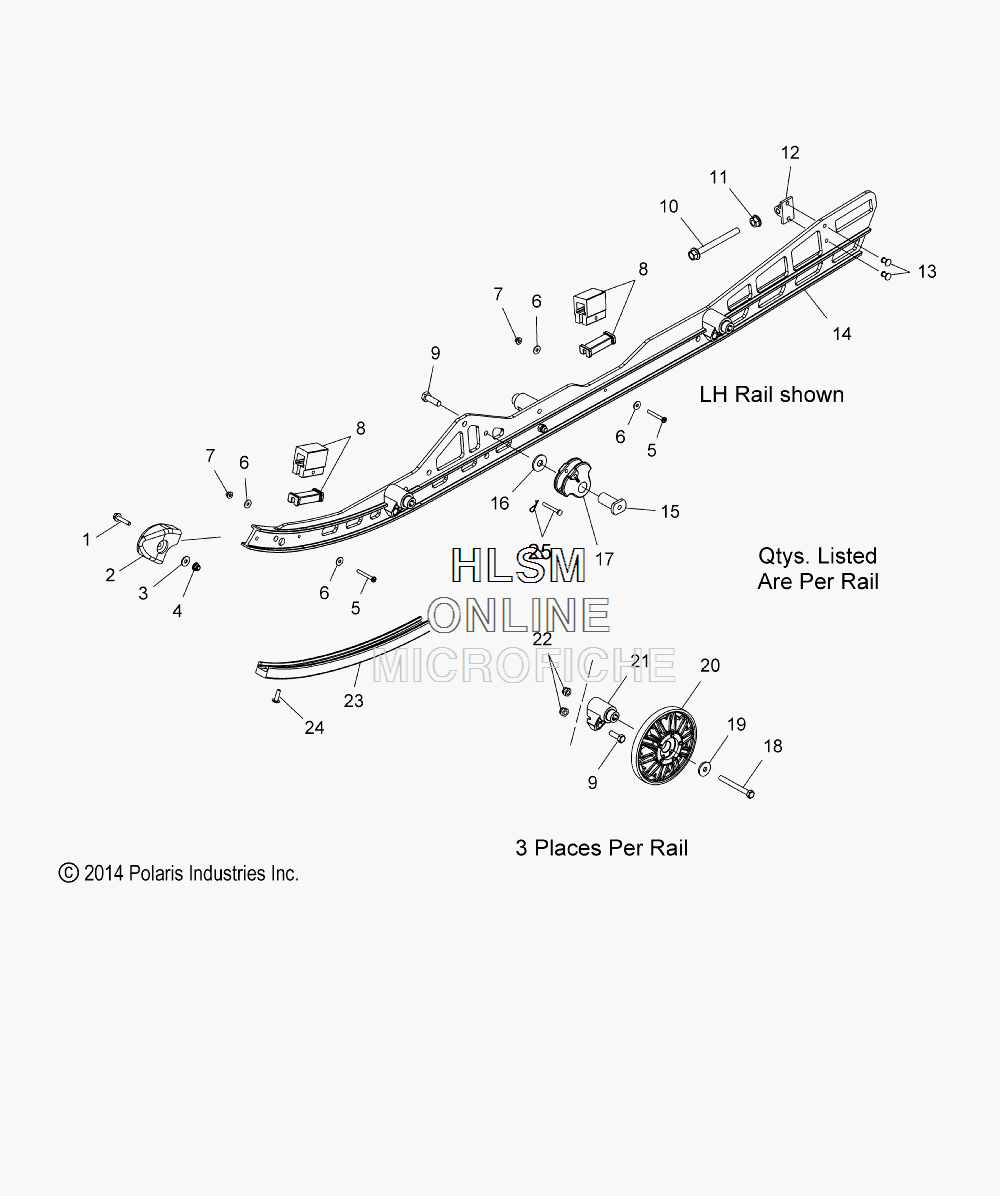

SUSPENSION - RAIL MOUNTING для Polaris 600 RMK 144 [S15CK6] - 2015 года выпуска

  • №
    Артикул
    Название
  • 1
    7518993 SCREW
    SCREW
  • 2
    5438374 CAP, RAIL TIP
    CAP, RAIL TIP
  • 3
    7556064 WASHER, FLAT
    WASHER, FLAT
  • 4
    7547339 NUT, NYLOK
    NUT, NYLOK
  • 5
    7510504 SCREW
    SCREW
  • 6
    7555783 WASHER, FLAT
    WASHER, FLAT
  • 7
    7541925 NUT, NYLOK
    NUT, NYLOK
  • 8
    5521498 BUMPER, JOUNCE, REAR
    BUMPER, JOUNCE, REAR
  • 8
    5432946 LINER, BUMPER
    LINER, BUMPER
  • 9
    7515317 SCREW
    SCREW
  • 10
    7517227 SCREW
    SCREW
  • 11
    7542404 NUT
    NUT
  • 12
    5130530 BLOCK, IDLER BOLT ADJUSTABLE
    BLOCK, IDLER BOLT ADJUSTABLE
  • 13
    7621501 RIVET
    RIVET
  • 14
    1543373 ASM., RAIL, 144, LEFT HAND (INCL. 1-8,12,13)
    ASM., RAIL, 144, LEFT HAND (INCL. 1-8,12,13)
  • 14
    1543374 ASM., RAIL, 144, RIGHT HAND (INCL. 1-8,12,13)
    ASM., RAIL, 144, RIGHT HAND (INCL. 1-8,12,13)
  • 15
    5136368 MOUNT, TORSION SPRING
    MOUNT, TORSION SPRING
  • 16
    7555983 WASHER
    WASHER
  • 17
    5434334 GUIDE, SPRING SQUARE
    GUIDE, SPRING SQUARE
  • 18
    7515346 SCREW
    SCREW
  • 19
    7556387 WASHER
    WASHER
  • 20
    1590434-070 ASM., WHEEL, WEB, BLACK
    ASM., WHEEL, WEB, BLACK
  • 20
    3514384 BEARING (1 PER WHEEL)
    BEARING (1 PER WHEEL)
  • 20
    7710444 RING, RETAINING (1 PER WHEEL)
    RING, RETAINING (1 PER WHEEL)
  • 21
    5631446 BLOCK, WHEEL MOUNT
    BLOCK, WHEEL MOUNT
  • 22
    7542324 NUT, NYLOK
    NUT, NYLOK
  • 23
    5521633 HI-FAX
    HI-FAX
  • 24
    7515199 SCREW
    SCREW
  • 25
    7661123 PIN, CLEVIS
    PIN, CLEVIS
  • 25
    7661644 PIN, HITCH
    PIN, HITCH
