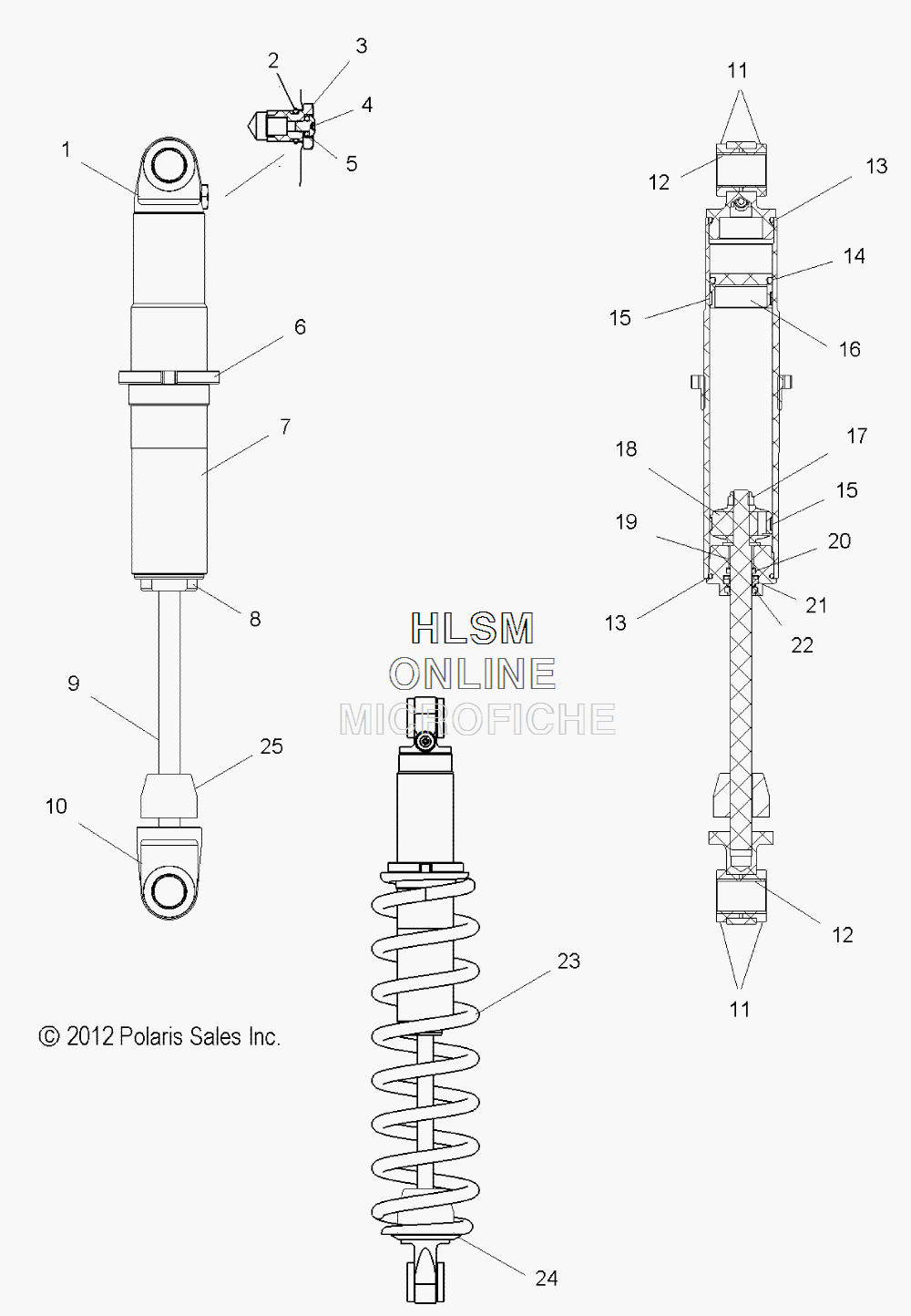

SUSPENSION - REAR SHOCK TRACK (7043834) для Polaris 600 PRO RMK LE 155 [S15CG6] - 2015 года выпуска`
-
№АртикулНазвание
-
--7043834 SHOCK, REAR TRACK, WALKER EVANS, COIL-OVERSHOCK, REAR TRACK, WALKER EVANS, COIL-OVER
-
11800404 LOOP, BODYLOOP, BODY
-
21800215 O-RINGO-RING
-
31800329 NEEDLE VALVENEEDLE VALVE
-
41800109 SCREW, BUTTON HEADSCREW, BUTTON HEAD
-
51800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
61800402 RETAINER, SPRINGRETAINER, SPRING
-
71800399 BODYBODY
-
81800403 ASM., SEAL HEADASM., SEAL HEAD
-
91800400 SHAFTSHAFT
-
101800401 LOOP, SHAFTLOOP, SHAFT
-
111800406 BUSHINGBUSHING
-
121800405 SLEEVESLEEVE
-
131800027 O-RING, BODYO-RING, BODY
-
141800028 O-RING, RESERVOIRO-RING, RESERVOIR
-
151800297 WEAR BAND, TEFLONWEAR BAND, TEFLON
-
161800348 PISTON, RES. IFPPISTON, RES. IFP
-
171800031 NUT, CRIMPNUT, CRIMP
-
181800001 PISTONPISTON
-
191800292 BUSHING, SHAFTBUSHING, SHAFT
-
201800095 O-RINGO-RING
-
211800294 SEAL, U-CUPSEAL, U-CUP
-
221800295 SEAL, WIPERSEAL, WIPER
-
237043714-133 SPRING, COMPRESSION, 210#, BRIGHT WHITE (STD)SPRING, COMPRESSION, 210#, BRIGHT WHITE (STD)
-
237043714-293 SPRING, COMPRESSION, 210#, INDY RED (LE)SPRING, COMPRESSION, 210#, INDY RED (LE)
-
237043714-458 SPRING, COMPRESSION, 210#, BLACK (LE)SPRING, COMPRESSION, 210#, BLACK (LE)
-
237043740-067 SPRING, COMPRESSION, 250#, BLACK (OPT)SPRING, COMPRESSION, 250#, BLACK (OPT)
-
241800538 RING, SPRING RETAINERRING, SPRING RETAINER
-
251800537 BUMPERBUMPER
