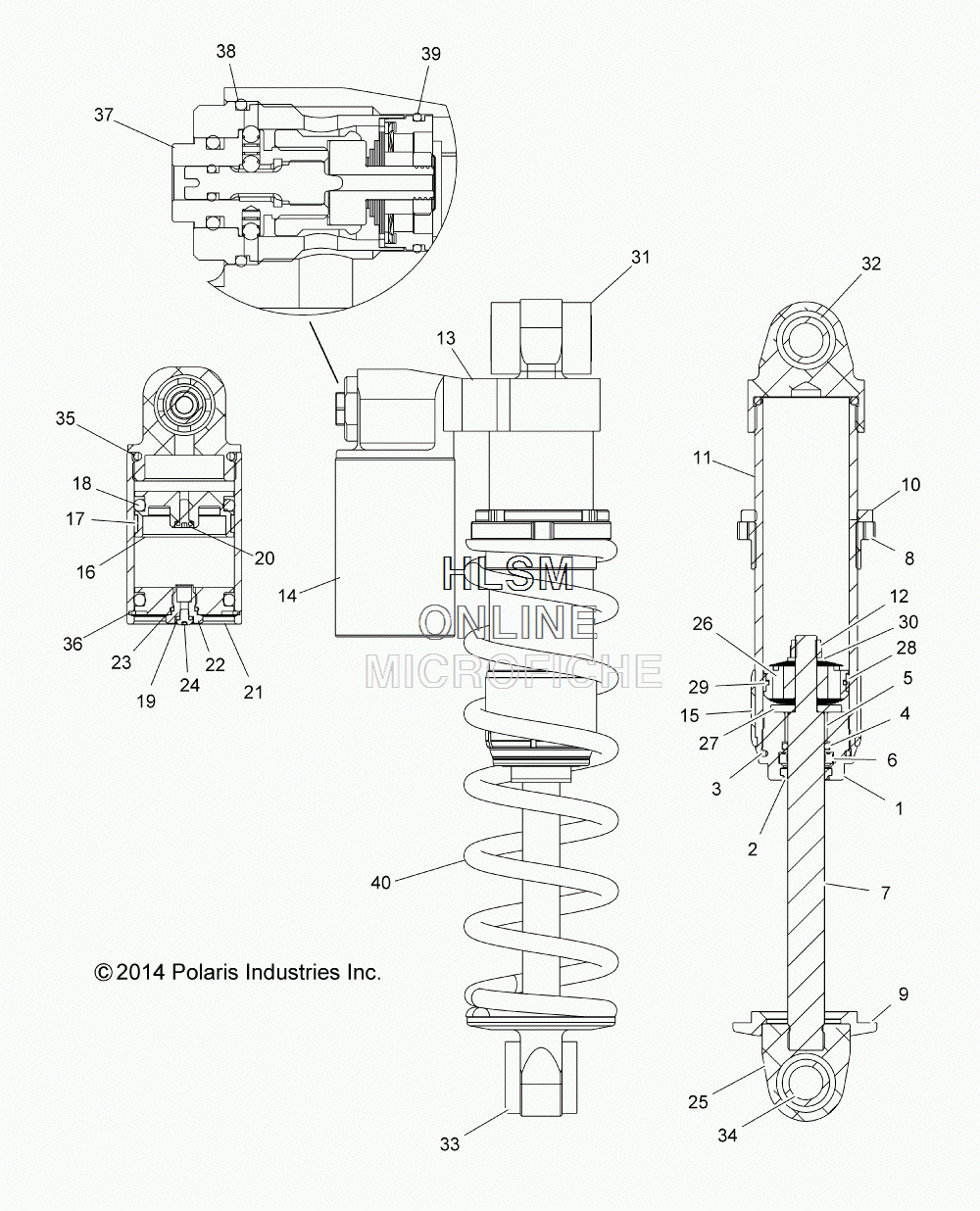

SUSPENSION - FRONT SHOCK TRACK для Polaris 600 IQ RACER [S15MX6JSA] - 2015 года выпуска
-
№АртикулНазвание
-
--7044347 SHOCK, FRONT TRACK, WALKER EVANS (INCL.1-56 )SHOCK, FRONT TRACK, WALKER EVANS (INCL.1-56 )
-
11800572 ASM., SEAL HEADASM., SEAL HEAD
-
21800322 WIPER, D TYPEWIPER, D TYPE
-
31800027 O-RING, BODYO-RING, BODY
-
41800037 O-RING, SHAFT, SEAL HEADO-RING, SHAFT, SEAL HEAD
-
51800038 BUSHING, SHAFTBUSHING, SHAFT
-
61800559 SEAL, U CUPSEAL, U CUP
-
71800561 SHAFTSHAFT
-
81800046 SPRING NUTSPRING NUT
-
91800449 CLIP, SPRINGCLIP, SPRING
-
101800465 NUT, JAMNUT, JAM
-
111800689 BODY, FT, BLACK.BODY, FT, BLACK.
-
121800031 NUT, CRIMPNUT, CRIMP
-
131800690 PIGGYBACK, 90 DEG., HS-LSPIGGYBACK, 90 DEG., HS-LS
-
141800691 BODY, RES., FT, 3.0L, BLACKBODY, RES., FT, 3.0L, BLACK
-
151800692 WEAR BAND, SPRING GUIDEWEAR BAND, SPRING GUIDE
-
161800355 PISTON, RES., 2'PISTON, RES., 2'
-
171800185 WEAR BAND, 1.75 O.D.WEAR BAND, 1.75 O.D.
-
181800184 O-RING, 2-324O-RING, 2-324
-
191800210 O-RING, BLEED SCREWO-RING, BLEED SCREW
-
201800043 BLEED SCREWBLEED SCREW
-
211800420 END CAP, RES., 2', BLACKEND CAP, RES., 2', BLACK
-
221800329 VALVE, NEEDLEVALVE, NEEDLE
-
231800501 O-RINGO-RING
-
241800109 SCREW, BUTTON HEAD, 8/32SCREW, BUTTON HEAD, 8/32
-
251800472 LOOP, SHAFTLOOP, SHAFT
-
261800001 PISTON, CONVES, 1.750PISTON, CONVES, 1.750
-
271800694 WASHER, .38X.12X1.2WASHER, .38X.12X1.2
-
281800297 WEAR BAND, 1.460 ODWEAR BAND, 1.460 OD
-
291800693 O-RING, 2-025O-RING, 2-025
-
301800050 WASHER, 3/8 ANWASHER, 3/8 AN
-
311800033 BUSHING, URETHANEBUSHING, URETHANE
-
321800039 SLEEVE, 1.685'LSLEEVE, 1.685'L
-
331800036 BUSHING, URETHANEBUSHING, URETHANE
-
341800032 SLEEVE, 1.202'LSLEEVE, 1.202'L
-
351800030 O-RING, BODYO-RING, BODY
-
361800159 RING, SNAPRING, SNAP
-
371800710 ASM., H/L SPEED ADJ.ASM., H/L SPEED ADJ.
-
381800680 O-RING, 2.0X24.5MMO-RING, 2.0X24.5MM
-
391800679 O-RING, 1.5X21.5MMO-RING, 1.5X21.5MM
-
407044359-067 SPRING, COMP., .312X8, 180#, BLACK (STOCK)SPRING, COMP., .312X8, 180#, BLACK (STOCK)
-
407044440-067 SPRING, COMP., 200# (OPT.)SPRING, COMP., 200# (OPT.)
-
407044441-067 SPRING, COMP., 190# (OPT.)SPRING, COMP., 190# (OPT.)
-
407044442-067 SPRING, COMP., 165# (OPT.)SPRING, COMP., 165# (OPT.)
