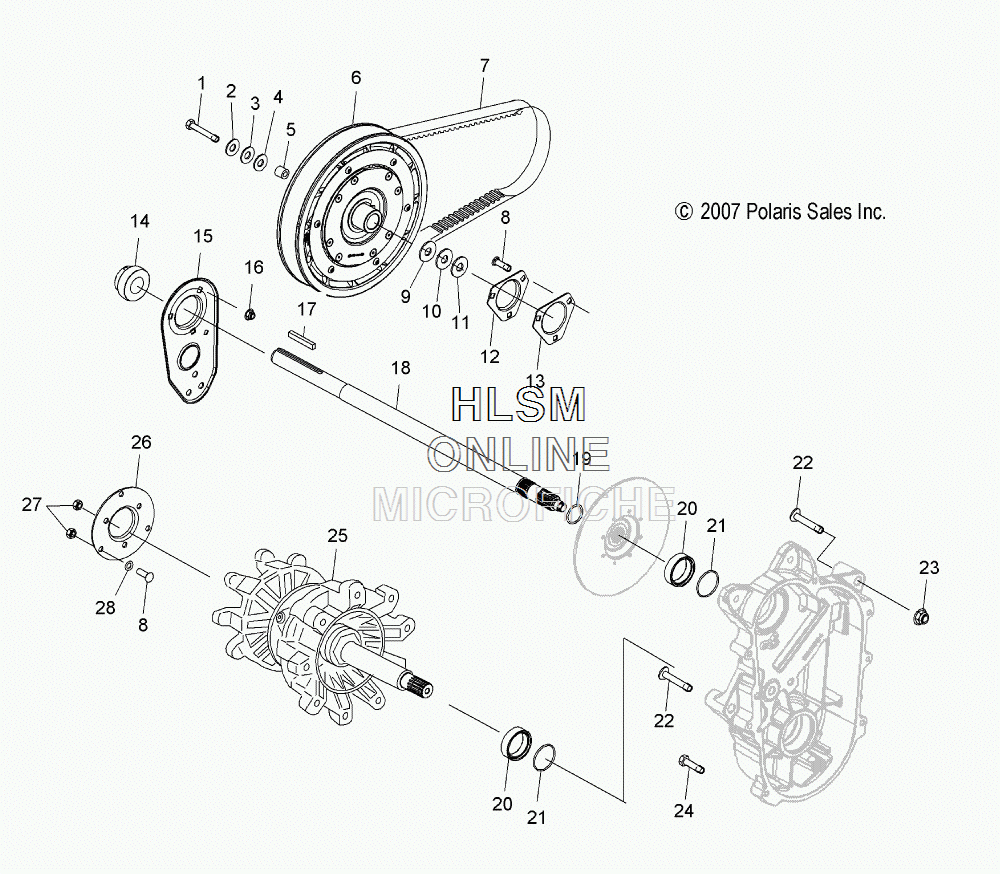

JACKSHAFT ASSEMBLY для Polaris 600 IQ RACER INTL [S15MX6JEA] - 2015 года выпуска`
-
№АртикулНазвание
-
17517581 BOLTBOLT
-
27555701 WASHER, FLAT, .343X1.25X.134WASHER, FLAT, .343X1.25X.134
-
37555734 WASHER, FLAT, .344X.875X.063WASHER, FLAT, .344X.875X.063
-
47555957 WASHER, .380X.843X.047WASHER, .380X.843X.047
-
55135621 SPACER, INPUT SHAFTSPACER, INPUT SHAFT
-
73211114 BELT, DRIVEBELT, DRIVE
-
87512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
97555917 WASHER, 1.00X1.25X.023WASHER, 1.00X1.25X.023
-
107555864 WASHER, 1.00X1.25X.120WASHER, 1.00X1.25X.120
-
117556509 BUSHING, 1.00X1.25X16GA.BUSHING, 1.00X1.25X16GA.
-
125248544 FLANGETTEFLANGETTE
-
135812714 GASKET, JACKSHAFTGASKET, JACKSHAFT
-
143514338 BEARINGBEARING
-
155248263-067 FLANGETTE, JACKSHAFT, BLACKFLANGETTE, JACKSHAFT, BLACK
-
167542343 NUT, FLANGENUT, FLANGE
-
177710585 KEYKEY
-
181332294 ASM., JACKSHAFT (INCL. 19)ASM., JACKSHAFT (INCL. 19)
-
197710422 RING, RETAININGRING, RETAINING
-
205020588 SLEEVE, SEALSLEEVE, SEAL
-
215410613 O-RINGO-RING
-
227518367 BOLT, CARRIAGEBOLT, CARRIAGE
-
237547180 NUT, FLANGEDNUT, FLANGED
-
247517632 SCREWSCREW
-
251590492 ASM., DRIVE SHAFTASM., DRIVE SHAFT
-
251014299 ASM., FLANGETTE W/SCREWSASM., FLANGETTE W/SCREWS
-
253514626 BEARINGBEARING
-
265249151 FLANGETTEFLANGETTE
-
277542324 NUT, NYLOKNUT, NYLOK
-
287547030 PALNUTPALNUT
