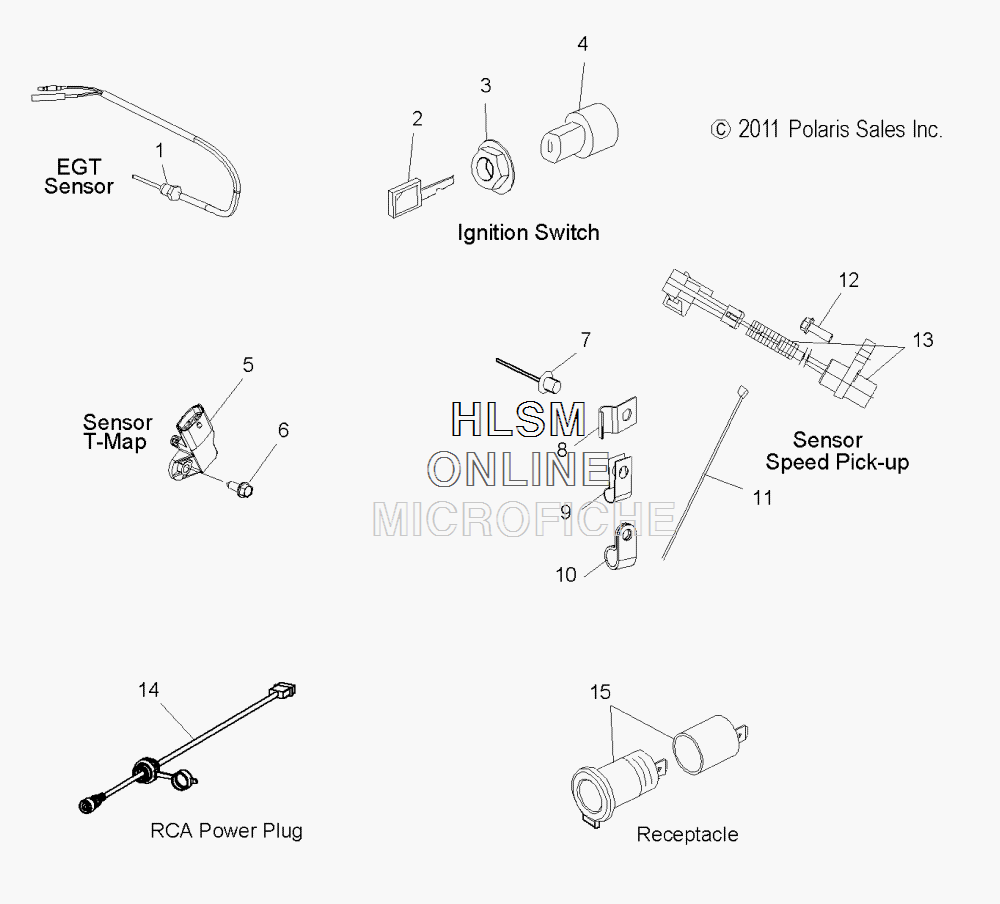

ELECTRICAL - SWITCHES AND SENSORS W/ POWER PLUG для Polaris 600 IQ LXT INTL [S15PT6HEL] - 2015 года выпуска`
-
№АртикулНазвание
-
14013133 SENSOR, EGTSENSOR, EGT
-
25410611 CAP W/KEYCAP W/KEY
-
37547035 NUT, IGNITIONNUT, IGNITION
-
42205055 KIT, IGNITION, SWITCH COMP., PLATEDKIT, IGNITION, SWITCH COMP., PLATED
-
52410422 SENSOR, T-MAPSENSOR, T-MAP
-
67512095 SCREWSCREW
-
77661637 RIVETRIVET
-
87080963 J-CLIPJ-CLIP
-
97080367 CLAMP, CABLECLAMP, CABLE
-
107080960 CLAMP, CABLE, NYLONCLAMP, CABLE, NYLON
-
117080138 CABLE TIECABLE TIE
-
127512232 SCREWSCREW
-
132410376 SENSOR, SPEED PICK-UPSENSOR, SPEED PICK-UP
-
138360056-25 TUBING, CONVOLUTED (SVC)TUBING, CONVOLUTED (SVC)
-
142411709 ASM., RCA POWER PLUG W/COVER, DCASM., RCA POWER PLUG W/COVER, DC
-
154010638 RECEPTACLE, POD MOUNT, 12VRECEPTACLE, POD MOUNT, 12V
