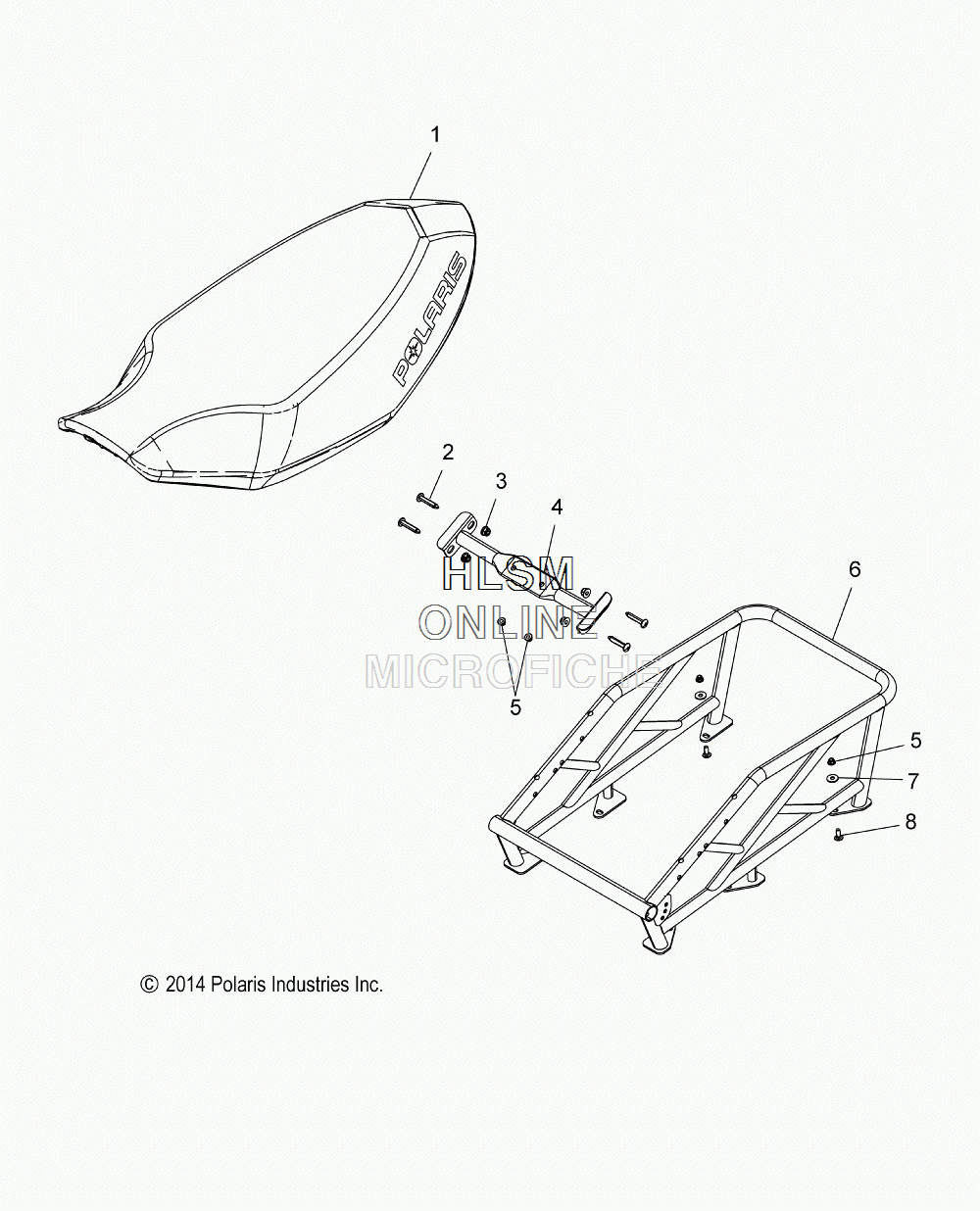

SEAT W/ REAR RACK для Polaris 600 INDY VOYAGEUR INTL 144 [S15CS6GEL] - 2015 года выпуска`
-
№АртикулНазвание
-
12686102 ASM., SEAT, BLACKASM., SEAT, BLACK
-
12685671 ASM., SEAT COVERASM., SEAT COVER
-
27518235 SCREWSCREW
-
37542343 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
41017710-067 MOUNT, SEATMOUNT, SEAT
-
57547453 NUTNUT
-
61019591 RACK, REAR, BLACKRACK, REAR, BLACK
-
77555935 WASHERWASHER
-
87518994 BOLT, CARRIAGEBOLT, CARRIAGE
Все узлы модели:
- AIR INTAKE SYSTEM
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SENSORS AND SWITCHES
- ELECTRICAL - WIRE HARNESS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDERS W/ SIDE PANELS
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/VENT
- JACKSHAFT ASSEMBLY
- NOSEPAN ASSEMBLY
- OIL BOTTLE ASSEMBLY
- OIL PUMP W/LINES
- REED VALVE W/THROTTLE BODY ADAPTOR
- • SEAT W/ REAR RACK
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- SUSPENSION - FRONT SHOCK TRACK [7043048]
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK [7043047]
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- SUSPENSION - SWAYBAR
- THROTTLE BODY ASSEMBLY W/RAIL AND LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WATER PUMP
- WINDSHIELD
