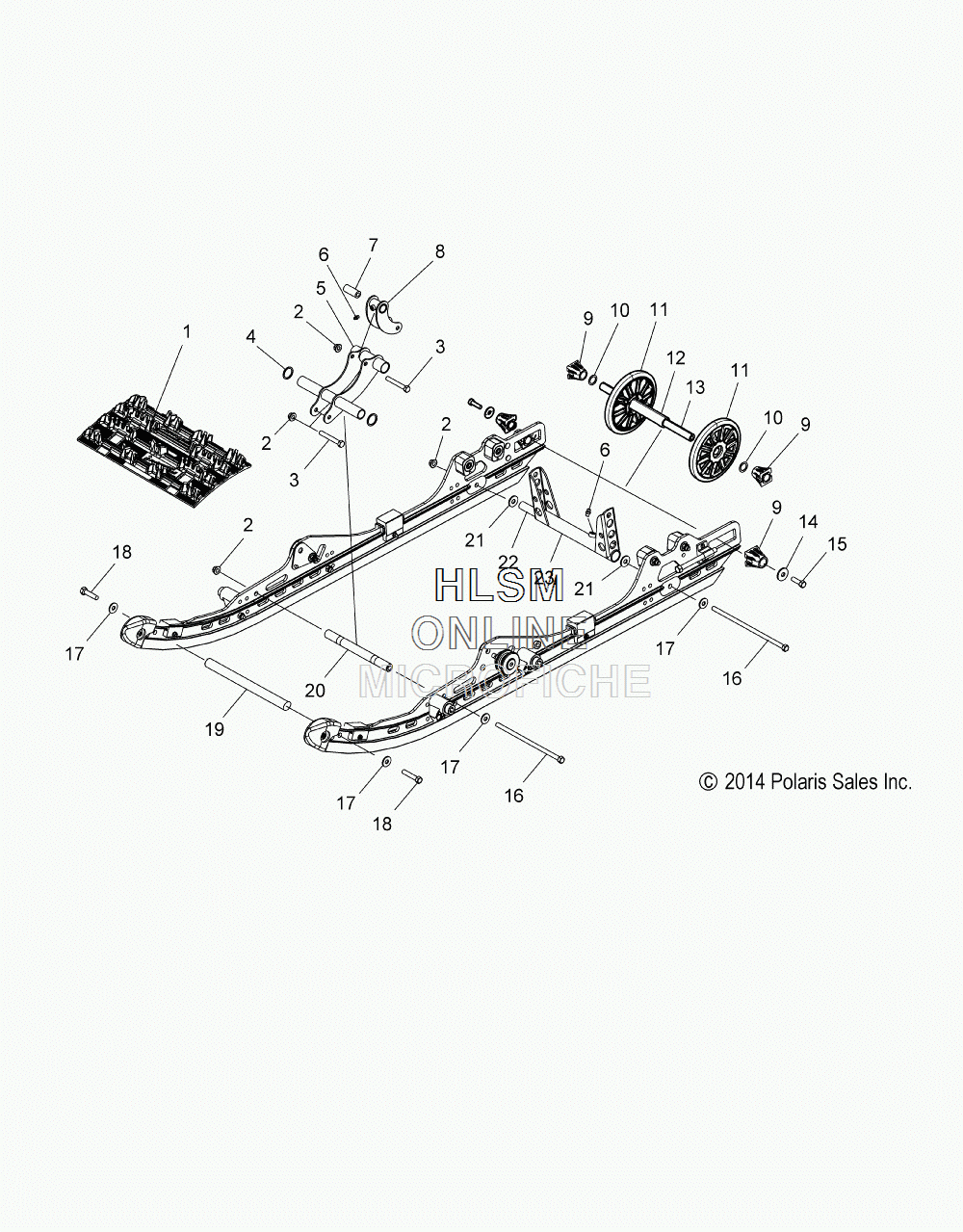

SUSPENSION - REAR W/ TRACK- [INDY] для Polaris 600 INDY SP INTL [S15CB6] - 2015 года выпуска`
-
№АртикулНазвание
-
15412281 TRACK, .91 INCH SHOCKWAVE (INDY)TRACK, .91 INCH SHOCKWAVE (INDY)
-
12877377 KIT, TRACK, 1.352 INCH COBRA (INDY INTL)KIT, TRACK, 1.352 INCH COBRA (INDY INTL)
-
15222840 CLIP, GUIDECLIP, GUIDE
-
27547263 NUT, NYLOKNUT, NYLOK
-
37515417 SCREWSCREW
-
47556509 BUSHINGBUSHING
-
51543124-329 BRACKET, H, BLACKBRACKET, H, BLACK
-
67080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
75337829 SLEEVE, SHOCK PIVOTSLEEVE, SHOCK PIVOT
-
81543125-329 PIVOT, SHOCKPIVOT, SHOCK
-
95432535 SPACER, IDLERSPACER, IDLER
-
107555918 BUSHINGBUSHING
-
111590459 ASM., WHEEL, SPOKE, 7.25 INCHASM., WHEEL, SPOKE, 7.25 INCH
-
117710444 RING, RETAININGRING, RETAINING
-
113514384 BEARINGBEARING
-
125333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
135335232 SHAFT, IDLERSHAFT, IDLER
-
147556130 WASHERWASHER
-
157517731 BOLTBOLT
-
167517921 SCREWSCREW
-
177556188 WASHER, FLATWASHER, FLAT
-
187518005 SCREWSCREW
-
195134078 SHAFTSHAFT
-
205134517 SHAFTSHAFT
-
217555893 WASHER, FLATWASHER, FLAT
-
225333404 SHAFTSHAFT
-
231541928-067 ARM, PIVOT, REAR, BLACKARM, PIVOT, REAR, BLACK
