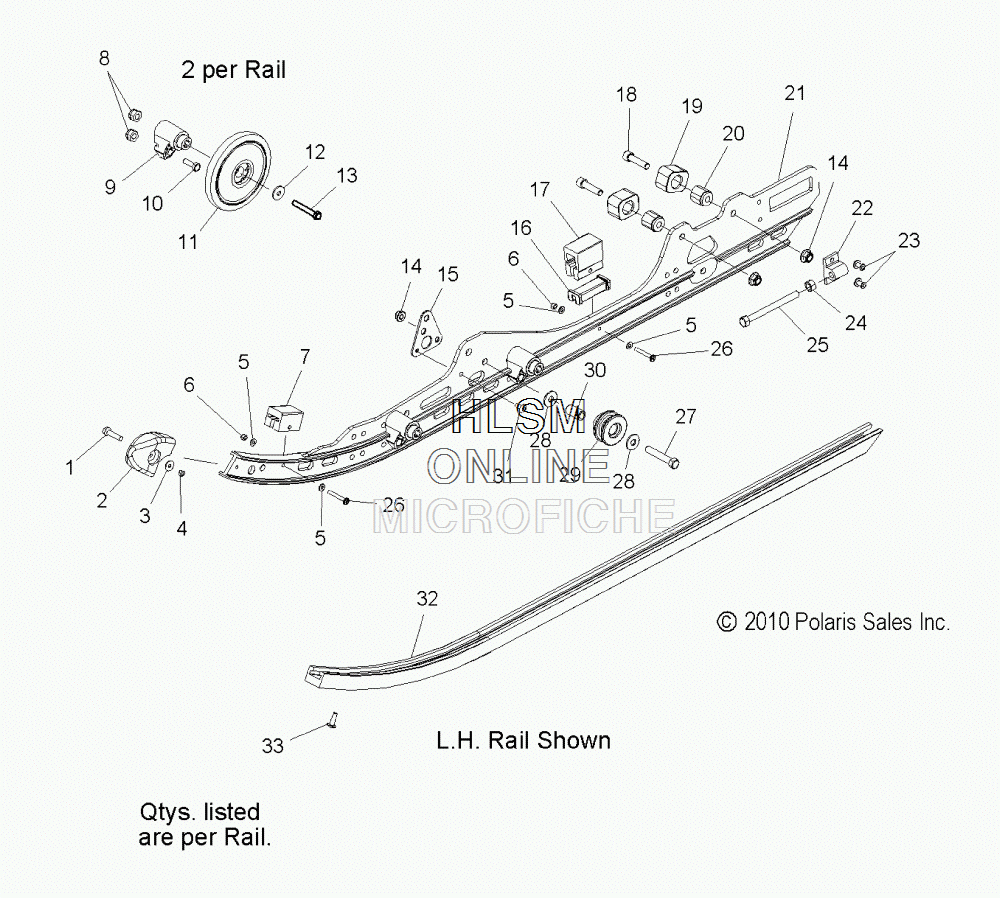

SUSPENSION - RAIL MOUNTING для Polaris 600 INDY SP INTL [S15CB6] - 2015 года выпуска`
-
№АртикулНазвание
-
17518993 SCREWSCREW
-
25438374 CAP, RAIL TIPCAP, RAIL TIP
-
37556064 WASHER, FLATWASHER, FLAT
-
47547339 NUTNUT
-
57555783 WASHER, FLATWASHER, FLAT
-
67541925 NUT, NYLOKNUT, NYLOK
-
75521499 BUMPER, JOUNCE, FRONTBUMPER, JOUNCE, FRONT
-
87542324 NUT, NYLOKNUT, NYLOK
-
95631446 BLOCK, MOUNT, WHEELBLOCK, MOUNT, WHEEL
-
107515317 BOLTBOLT
-
111590419-070 ASM., WHEEL, BLACKASM., WHEEL, BLACK
-
113514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
117710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
127556387 WASHER, SPRINGWASHER, SPRING
-
137515346 SCREWSCREW
-
147547263 NUT, NYLOKNUT, NYLOK
-
155248414 BRACKET, RAIL REINFORCEMENTBRACKET, RAIL REINFORCEMENT
-
165432946 LINER, BUMPERLINER, BUMPER
-
175521498 BUMPER, JOUNCE, REARBUMPER, JOUNCE, REAR
-
187515537 BOLTBOLT
-
195410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
205131113 MOUNT, BUMPERMOUNT, BUMPER
-
211542790 ASM., RAIL, LEFT HAND (INCL. 1-7,16,17,22,23,26) (INDY, INDY SP)ASM., RAIL, LEFT HAND (INCL. 1-7,16,17,22,23,26) (INDY, INDY SP)
-
211542791 ASM., RAIL, RIGHT HAND (INCL. 1-7,16,17,22,23,26) (INDY, INDY SP)ASM., RAIL, RIGHT HAND (INCL. 1-7,16,17,22,23,26) (INDY, INDY SP)
-
225130530 BLOCK, IDLER BOLT ADJUSTINGBLOCK, IDLER BOLT ADJUSTING
-
237621501 RIVETRIVET
-
247542404 NUTNUT
-
257517227 SCREWSCREW
-
267510504 SCREWSCREW
-
277515415 SCREWSCREW
-
287555983 WASHERWASHER
-
295432982 ROLLER, SPRINGROLLER, SPRING
-
305135933 BUSHINGBUSHING
-
317661845 RIVETRIVET
-
325521633-309 SLIDER (INDY, INDY SP)SLIDER (INDY, INDY SP)
-
337515199 SCREWSCREW
