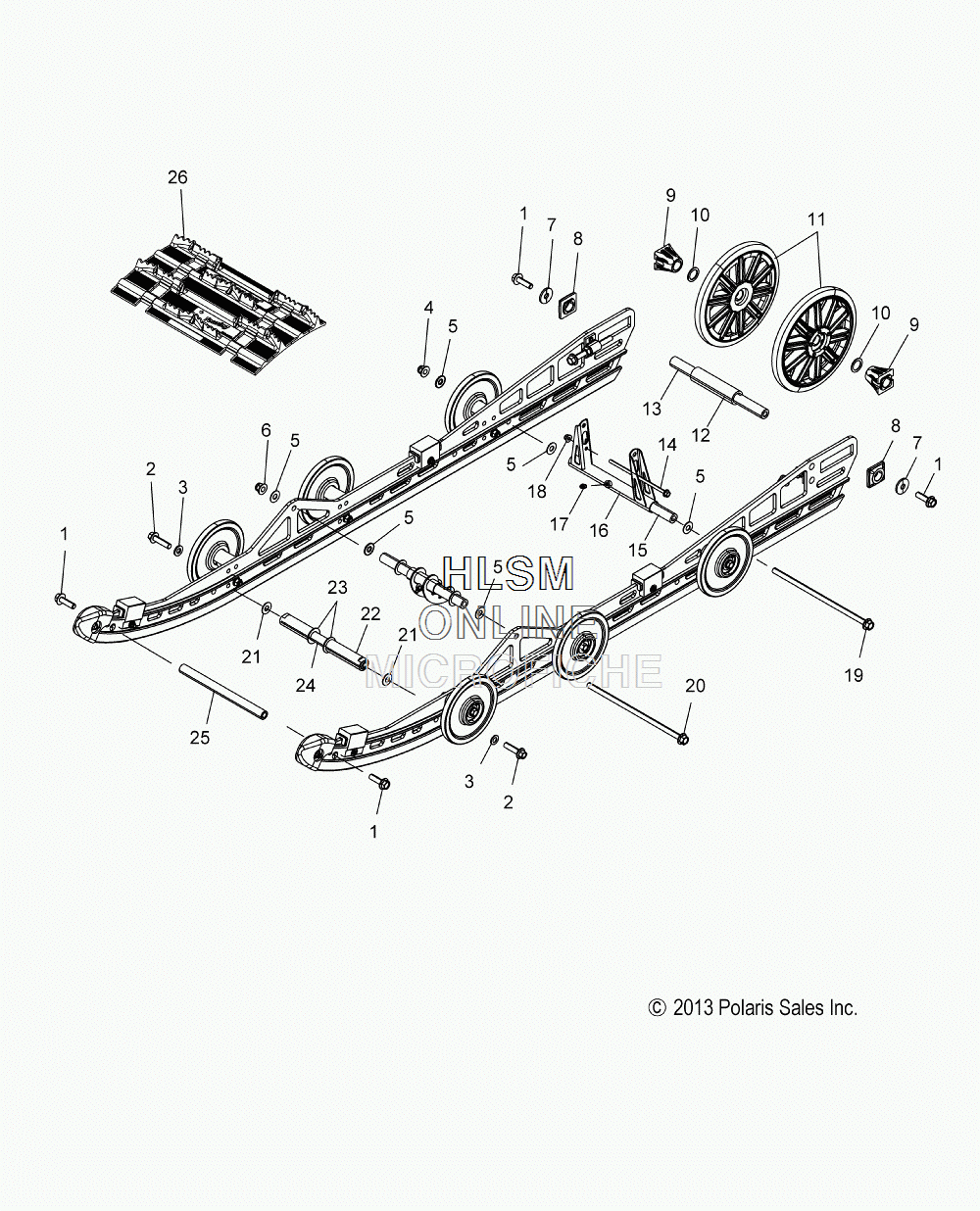

SUSPENSION - REAR W/ TRACK для Polaris 550 INDY LXT LE [S15CT5BSM] - 2015 года выпуска`
-
№АртикулНазвание
-
17518957 SCREWSCREW
-
27519216 SCREWSCREW
-
37556042 WASHERWASHER
-
47547333 NUTNUT
-
57556545 WASHERWASHER
-
67547423 NUT, NYLOCNUT, NYLOC
-
77556490 WASHER, SPRINGWASHER, SPRING
-
85436496 SPACER, IDLERSPACER, IDLER
-
95432535 SPACER, IDLERSPACER, IDLER
-
107555918 BUSHINGBUSHING
-
111590499-070 ASM., WHEEL, BLACKASM., WHEEL, BLACK
-
117710444 RING, RETAINING (1 PER WHEEL)RING, RETAINING (1 PER WHEEL)
-
113514384 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
125333283 SPACER, IDLER, CENTERSPACER, IDLER, CENTER
-
135137224 SHAFT, IDLERSHAFT, IDLER
-
147519201 BOLTBOLT
-
155137418 SHAFT, CROSSSHAFT, CROSS
-
161542906-329 ARM, REAR PIVOT, BLACKARM, REAR PIVOT, BLACK
-
177080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
187547339 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
197519198 SCREWSCREW
-
207519327 SCREWSCREW
-
217555832 WASHERWASHER
-
225336325 SPACER, SHOCK CENTERINGSPACER, SHOCK CENTERING
-
237556210 WASHERWASHER
-
245137312 SHAFTSHAFT
-
255136572 SHAFTSHAFT
-
265414190 TRACK, 144 X 1.0, ENERGYTRACK, 144 X 1.0, ENERGY
-
265251274 CLIP, GUIDECLIP, GUIDE
-
265251273 CLIP, SLIDECLIP, SLIDE
