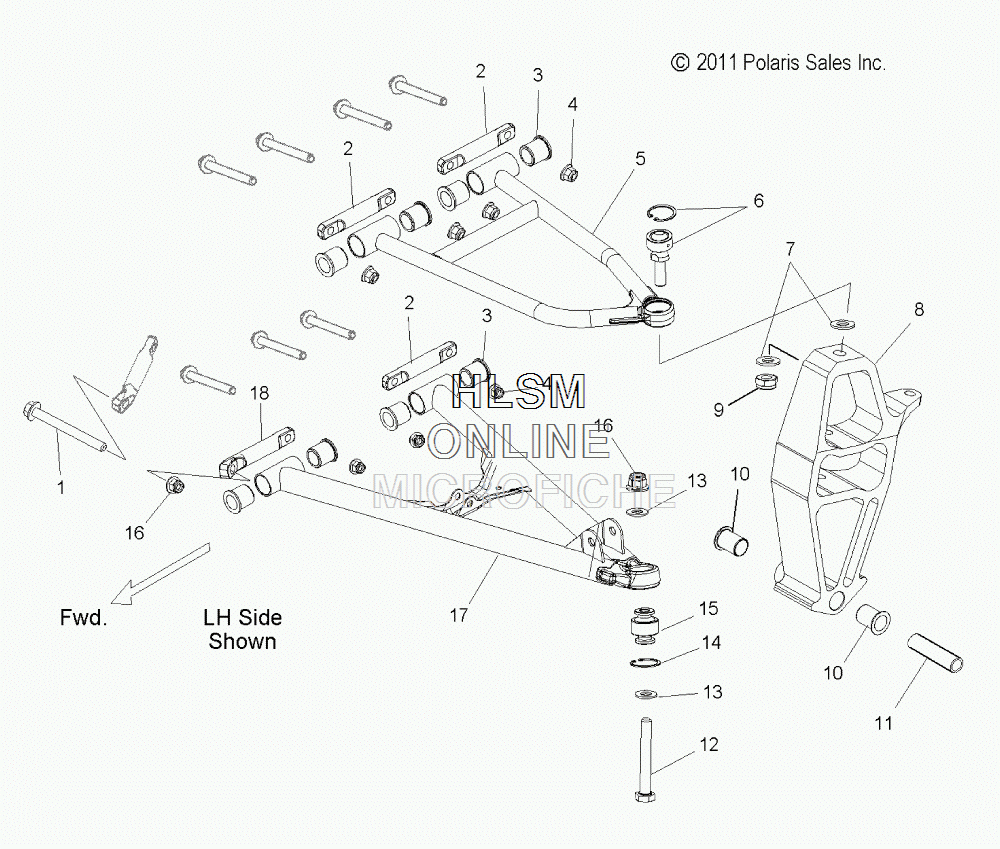

CONTROL ARMS W/SPINDLE для Polaris 550 INDY ES [S15CB5BSL] - 2015 года выпуска`
-
№АртикулНазвание
-
17518917 SCREWSCREW
-
25137700 SHAFT, PIVOTSHAFT, PIVOT
-
35438792 BUSHING, PIVOTBUSHING, PIVOT
-
47547332 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
52204665-067 KIT, UPPER CONTROL ARM, LEFT HAND, BLACKKIT, UPPER CONTROL ARM, LEFT HAND, BLACK
-
52204666-067 KIT, UPPER CONTROL ARM, RIGHT HAND, BLACKKIT, UPPER CONTROL ARM, RIGHT HAND, BLACK
-
67061179 BEARING, SPHERICAL, UPPER CONTROL ARMBEARING, SPHERICAL, UPPER CONTROL ARM
-
67710642 RING, RETAININGRING, RETAINING
-
77556212 WASHERWASHER
-
81823875 ASM., SPINDLE, LEFT HANDASM., SPINDLE, LEFT HAND
-
81823876 ASM., SPINDLE, RIGHT HANDASM., SPINDLE, RIGHT HAND
-
97547464 NUT, NYLOKNUT, NYLOK
-
105438460 BUSHING, SKI PIVOTBUSHING, SKI PIVOT
-
115136910 BUSHINGBUSHING
-
127519015 SCREWSCREW
-
137555806 WASHERWASHER
-
147710539 RING, RETAININGRING, RETAINING
-
152204229 KIT, SPHERICAL BEARING, LOWERKIT, SPHERICAL BEARING, LOWER
-
167547423 NUT, ZOD, NYLOKNUT, ZOD, NYLOK
-
172204663-067 KIT, LOWER CONTROL ARM, LEFT HAND, BLACKKIT, LOWER CONTROL ARM, LEFT HAND, BLACK
-
172204664-067 KIT, LOWER CONTROL ARM, RIGHT HAND, BLACKKIT, LOWER CONTROL ARM, RIGHT HAND, BLACK
-
185137701 SHAFT, PIVOT, LOWER CONTROL ARM, FRONTSHAFT, PIVOT, LOWER CONTROL ARM, FRONT
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BATTERY BOX
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- • CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY W/DUCT
- JACKSHAFT ASSEMBLY
- NOSEPAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- RECOIL STARTER W/BLOWER HOUSING
- SEAT ASSEMBLY
- SHOCK - FRONT
- SKI ASSEMBLY
- SPEEDOMETER ASSY.
- STARTING MOTOR
- STEERING - H-BAR- STEERING POST- AND TIE RODS
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
