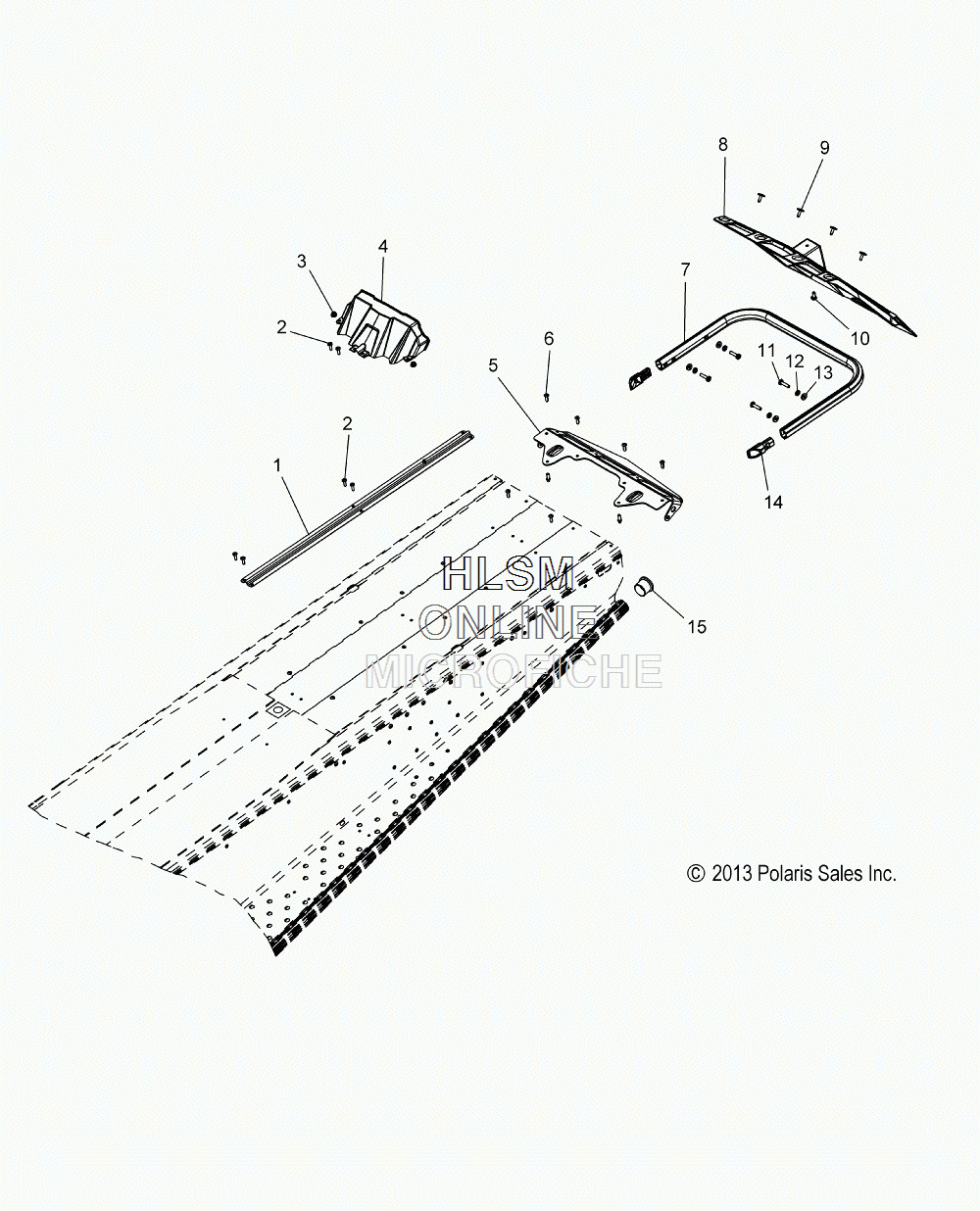

BUMPER - REAR W/SNOWFLAP AND TAILLIGHT для Polaris 550 INDY 144 ES [S15CR5BSL] - 2015 года выпуска`
-
№АртикулНазвание
-
15251057 COVER, TAILLIGHT HARNESSCOVER, TAILLIGHT HARNESS
-
27661637 RIVETRIVET
-
37547427 NUTNUT
-
45438024-070 COVER, TAILLIGHT, BLACKCOVER, TAILLIGHT, BLACK
-
55255205 CLOSEOFF, REAR TUNNEL, CONV.CLOSEOFF, REAR TUNNEL, CONV.
-
67661973 RIVETRIVET
-
72634228-309 ASM., BUMPER, REARASM., BUMPER, REAR
-
85438788-070 FLAP, SNOW, BLACKFLAP, SNOW, BLACK
-
97621467 RIVETRIVET
-
107519092 SCREWSCREW
-
117519248 SCREWSCREW
-
127552801 WASHER, LOCKWASHER, LOCK
-
137556588 WASHERWASHER
-
145439655 PLUG, BUMPERPLUG, BUMPER
-
155432831 PLUG, END CAP, RIBBEDPLUG, END CAP, RIBBED
Все узлы модели:
- AIR BOX
- AIR INLET AND OUTLET DUCTS
- BATTERY BOX
- BRAKE ASSEMBLY
- BULKHEAD ASSEMBLY
- BUMPER - FRONT
- • BUMPER - REAR W/SNOWFLAP AND TAILLIGHT
- CARBURETOR W/CHOKE
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/ OVER STRUCTURE
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/FOOTREST
- CONSOLE
- CONTROL ARMS W/SPINDLE
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - SWITCHES AND COMPONENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FENDERS W/ SIDE PANELS
- FUEL PUMP
- FUEL PUMP W/LINES
- FUEL TANK
- HEADLIGHT AND TAILLIGHT
- HOOD - FOAM/SEAL
- HOOD ASSEMBLY W/DUCT
- JACKSHAFT ASSEMBLY
- NOSEPAN ASSEMBLY
- OIL PUMP ASSEMBLY
- OIL TANK ASSEMBLY
- RECOIL STARTER W/BLOWER HOUSING
- SEAT ASSEMBLY
- SKI ASSEMBLY
- SPEEDOMETER ASSY.
- STARTING MOTOR
- STEERING - H-BAR- STEERING POST- AND TIE RODS
- SUSPENSION - FRONT SHOCK TRACK- (7043995)
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK- (7043903)
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR SHOCK TRACK- (7043994)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR W/ TRACK
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/OWNERS MANUAL
- WINDSHIELD
- WIRING HARNESS
