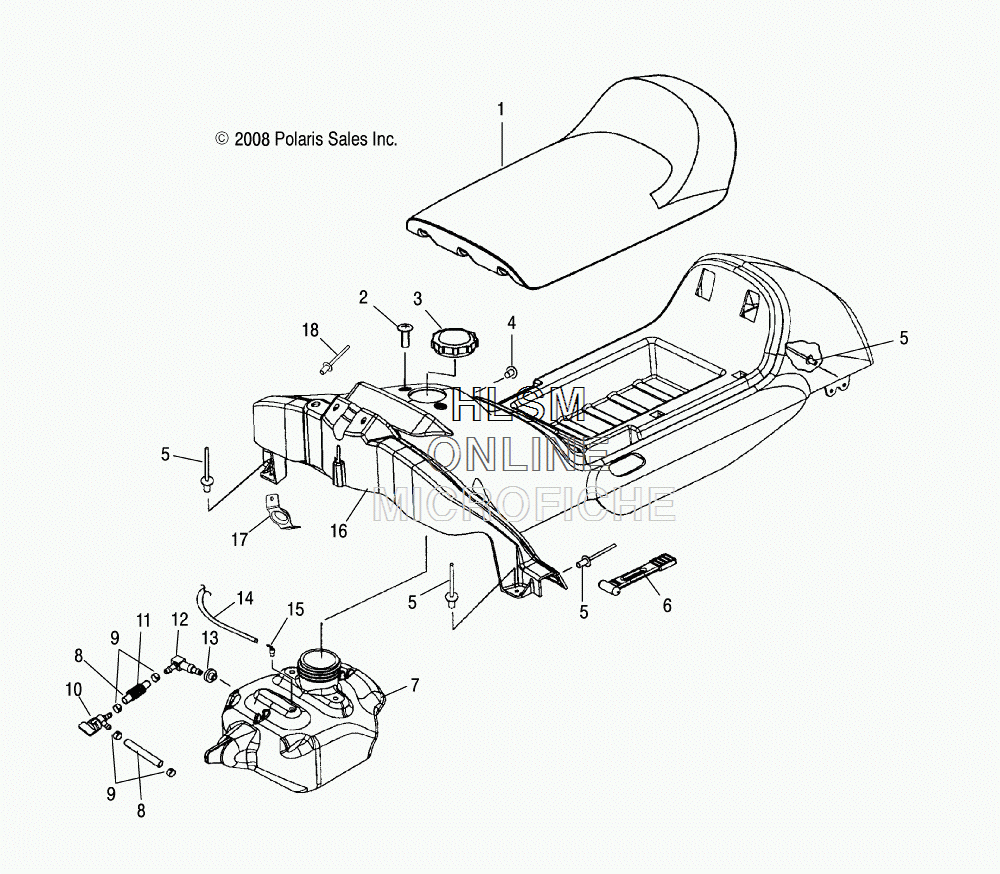

SEAT W/ FUEL TANK & CONSOLE для Polaris 120 INDY [S15WB1ASA] - 2015 года выпуска`
-
№АртикулНазвание
-
12686067 ASM., SEAT CUSHION (INCL. COVER)ASM., SEAT CUSHION (INCL. COVER)
-
12686068 ASM., SEAT COVERASM., SEAT COVER
-
27515148 SCREWSCREW
-
35450389 CAP, GAS TANKCAP, GAS TANK
-
47081085 NUT, U-TYPENUT, U-TYPE
-
57621472 RIVETRIVET
-
65433150 STRAPSTRAP
-
72521256 ASM., GAS TANK (INCL. 12,13)ASM., GAS TANK (INCL. 12,13)
-
88450117-250 HOSE, FUELHOSE, FUEL
-
97080003 CLAMP, HOSE, REDCLAMP, HOSE, RED
-
107052249 VALVE, FUEL, 90 DEGREEVALVE, FUEL, 90 DEGREE
-
118360052-305 CONDUIT, CONVOLUTEDCONDUIT, CONVOLUTED
-
127052348 FITTING, OUTLET, 90 DEGREEFITTING, OUTLET, 90 DEGREE
-
137052362 GROMMET, FLANGEDGROMMET, FLANGED
-
148450061-600 LINE, OILLINE, OIL
-
157052095 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
162632154-070 ASM., CONSOLE, SEAT/TANK COVERASM., CONSOLE, SEAT/TANK COVER
-
175243049 GUIDE, RECOILGUIDE, RECOIL
-
187621330 RIVETRIVET
Все узлы модели:
- AIR INTAKE SYSTEM
- BUMPER - FRONT W/ NOSEPAN
- CARBURETOR W/CHOKE
- CLUTCH ASSEMBLY
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- DECALS
- DRIVE SHAFT ASSY.
- ELECTRICAL - IGNITION SYSTEM
- ELECTRICAL - INSTRUMENTS
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- GOVERNOR
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD ASSEMBLY W/ WINDSHIELD
- OWNER'S MANUAL W/ TOOL KIT
- RECOIL STARTER W/ BLOWER HOUSING
- • SEAT W/ FUEL TANK & CONSOLE
- SKI ASSEMBLY
- STEERING - LOWER
- SUSPENSION - FRONT
- SUSPENSION - REAR
- TUNNEL W/BULKHEAD
