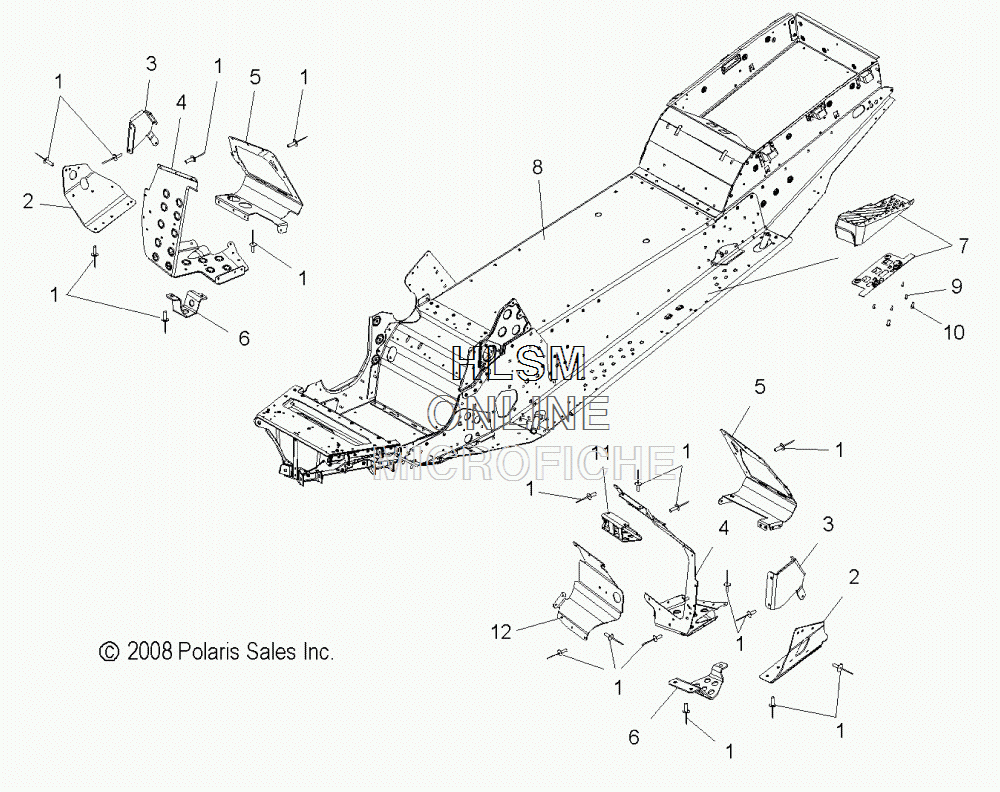

CHASSIS ASSEMBLY W/FOOTRESTS для Polaris IQ TURBO LXT [S14PT7FSL] - 2014 года выпуска

  • №
    Артикул
    Название
  • 1
    7661637 RIVET
    RIVET
  • 2
    5248807 SUPPORT, FOOTREST LOWER, LEFT HAND
    SUPPORT, FOOTREST LOWER, LEFT HAND
  • 2
    5248808 SUPPORT, FOOTREST LOWER, RIGHT HAND
    SUPPORT, FOOTREST LOWER, RIGHT HAND
  • 3
    5248401 SUPPORT, FOOTREST BUMPER, LEFT HAND
    SUPPORT, FOOTREST BUMPER, LEFT HAND
  • 3
    5248402 SUPPORT, FOOTREST BUMPER, RIGHT HAND
    SUPPORT, FOOTREST BUMPER, RIGHT HAND
  • 4
    1015301 ASM., FOOTREST W/STUD, LEFT HAND
    ASM., FOOTREST W/STUD, LEFT HAND
  • 4
    1016004 ASM., FOOTREST W/STUD, RIGHT HAND
    ASM., FOOTREST W/STUD, RIGHT HAND
  • 5
    5250948 TOE CLIP, LEFT HAND
    TOE CLIP, LEFT HAND
  • 5
    5248477 TOE CLIP, RIGHT HAND
    TOE CLIP, RIGHT HAND
  • 6
    5248403 LEG SUPPORT, LEFT HAND
    LEG SUPPORT, LEFT HAND
  • 6
    5248945 LEG SUPPORT, RIGHT HAND
    LEG SUPPORT, RIGHT HAND
  • 7
    1015045 ASM., FOOTREST, PASSENGER, LEFT HAND (INCL. 9)
    ASM., FOOTREST, PASSENGER, LEFT HAND (INCL. 9)
  • 7
    1015046 ASM., FOOTREST, PASSENGER, RIGHT HAND (INCL. 9)
    ASM., FOOTREST, PASSENGER, RIGHT HAND (INCL. 9)
  • 8
    1015977-309 ASM., CHASSIS, NATURAL
    ASM., CHASSIS, NATURAL
  • 9
    7512076 SCREW
    SCREW
  • 10
    7515133 BOLT
    BOLT
  • 11
    5249078 MOUNT, PLENUM
    MOUNT, PLENUM
  • 12
    5247420 BRACKET, CLUTCH GUARD
    BRACKET, CLUTCH GUARD
