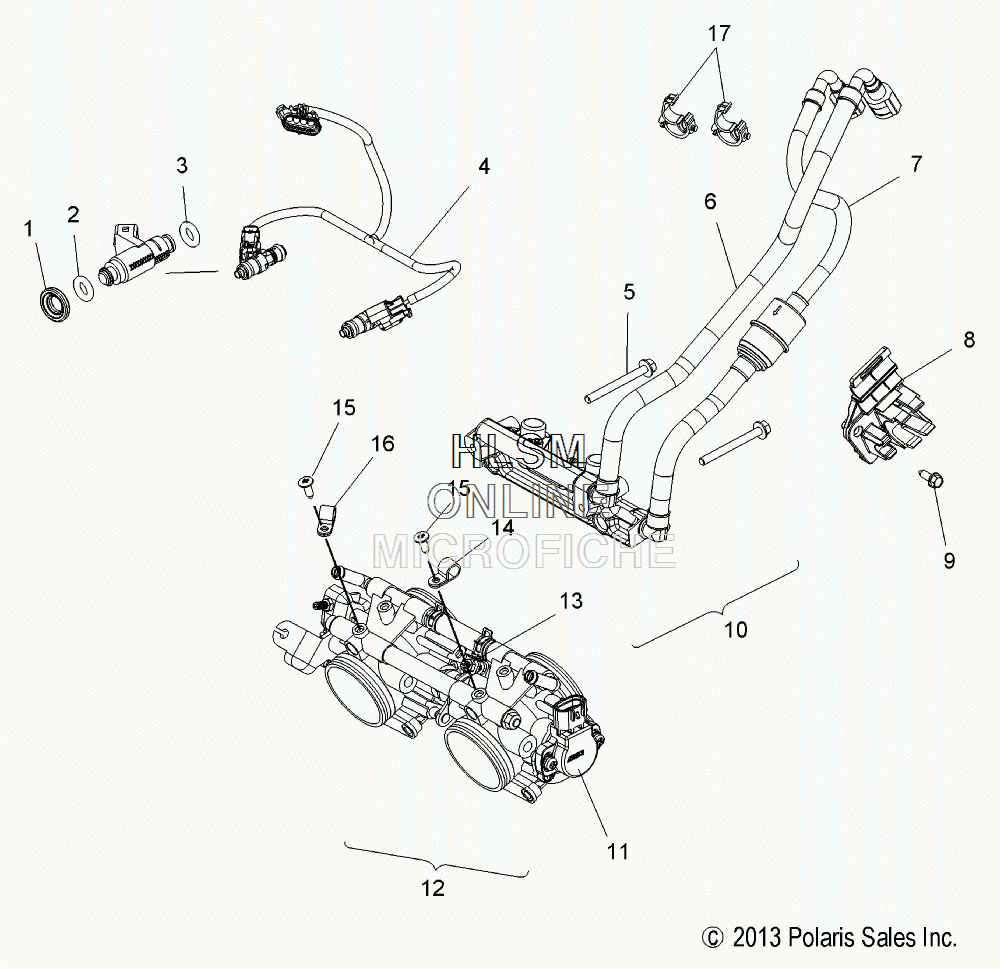

THROTTLE BODY ASSEMBLY W/RAIL AND LINES для Polaris 800 SWITCHBACK [S14BR8GSA] - 2014 года выпуска
‹-+›
-
№АртикулНазвание
-
15436287 BUSHING, RUBBER (GREEN) (1 PER INJECTOR)BUSHING, RUBBER (GREEN) (1 PER INJECTOR)
-
25412891 O-RING (BROWN) (1 PER INJECTOR)O-RING (BROWN) (1 PER INJECTOR)
-
31500198 O-RING (BLACK) (1 PER INJECTOR)O-RING (BLACK) (1 PER INJECTOR)
-
44014242 HARNESS-LE, W/INJ.HARNESS-LE, W/INJ.
-
57519244 SCREWSCREW
-
62521193 ASM., FUEL LINE RETURNASM., FUEL LINE RETURN
-
72521192 ASM., FUEL LINE SUPPLYASM., FUEL LINE SUPPLY
-
81204261 ASM., FUEL FILTER RETAINERASM., FUEL FILTER RETAINER
-
85812996 PAD, FUEL FILTERPAD, FUEL FILTER
-
97512098 SCREWSCREW
-
102521143 ASM., FUEL RAIL, LE-13, 2 INJ. (INCL. FUEL RAIL, DAMPERS, CLAMPS, SCREWS)ASM., FUEL RAIL, LE-13, 2 INJ. (INCL. FUEL RAIL, DAMPERS, CLAMPS, SCREWS)
-
102521144 DAMPER, FUELDAMPER, FUEL
-
105254413 CLAMP, DAMPERCLAMP, DAMPER
-
105254414 CLIP, HOSECLIP, HOSE
-
107519250 SCREWSCREW
-
121204815 ASM., THROTTLE BODY, 800 F-LEADASM., THROTTLE BODY, 800 F-LEAD
-
133131732 NUTNUT
-
133131731 SCREWSCREW
-
147081837 CLAMP, 3/8CLAMP, 3/8
-
157517847 SCREWSCREW
-
167080539 CLAMP, 1/4CLAMP, 1/4
-
177081871 CLIP, HARNESS, INTERLOCKCLIP, HARNESS, INTERLOCK
